MUFFLER

DL650A VSTROM 2011 (L1) USA (E03)

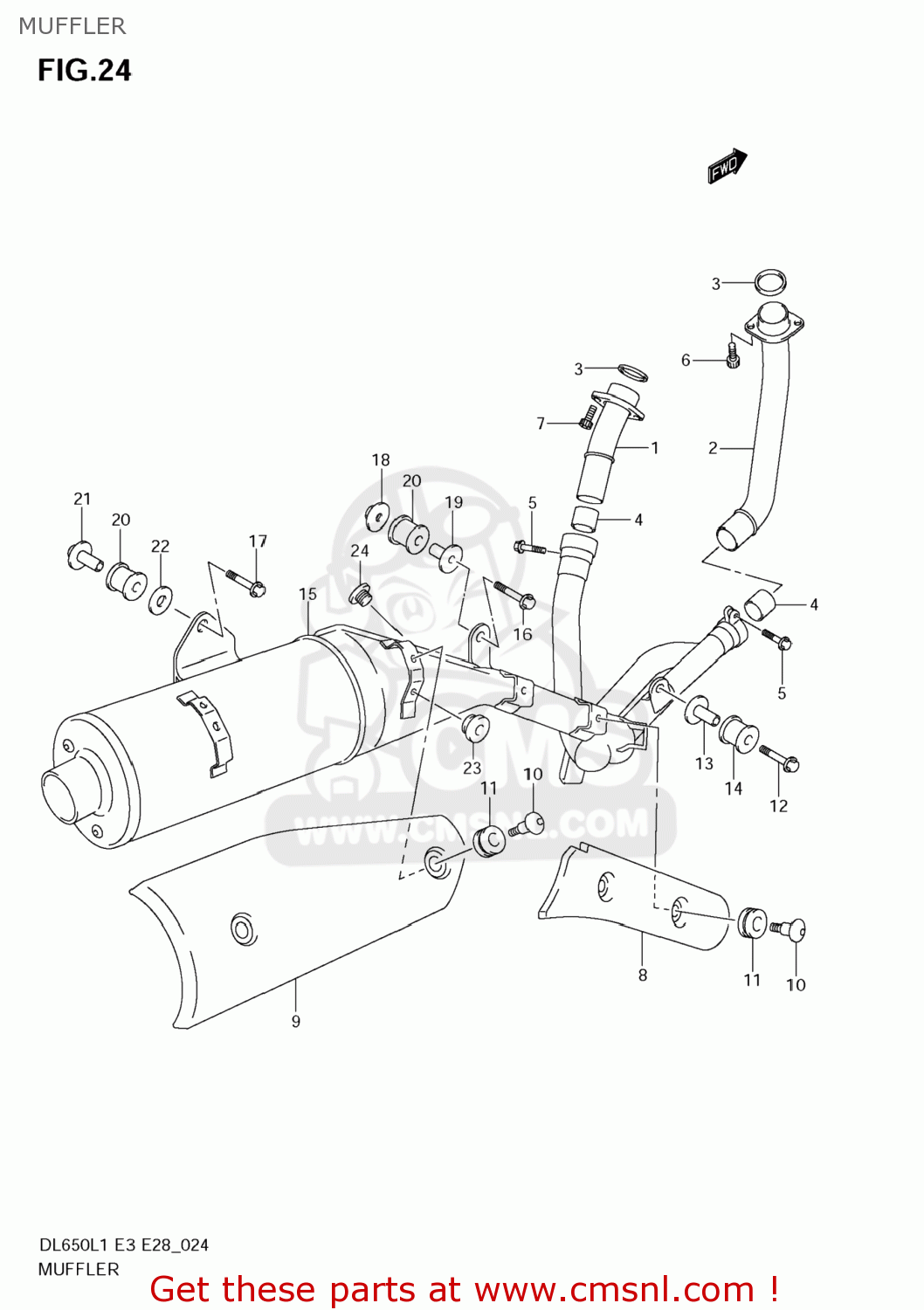

Muffler diagram DL650A VSTROM 2011 (L1) USA (E03)

MUFFLER DL650A VSTROM 2011 (L1) USA (E03)

MUFFLER DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1415027G00
ref: 1

PIPE,EXHAUST RR

€ 54.50

2

1416017G00
ref: 2

PIPE,EXHAUST FR

€ 140.50

3

1418122D01
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 9.00

4

1477132E00
ref: 4

CONNECTOR,MUFFLER

€ 12.50

5

0910308365
ref: 5

BOLT(8X35)

€ 3.50

6

0910608165
ref: 6

BOLT(8X25)

€ 5.00

7

071300825A
ref: 7

BOLT

€ 3.00

8

1477127G10
ref: 8

COVER,MUFFLER FR

€ 39.00

9-1

1478127G10YKV
ref: 9-1

COVER,MUFFLER

€ 164.00

9-2

1478127G10YYF
ref: 9-2

COVER,MUFFLER

€ 180.50

10

0913906126
ref: 10

SCREW(6X20)

€ 4.00

11

0932008070
ref: 11

CUSHION

€ 8.50

12

0911808152A05
ref: 12

BOLT(8X45)

€ 5.00

13

0918008152
ref: 13

SPACER(8.6X12X24.2)

€ 6.00

14

0932012048
ref: 14

CUSHION

€ 5.00

15

1430527G60H01
ref: 15

MUFFLER

€ 1,963.50

16

015500845A
ref: 16

BOLT

€ 3.00

17

0910308358
ref: 17

BOLT(8X45)

€ 3.50

18

1441427G00
ref: 18

NUT,MUFFLER SUPPORT FR

€ 4.00

19

0918008156
ref: 19

SPACER(8.6X12X27.1)

€ 6.50

20

0932012049
ref: 20

CUSHION

€ 9.00

21

1441406G00
ref: 21

NUT,MUFFLER SUPPORT

€ 7.00

22

0916008146
ref: 22

WASHER(8.5X33X1.5)

€ 3.00

23

0932110018
ref: 23

CUSHION

€ 5.00

24

0924818011
ref: 24

PLUG(18X8)

€ 4.00
