FRAME COVER

DL650A VSTROM 2011 (L1) USA (E03)

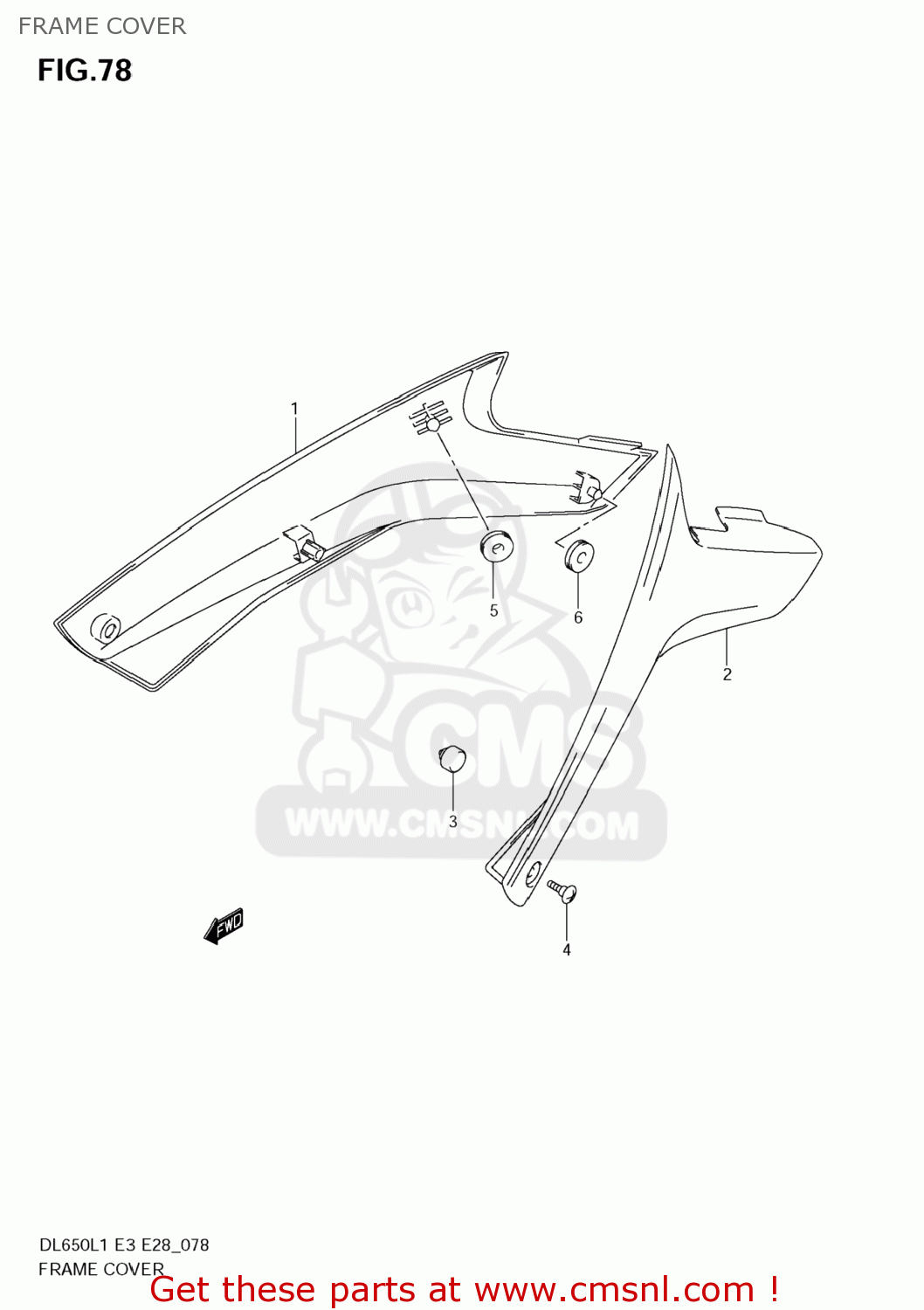

Frame cover diagram DL650A VSTROM 2011 (L1) USA (E03)

FRAME COVER DL650A VSTROM 2011 (L1) USA (E03)

FRAME COVER DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

4711106G00291
ref: 1

COVER,FRAME,R(BLACK)

€ 58.50

2

4721106G00291
ref: 2

COVER,FRAME,L(BLACK)

€ 58.50

3

0932110002
ref: 3

CUSHION(11.5X22X20)

€ 2.00

4

0913906107
ref: 4

SCREW(6X16)

€ 4.00

5

0932008018
ref: 5

CUSHION

€ 4.00

6

0932008028
ref: 6

CUSHION

€ 2.50
