REAR CYLINDER HEAD
DL650A VSTROM 2011 (L1) USA (E03)

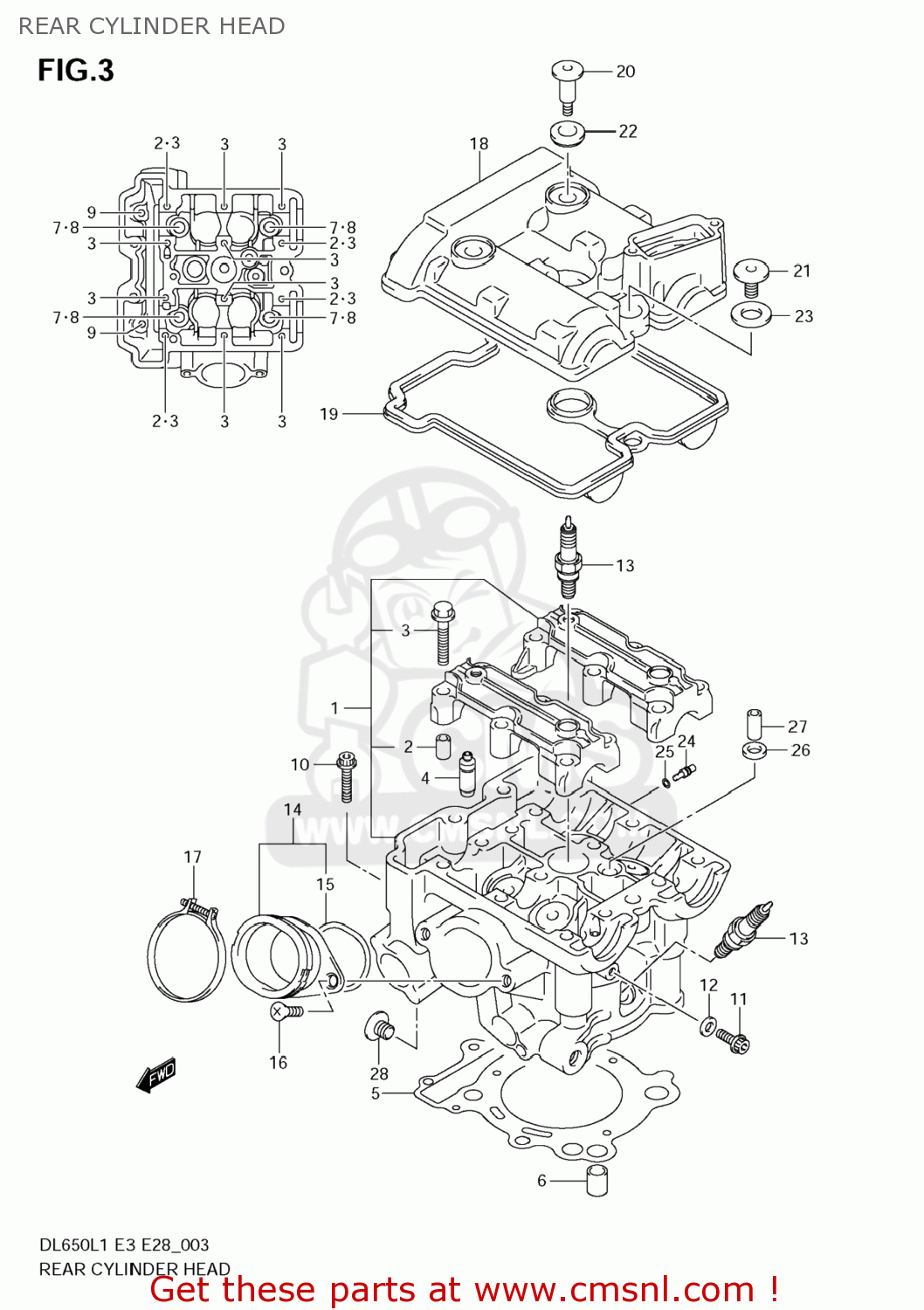

Rear cylinder head diagram DL650A VSTROM 2011 (L1) USA (E03)
REAR CYLINDER HEAD DL650A VSTROM 2011 (L1) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1110317G20
ref: 1
HEAD ASSY,CYLINDER RR
€ 772.50
2
0920608001
ref: 2
PIN(6.2X8X11)
€ 2.00
3
0910306266
ref: 3
BOLT(6X40)
€ 2.50
4
1111518D72
ref: 4
GUIDE,VALVE
€ 18.50
5
1114120F00
ref: 5
GASKET,CYLINDER HEAD (NAS)
€ 31.50
6
0421113189
ref: 6
PIN
€ 2.50
7
0916010082
ref: 7
WASHER(10.5X19X2)
€ 2.00
8
0910310272
ref: 8
BOLT(10X160)
€ 14.00
9
0910306103
ref: 9
BOLT(6X70)
€ 2.50
10
071200640B
ref: 10
BOLT
€ 3.50
11
0910306222
ref: 11
BOLT(6X12)
€ 2.00
12
0916806023
ref: 12
GASKET(5.8X13X1.2) (NAS)
€ 2.00
13-1
0948200456
ref: 13-1
PLUG,SPARK(CR8E)
€ 7.00
13-2
0948200457
ref: 13-2
PLUG,SPARK(U24ESR-N)
€ 7.00
13-3
0948200458
ref: 13-3
PLUG,SPARK(NGK CR9E)
€ 8.50
13-3
0948200458
ref: 13-3
PLUG,SPARK(NGK CR9E)
€ 8.50
13-4
0948200459
ref: 13-4
PLUG,SPARK(U27ESR-N)
€ 8.50
13-4
0948200459
ref: 13-4
PLUG,SPARK(U27ESR-N)
€ 8.50
13-5
0948200516
ref: 13-5
PLUG,SPARK(CR7E)
€ 8.50
13-5
0948200516
ref: 13-5
PLUG,SPARK(CR7E)
€ 8.50
13-6
0948200515
ref: 13-6
PLUG,SPARK(U22ESR-N)
€ 8.50
13-6
0948200515
ref: 13-6
PLUG,SPARK(U22ESR-N)
€ 8.50
14
1310217G10
ref: 14
PIPE ASSY,INTAKE RR
€ 42.00
15
0928046006
ref: 15
O RING(D:2.4,ID:47X42)
€ 8.00
16
021220616B
ref: 16
SCREW
€ 2.00
17
0940262208
ref: 17
CLAMP
€ 6.00
18
1117217G00
ref: 18
COVER,CYLINDER HEAD RR
€ 165.00
19
1117319F01
ref: 19
GASKET,CYLINDER HEAD COVER (NAS)
€ 26.50
20
0910607009
ref: 20
BOLT(7X17.5)
€ 4.50
21
0910607010
ref: 21
BOLT(7X31)
€ 4.50
22
1119127E00
ref: 22
WASHER,CYL HEAD COVER
€ 4.50
23
1119213E00
ref: 23
CUSHION,HEAD COVER BOLT
€ 4.50
24
0949380005
ref: 24
JET(8)
€ 12.00
25
0928004004
ref: 25
O RING(D:1.2,ID:4)
€ 2.00
26
1118235F00
ref: 26
GASKET,2ND AIR PASSAGE (NAS)
€ 4.00
27
0920608007
ref: 27
PIN(6.2X8X16)
€ 2.50
28
1115127G00
ref: 28
CAP,ENGINE MOUNTING
€ 2.50
