HANDLE SWITCH

DL650A VSTROM 2011 (L1) USA (E03)

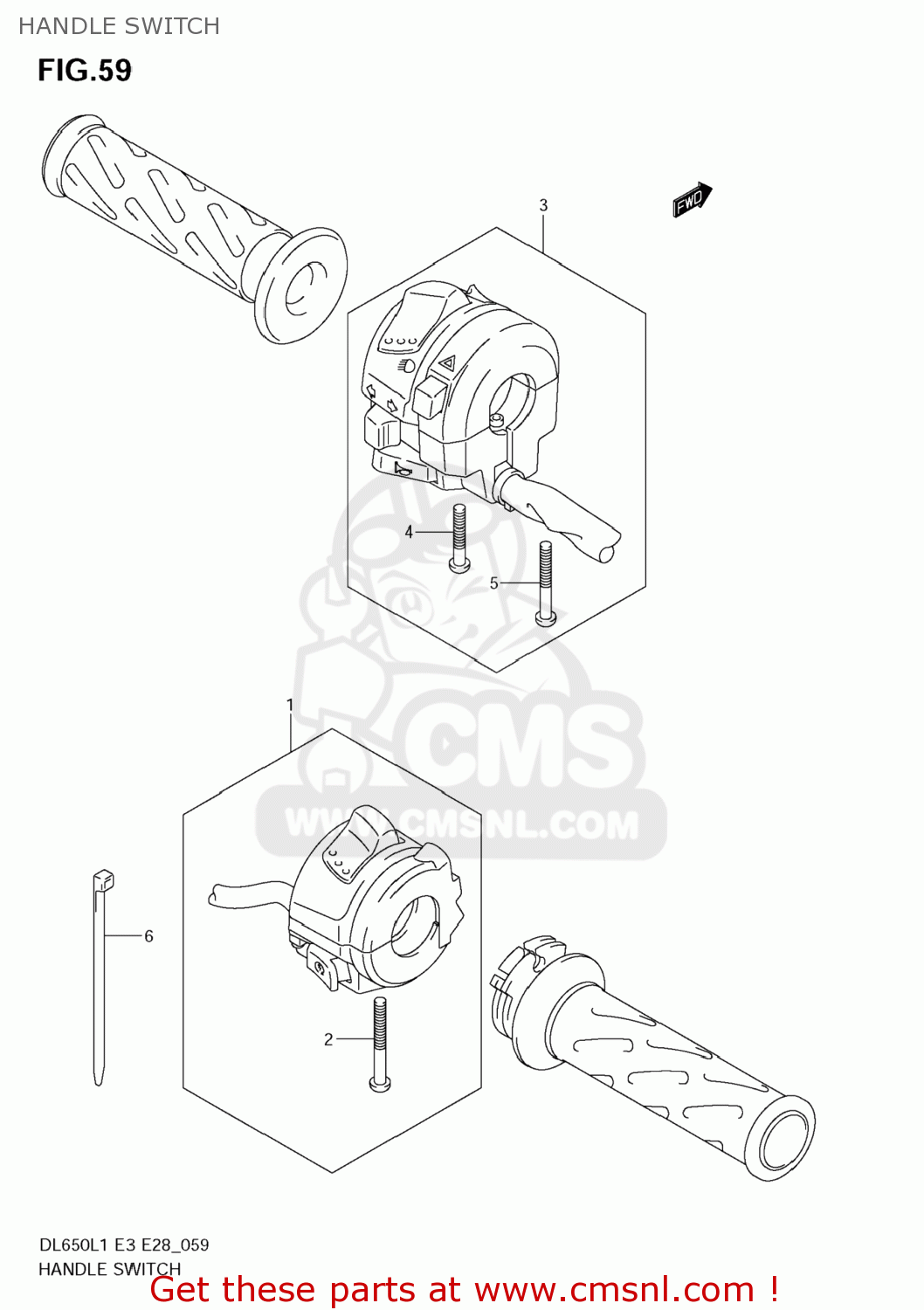

Handle switch diagram DL650A VSTROM 2011 (L1) USA (E03)

HANDLE SWITCH DL650A VSTROM 2011 (L1) USA (E03)

HANDLE SWITCH DL650A VSTROM 2011 (L1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3720027GA0
ref: 1

SWITCH ASSY,HANDLE,R

€ 160.50

2

021120530B
ref: 2

SCREW

€ 1.50

3

3740027GB0
ref: 3

SWITCH ASSY,HANDLE,L

€ 250.50

4

021120525B
ref: 4

SCREW

€ 1.50

5

021120545B
ref: 5

SCREW

€ 4.00

6

0940714407
ref: 6

CLAMP(L:145)

€ 4.00
