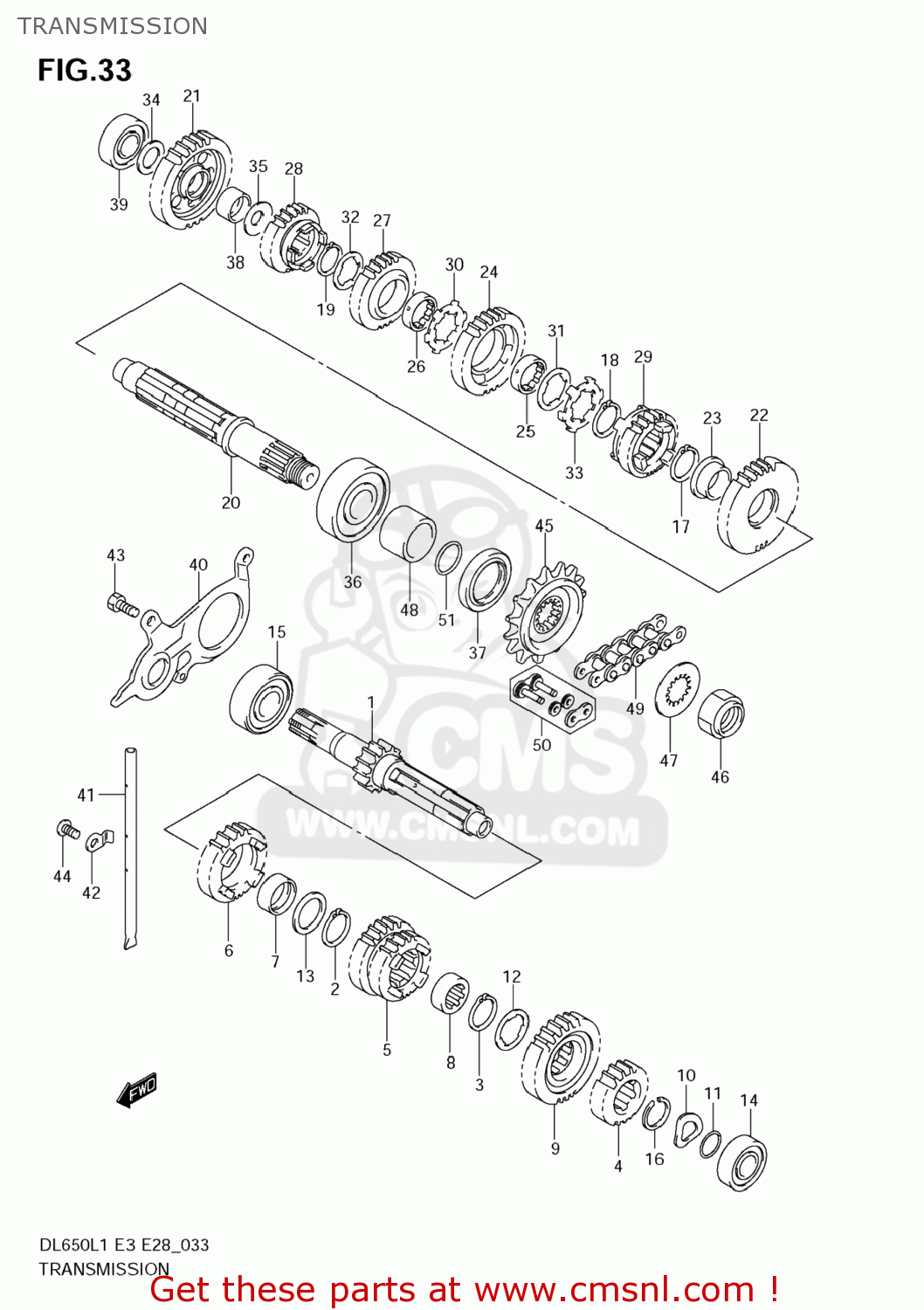

TRANSMISSION

ref

part #

description

quantity

1

2412027G00
ref: 1

SHAFT,COUNTER

€ 180.00

2

2412719F00
ref: 2

CIRCLIP

€ 2.00

3

2412719F00
ref: 3

CIRCLIP

€ 2.00

4

2422120F00
ref: 4

GEAR,SECOND DRIVE (NT:18)

€ 70.00

5

2423120F10
ref: 5

GEAR,3RD & 4TH DRIVE

€ 91.50

6

2425120F02
ref: 6

GEAR,5TH DRIVE(NT:26)

€ 78.50

7

2425219F00
ref: 7

BUSH

€ 9.50

8

2425238A10
ref: 8

BUSH,6TH DRIVE GEAR

€ 10.50

9

2426120F00
ref: 9

GEAR,6TH DRIVE(NT:27)

€ 85.00

10

0916417007
ref: 10

WASHER

€ 2.50

11

0928017001
ref: 11

O RING(D:1,ID:16.8)

€ 2.00

12

0916725021
ref: 12

WASHER,LOCK

€ 3.00

13

0918125167
ref: 13

SHIM(25X34X1)

€ 3.50

14

0926217046
ref: 14

BEARING(17X40X12)

€ 23.00

15

0926220145
ref: 15

BEARING(20X52X15)

€ 24.00

16

0938025012
ref: 16

CIRCLIP

€ 2.00

17

2412719F00
ref: 17

CIRCLIP

€ 2.00

18

2412719F00
ref: 18

CIRCLIP

€ 2.00

19

2412719F00
ref: 19

CIRCLIP

€ 2.00

20

2413044H00
ref: 20

SHAFT,DRIVE

€ 220.50

21

2431120F00
ref: 21

GEAR,1ST DRIVEN(NT:32)

€ 112.00

22

2432120F01
ref: 22

GEAR,2ND DRIVEN.NT:32)

€ 98.50

23

2432219F00
ref: 23

BUSH

€ 12.50

24

2433120F00
ref: 24

GEAR,3RD DRIVEN(NT:29)

€ 99.00

25

2433224510
ref: 25

BUSH,DRIVEN GEAR

€ 9.50

26

2433224510
ref: 26

BUSH,DRIVEN GEAR

€ 9.50

27

2434120F00
ref: 27

GEAR,4TH DRIVEN(NT:27)

€ 108.50

28

2435120F02
ref: 28

GEAR,5TH DRIVEN(NT:25)

€ 108.00

29

2436120F01
ref: 29

GEAR,6TH DRIVEN(NT:23)

€ 112.00

30

0916725013
ref: 30

WASHER,LOCK

€ 2.50

31

0916725021
ref: 31

WASHER,LOCK

€ 3.00

32

0916725021
ref: 32

WASHER,LOCK

€ 3.00

33

0916925001
ref: 33

WASHER

€ 2.00

34

0918117195
ref: 34

SHIM(17X28X1)

€ 3.00

35

0918120195
ref: 35

SHIM(20X30X1)

€ 3.00

36

0926225125
ref: 36

BEARING(25X62X17)

€ 49.00

37

0928336003
ref: 37

SEAL,OIL(36X50X6)

€ 12.00

38

0930020032
ref: 38

BUSH(20X24X13)

€ 10.00

39

0926217023
ref: 39

BEARING(17X40X12)

€ 14.00

40

2475119F10
ref: 40

RETAINER,DRIVE SHAFT OIL SEAL

€ 8.00

41

2488112C20
ref: 41

GUIDE,T/M OIL

€ 9.50

42

2488512C10
ref: 42

RETAINER,TRANSMISSION OIL

€ 2.00

43

015000612A
ref: 43

BOLT

€ 2.00

44

021120612A
ref: 44

SCREW

€ 1.50

45

2751020F00
ref: 45

SPROCKET,ENGINE(NT:15)

€ 32.00

46

0915920004
ref: 46

NUT

€ 12.00

47

0916725027
ref: 47

WASHER,LOCK

€ 1.50

48

2753119F10
ref: 48

SPACER,ENGINE SPROCKET

€ 20.00

49

2760032C10118
ref: 49

CHAIN,DRIVE

€ 166.00

50

2762032C10
ref: 50

JOINT SET,CHAIN

€ 10.00

51

0928024010
ref: 51

O RING(D:2.4,ID:23.7)

€ 5.50
