AIR CLEANER

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

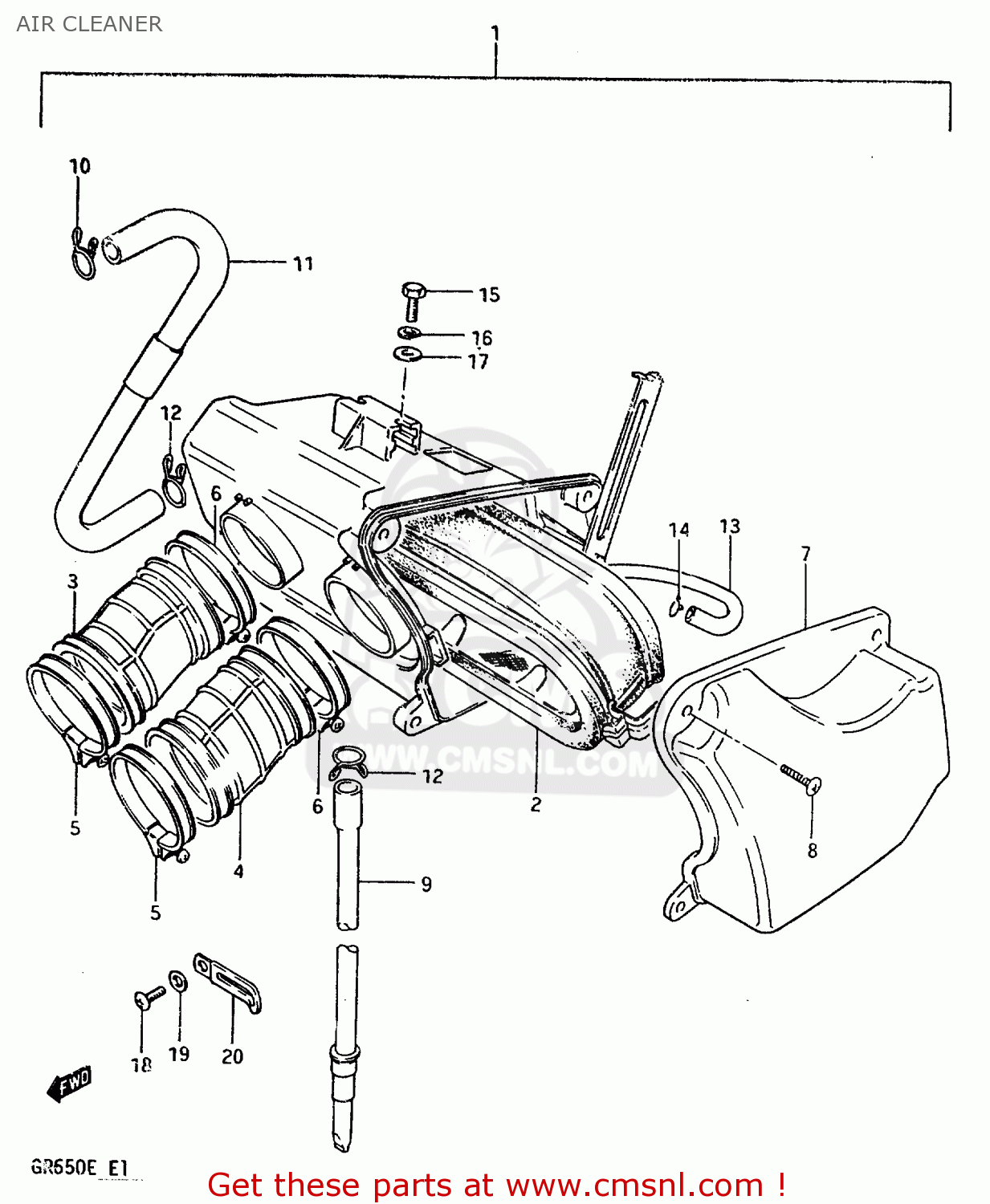

Air cleaner diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

AIR CLEANER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

AIR CLEANER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

1370015500
ref: 1

CLEANER ASSEMBLY,AIR

€ 137.50

2

1378015500
ref: 2

FILTER,AIR CLEANER

€ 93.50

3

1388115500
ref: 3

TUBE,AIR CLEANER OUTLET

€ 10.50

4

1388215500
ref: 4

TUBE,AIR CLEANER OUTLET

€ 10.00

5

0940264306
ref: 5

CLAMP

€ 6.00

6

0940266306
ref: 6

CLAMP

€ 7.50

7

1374015500
ref: 7

CAP,AIR CLEANER

€ 24.50

8

0214205165
ref: 8

SCREW

€ 2.50

9

1387015500
ref: 9

DRAIN TUBE

€ 13.50

10

1382800020
ref: 10

CLIP,BREATHER TUBE

€ 2.00

11

1385015500
ref: 11

TUBE,BREATHER

€ 0.00

12

1382800020
ref: 12

CLIP,BREATHER TUBE

€ 2.00

13

1385715500
ref: 13

HOSE, BREATHER (L:300)

€ 8.00

14

1382415500
ref: 14

CLIP

€ 0.00

15

0110706168
ref: 15

BOLT, UPPER

€ 3.00

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0832221068
ref: 17

WASHER

€ 2.00

18

0214206167
ref: 18

SCREW

€ 2.00

19

0916006007
ref: 19

WASHER

€ 2.00

20

0940406412
ref: 20

CLAMP

€ 2.50
