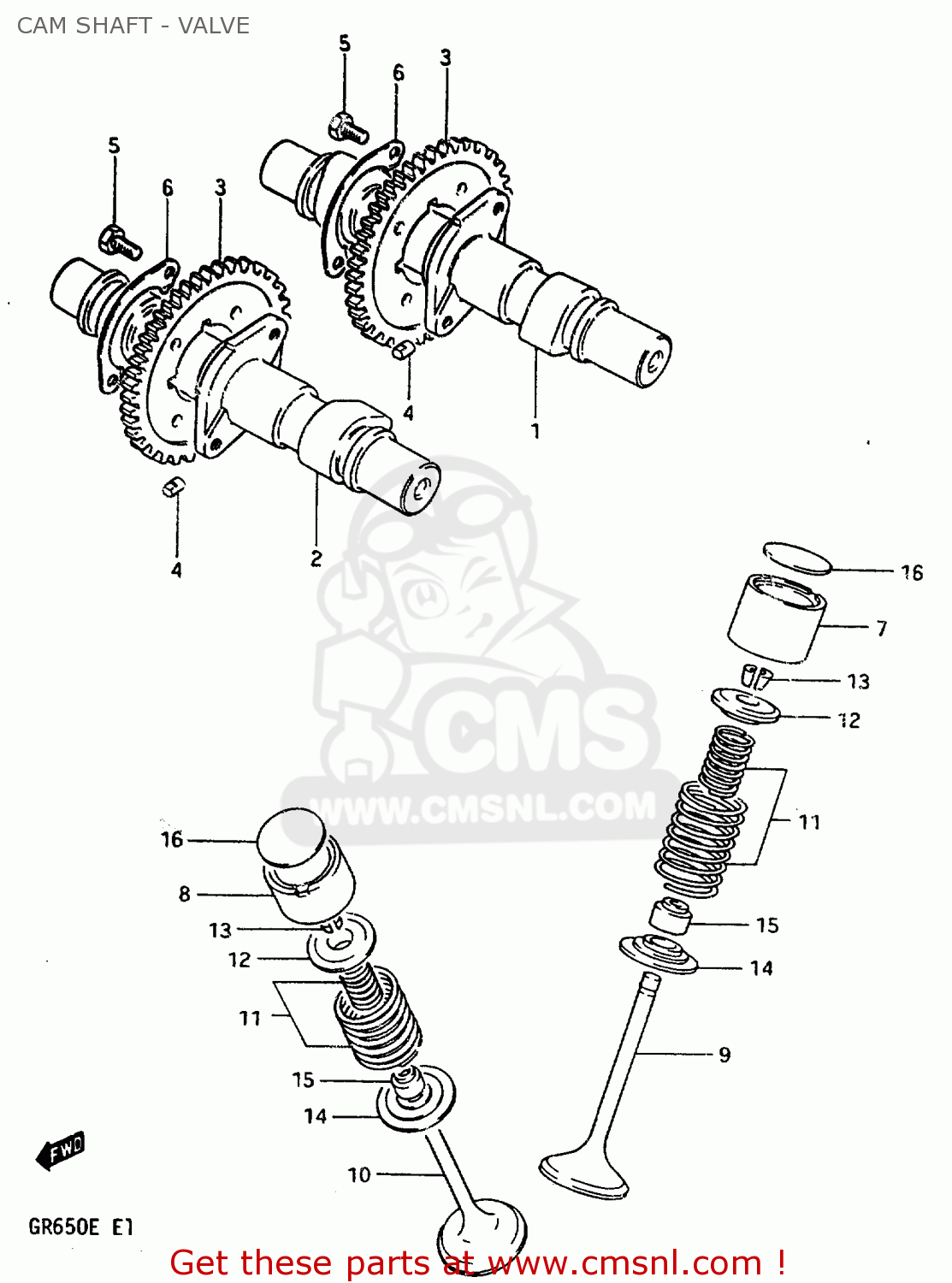

CAM SHAFT - VALVE - GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

ref

part #

description

quantity

1

1271115502
ref: 1

CAMSHAFT,INTAKE

€ 209.00

2

1272115502
ref: 2

CAMSHAFT,EXHAUST

€ 161.00

3

1274115501
ref: 3

SPROCKET,INTAKE CAMSHAFT

€ 171.00

4

1274844000
ref: 4

PIN,SPROCKET

€ 4.50

5

0911106027
ref: 5

BOLT(6X12.5)

€ 1.50

6

1274744000
ref: 6

WASHER,CAM CHAIN SPROCKET

€ 2.00

7

1289145001
ref: 7

TAPPET,INTAKE

€ 45.00

8

1289115500
ref: 8

TAPPET

€ 45.00

9

1291115500
ref: 9

VALVE,INTAKE

€ 34.50

10

1291215500
ref: 10

VALVE,EXHAUST

€ 51.00

11

1292015500
ref: 11

SPRING SET,VALVE

€ 10.00

12

1293145000
ref: 12

RETAINER,VALVE SPRING

€ 6.00

13

1293245010
ref: 13

COTTER VALVE

€ 2.50

14

1293345001
ref: 14

SEAT,VALVE SPRING

€ 5.50

15

0928907002
ref: 15

SEAL,OIL(7X14.4X9)

€ 3.00

16-1

1289245000
ref: 16-1

SHIM,TAPPET

€ 17.00

16-2

1289245001
ref: 16-2

SHIM,TAPPET

€ 16.50

16-3

1289245002
ref: 16-3

SHIM,TAPPET

€ 17.00

16-4

1289245003
ref: 16-4

SHIM,TAPPET

€ 16.00

16-5

1289245004
ref: 16-5

SHIM,TAPPET

€ 16.50

16-6

1289245005
ref: 16-6

SHIM,TAPPET

€ 17.00

16-7

1289245006
ref: 16-7

SHIM,TAPPET

€ 17.00

16-8

1289245007
ref: 16-8

SHIM,TAPPET

€ 16.00

16-9

1289245008
ref: 16-9

SHIM,TAPPET

€ 16.50

16-10

1289245009
ref: 16-10

SHIM,TAPPET

€ 16.00

16-11

1289245010
ref: 16-11

SHIM,TAPPET

€ 17.00

16-12

1289245011
ref: 16-12

SHIM,TAPPET

€ 17.00

16-13

1289245012
ref: 16-13

SHIM,TAPPET

€ 17.00

16-14

1289245013
ref: 16-14

SHIM,TAPPET

€ 16.50

16-15

1289245014
ref: 16-15

SHIM,TAPPET

€ 17.00

16-16

1289245015
ref: 16-16

SHIM,TAPPET

€ 17.00

16-17

1289245016
ref: 16-17

SHIM,TAPPET

€ 17.00

16-18

1289245017
ref: 16-18

SHIM,TAPPET

€ 17.00

16-19

1289245018
ref: 16-19

SHIM,TAPPET

€ 16.50

16-20

1289245019
ref: 16-20

SHIM,TAPPET

€ 17.00

17

1280045810
ref: 17
NOT SHOWN

SHIM SET,TAPPET

€ 1,227.00

18

9900069480
ref: 18
NOT SHOWN

CASE

€ 152.50

CAM SHAFT - VALVE

all assemblies
