STEERING STEM (GR650D/E)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

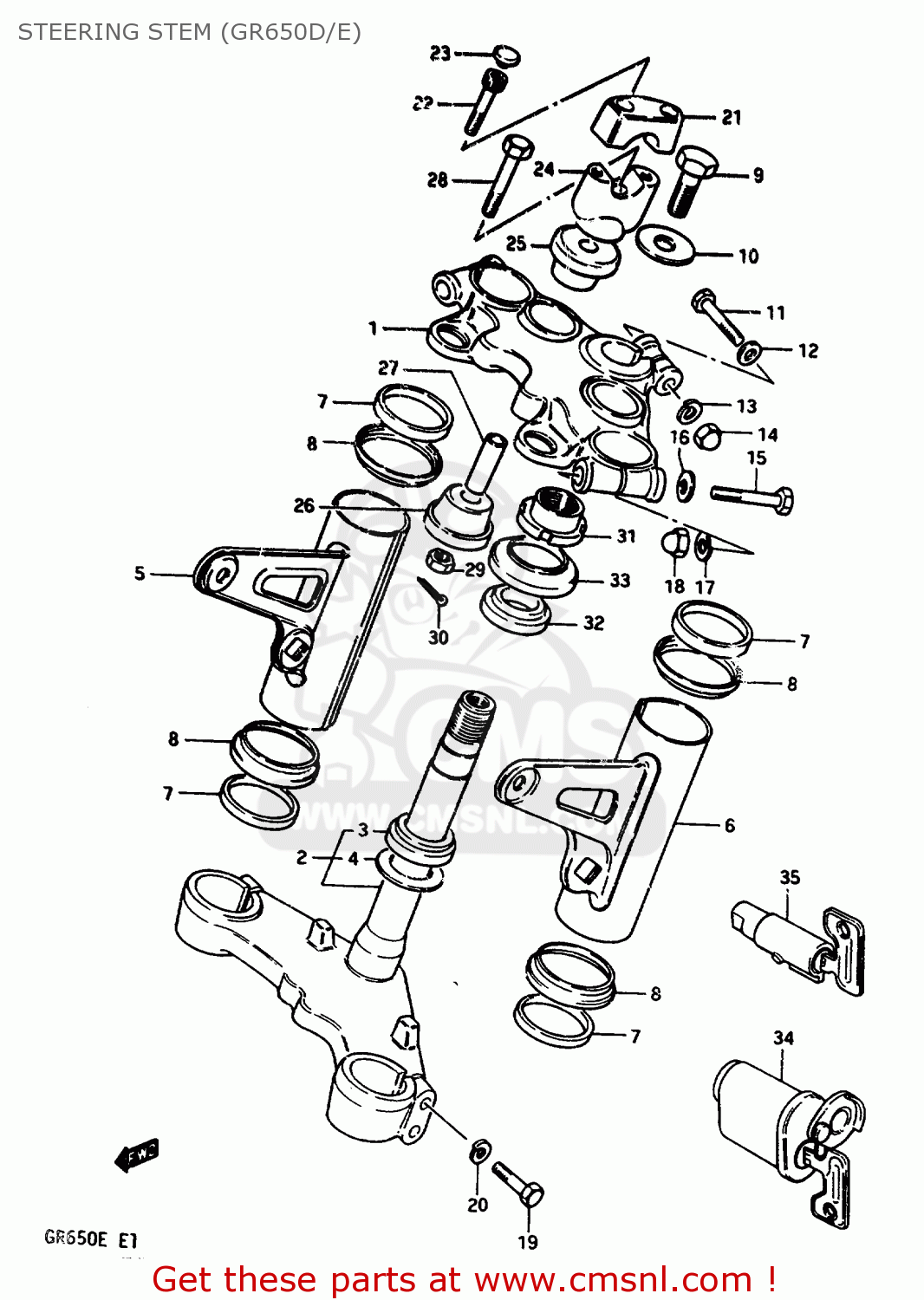

Steering stem (gr650d/e) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

STEERING STEM (GR650D/E) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
STEERING STEM (GR650D/E) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
STEERING STEM (GR650D/E) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
513111550015T
ref: 1
BLACK
HEAD,STEERING STEM
€ 145.50
2-1
5141015500
ref: 2-1
STEM,STEERING
€ 259.00
2-2
5141015520
ref: 2-2
E15,E17,E22,E26
STEM,STEERING
5141015520
€ 259.00
3
0926530005
ref: 3
BEARING
0926530005
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
0821130402
€ 4.00
5
5153015500
ref: 5
BRACKET COMP,HEADLAMP
5153015500
€ 89.00
6
5154015500
ref: 6
BRACKET,HEADLAMP,LEFT
5154015500
€ 96.00
7
5155533300
ref: 7
CUSHION,HEADLAMP BRACKET
5155533300
€ 4.00
8
5155633300
ref: 8
CAP,HEADLAMP BRACKET
€ 0.00
9
5135209300
ref: 9
BOLT,STEERING STEM HEAD
€ 11.50
10
5135609300
ref: 10
WASHER
€ 4.00
11
0110708508
ref: 11
BOLT 8X50
€ 3.00
12
0832221088
ref: 12
WASHER
0832221088
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
0831311085
ref: 14
NUT,M8X1.25X12
€ 2.00
15
0110710555
ref: 15
BOLT 10X55
€ 3.50
16
0832221105
ref: 16
WASHER 10MM
€ 2.50
17
0832121105
ref: 17
LOCK WASHER
€ 3.00
18
0914510002
ref: 18
NUT
0914510002
€ 4.00
19
0110708405
ref: 19
BOLT 8X40
0110708405
€ 3.00
20
0832121085
ref: 20
LOCK WASHER
€ 2.50
21
5621115500291
ref: 21
BLACK
CLAMP,HANDLE BAR,UPPER
5621115500291
€ 9.50
22
0910608013
ref: 22
BOLT
€ 3.00
23
0925006004
ref: 23
CAP(OD:14.5)
0925006004
€ 1.50
24
562211550015T
ref: 24
BLACK
CLAMP,HANDLE BAR,LOWER
€ 24.00
25
5624015500
ref: 25
CUSHION,LWR
5624015500
€ 26.00
26
5624015500
ref: 26
CUSHION,LWR
5624015500
€ 26.00
27
0918010065
ref: 27
SPACER(10.2X14X46)
0918010065
€ 4.50
28
0910110025
ref: 28
BOLT(10X78)
0910110025
€ 4.00
29
0915910027
ref: 29
NUT
0915910027
€ 3.00
30
0411120308
ref: 30
COTTER PIN
€ 1.00
31
5163134200
ref: 31
NUT,STEERING STEM
5163134200
€ 23.00
32
0926525008
ref: 32
TAPER,ROLLER BEARING
0926525008
€ 48.50
33
5164340502
ref: 33
DUST SEAL,STEERING UPR
5164340502
€ 8.00
34
5190045400
ref: 34
E15,E17
LOCK ASSY, STEERING (NEIMAN TYPE EXECUTE
€ 0.00
35
5190022662
ref: 35
E22,E26
LOCK ASSEMBLY,STEERING (NEI
5190022662
€ 168.50
