TURN SIGNAL LAMP (E2,E4,E15,E17,E21,E34)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

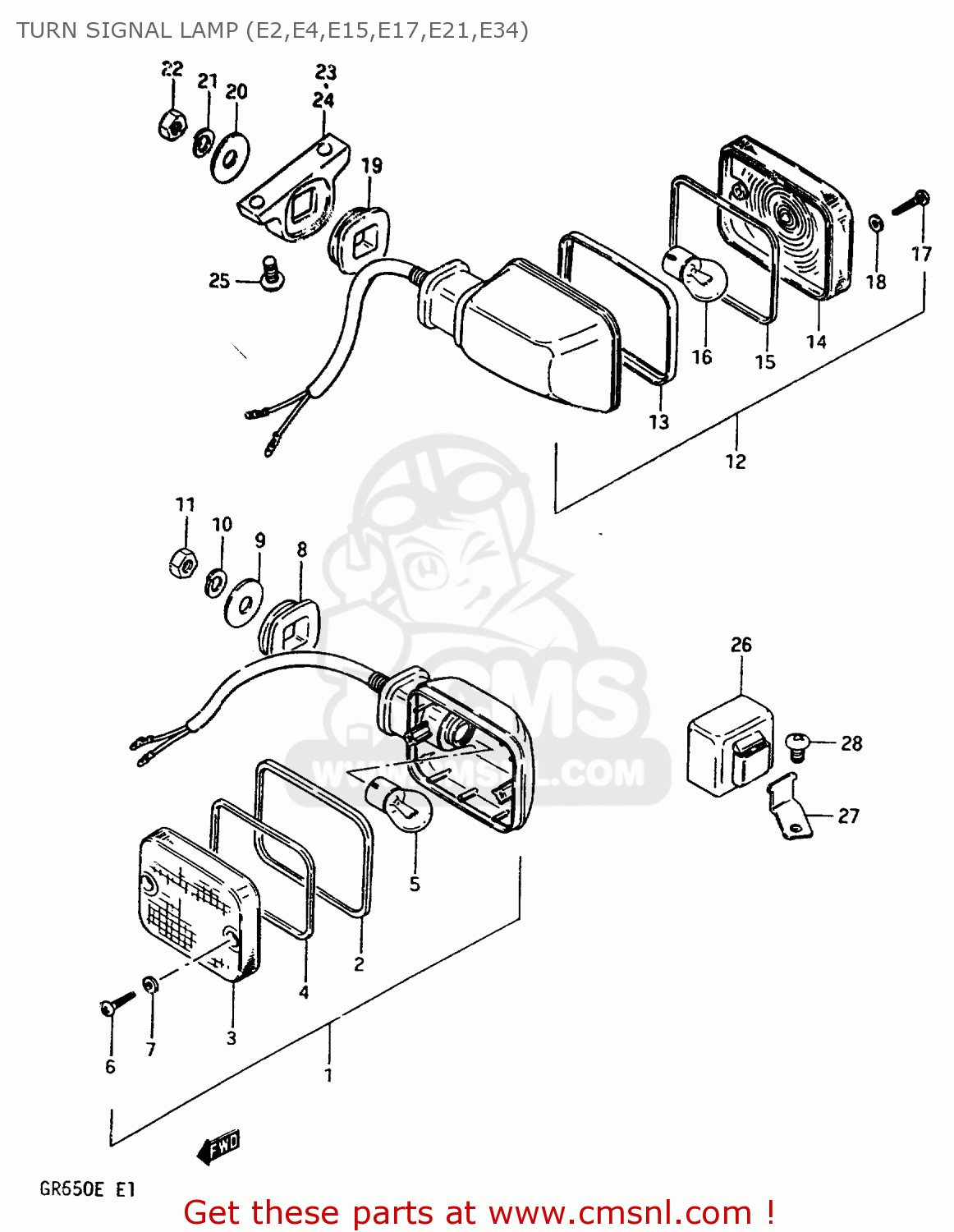

Turn signal lamp (e2,e4,e15,e17,e21,e34) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

TURN SIGNAL LAMP (E2,E4,E15,E17,E21,E34) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
TURN SIGNAL LAMP (E2,E4,E15,E17,E21,E34) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
TURN SIGNAL LAMP (E2,E4,E15,E17,E21,E34) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3560145120
ref: 1-1
E2,E4,E17,E34
LAMP ASSY,FR TURN SIGNAL
3560145120
€ 102.00
1-2
3560145140
ref: 1-2
MODEL D:E15
LAMP ASSY, FRONT TURN SIGNAL
€ 0.00
1-3
3560145180
ref: 1-3
MODEL E:E15
LAMP ASSY, FRONT TURN SIGNAL
3560145180
€ 86.50
1-4
3560145180
ref: 1-4
E21
LAMP ASSY, FRONT TURN SIGNAL
3560145180
€ 86.50
2
3561149230
ref: 2
RIM
3561149230
€ 11.00
3
3561249231
ref: 3
LENS
3561249231
€ 13.00
4
3561349230
ref: 4
GASKET (NAS)
3561349230
€ 5.00
5
0947112045
ref: 5
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
6
0321104208
ref: 6
SCREW
0321104208
€ 1.50
7
3562743010
ref: 7
GASKET (NAS)
3562743010
€ 2.00
8
0932015005
ref: 8
CUSHION
0932015005
€ 5.00
9
0916010006
ref: 9
WASHER (10.5X30X2.3)
0916010006
€ 2.50
10
0832121108
ref: 10
LOCK WASHER
0832121108
€ 2.00
11
0831012108
ref: 11
NUT
0831012108
€ 2.50
12
3560334420
ref: 12
LAMP ASSY, REAR TURN SIGNAL
3560334420
€ 97.00
13
3561149230
ref: 13
RIM
3561149230
€ 11.00
14
3565244182
ref: 14
LENS
3565244182
€ 13.00
15
3561349230
ref: 15
GASKET (NAS)
3561349230
€ 5.00
16
0947112045
ref: 16
EXECUTED LOCALLY
BULB(12V21W)
0947112045
€ 5.00
17
0321104208
ref: 17
SCREW
0321104208
€ 1.50
18
3562743010
ref: 18
GASKET (NAS)
3562743010
€ 2.00
19
0932015005
ref: 19
CUSHION
0932015005
€ 5.00
20
0916010006
ref: 20
WASHER (10.5X30X2.3)
0916010006
€ 2.50
21
0832121108
ref: 21
LOCK WASHER
0832121108
€ 2.00
22
0831012108
ref: 22
NUT
0831012108
€ 2.50
23
3562115500
ref: 23
BRACKET,REAR TURN SIGNAL
3562115500
€ 49.00
24
3564115500
ref: 24
BRACKET,REAR TURN SIGNAL
3564115500
€ 31.50
25
0211206168
ref: 25
SCREW
0211206168
€ 2.50
26-1
3861045031
ref: 26-1
MODEL D
RELAY,TURN SIGNAL
3861045031
€ 54.50
26-2
3861031310
ref: 26-2
MODEL E
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
27
3862115500
ref: 27
BRACKET,TURN SIGNAL RELAY
€ 0.00
28
0214206105
ref: 28
SCREW
€ 2.00
