HEADLAMP (E2)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

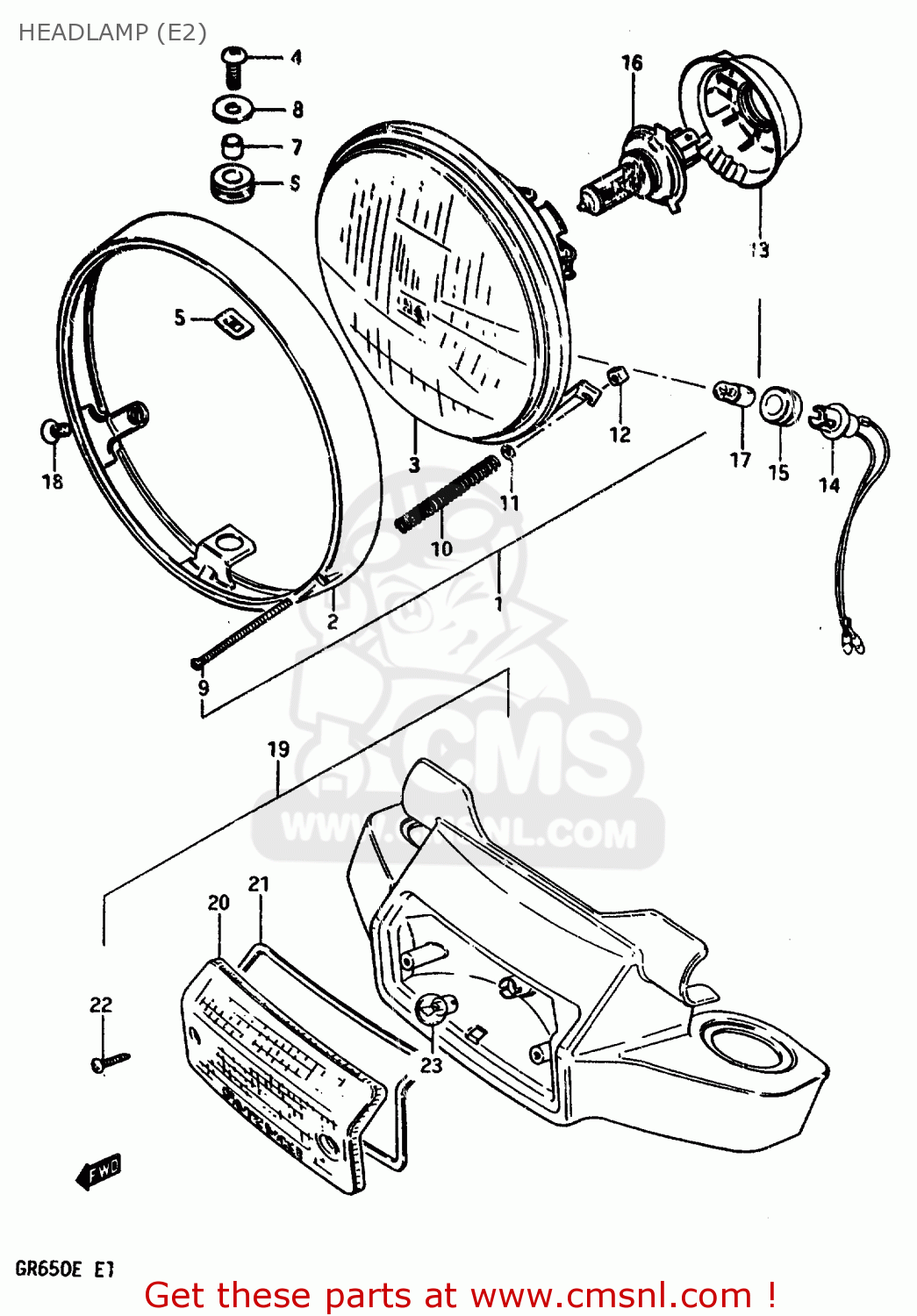

Headlamp (e2) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

HEADLAMP (E2) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

HEADLAMP (E2) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

3510015510999
ref: 1-1
GR6500

HEADLAMP ASSY

€ 0.00

1-2

3510015520999
ref: 1-2
GR650XD

HEADLAMP ASSY

€ 0.00

2

3511115530
ref: 2

RIM,HEAD LAMP

€ 56.50

3-1

3512115510
ref: 3-1
GR650D

UNIT

€ 0.00

3-2

3512115520
ref: 3-2
GR650XD

UNIT

€ 0.00

4

0912505102
ref: 4

SCREW(5X14)

€ 2.50

5

3515548510
ref: 5

NUT

€ 2.00

6

3513945230
ref: 6

CUSHION

€ 1.50

7

3513345230
ref: 7

SPACER

€ 2.00

8

3513845230
ref: 8

WASHER

€ 2.00

9

3515115510
ref: 9

SCREW,HEADLAMP ADJUST

€ 3.00

10

3515427630
ref: 10

SPRING,HEADLAMP ADJUST

€ 3.50

11

3515727630
ref: 11

WASHER

€ 2.50

12

3513545600
ref: 12

NUT

€ 3.00

13

3517345200
ref: 13

COVER,SOCKET

€ 14.00

14

3611830691
ref: 14
GR650XD

SOCKET

€ 12.00

15

3611622630
ref: 15
GR650XD

JOINT,RUBBER

€ 5.00

16

0947112060
ref: 16
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

17

0947112063
ref: 17
GR650XDEXECUTED LOCA

BULB(12V4W)

€ 6.00

18

0912705013
ref: 18

SCREW(5X12)

€ 2.50

19

3611015520
ref: 19

LAMP ASSY, FRONT POSITION

€ 103.50

20

3611215500
ref: 20

LENS

€ 15.50

21

3611315500
ref: 21

GASKET,POSITION LAMP

€ 0.00

22

3611715500
ref: 22

SCREW,POSITION LENS

€ 1.50

23

0947112063
ref: 23
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

all assemblies
