CYLINDER

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

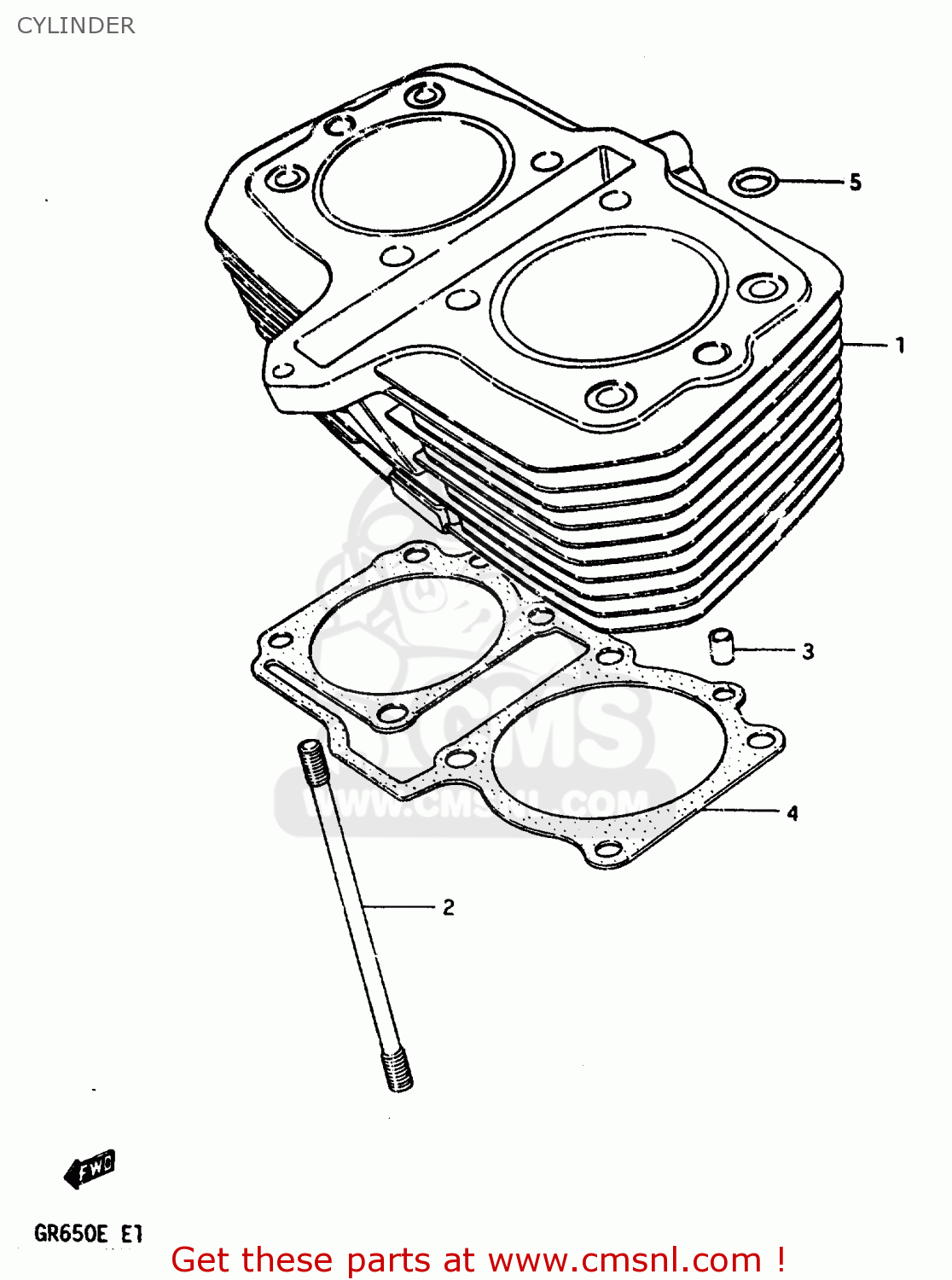

Cylinder diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

CYLINDER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

CYLINDER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

1121015502
ref: 1-1
MODEL D

CYLINDER

€ 674.00

1-2

1121015504
ref: 1-2
MODEL E

CYLINDER

€ 674.00

2

0910810054
ref: 2

STUD

€ 6.00

3

0421109129
ref: 3

PIN

€ 2.00

4

1124115504
ref: 4

GASKET,CYLINDER (MCA)

€ 39.00

5

0928011005
ref: 5

O RING(D:2.4,ID:11)

€ 4.50
