FUEL TANK (GR650XD)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

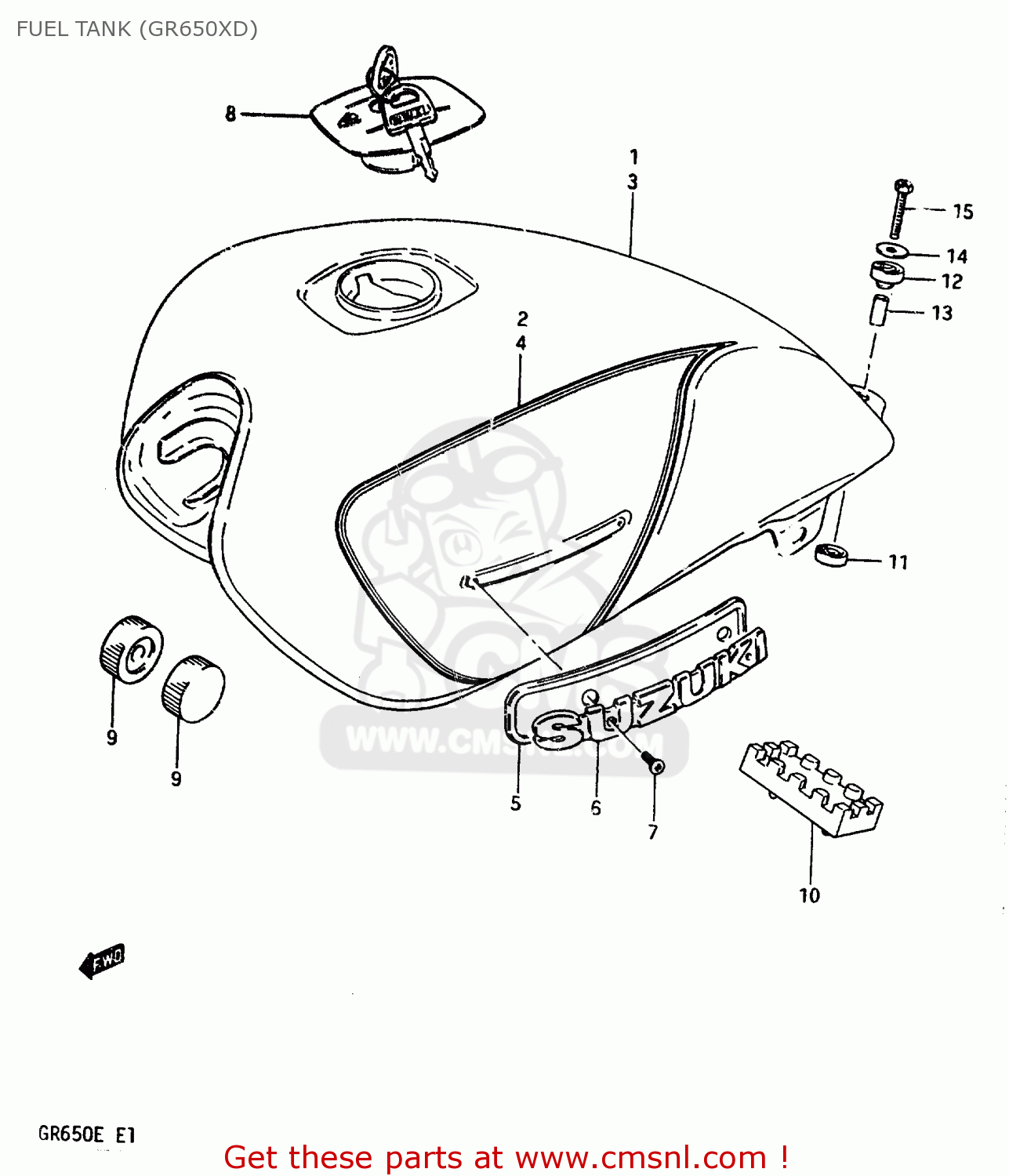

Fuel tank (gr650xd) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FUEL TANK (GR650XD) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
FUEL TANK (GR650XD) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
FUEL TANK (GR650XD) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
4410015510OOJ
ref: 1
TANK, FUEL (RED)
€ 0.00
2
681101551088L
ref: 2
TAPE SET,FUEL TANK
€ 46.00
3
4410015510019
ref: 3
TANK ASSY, FUEL (BLACK)
€ 364.50
4
681101551093B
ref: 4
TAPE SET, FUEL TANK
€ 0.00
5
4417544200
ref: 5
E22
CUSHION
4417544200
€ 5.00
6
6811115500
ref: 6
EMBLEM,FUEL TANK
6811115500
€ 28.50
7
0213203065
ref: 7
SCREW 3X6
0213203065
€ 2.00
8
4420049017KEY
ref: 8
CAP SET,FUEL TANK
€ 121.00
9
0932910016
ref: 9
CUSHION
0932910016
€ 3.00
10
4454134500
ref: 10
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
11
0932014013
ref: 11
CUSHION
0932014013
€ 3.00
12
0932010020
ref: 12
CUSHION
0932010020
€ 4.00
13
0918006118
ref: 13
SPACER
0918006118
€ 3.00
14
0916006004
ref: 14
WASHER (6.5X24X1.6)
0916006004
€ 1.50
15
0110706308
ref: 15
BOLT
0110706308
€ 2.50
