FRAME COVER (GR650E)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

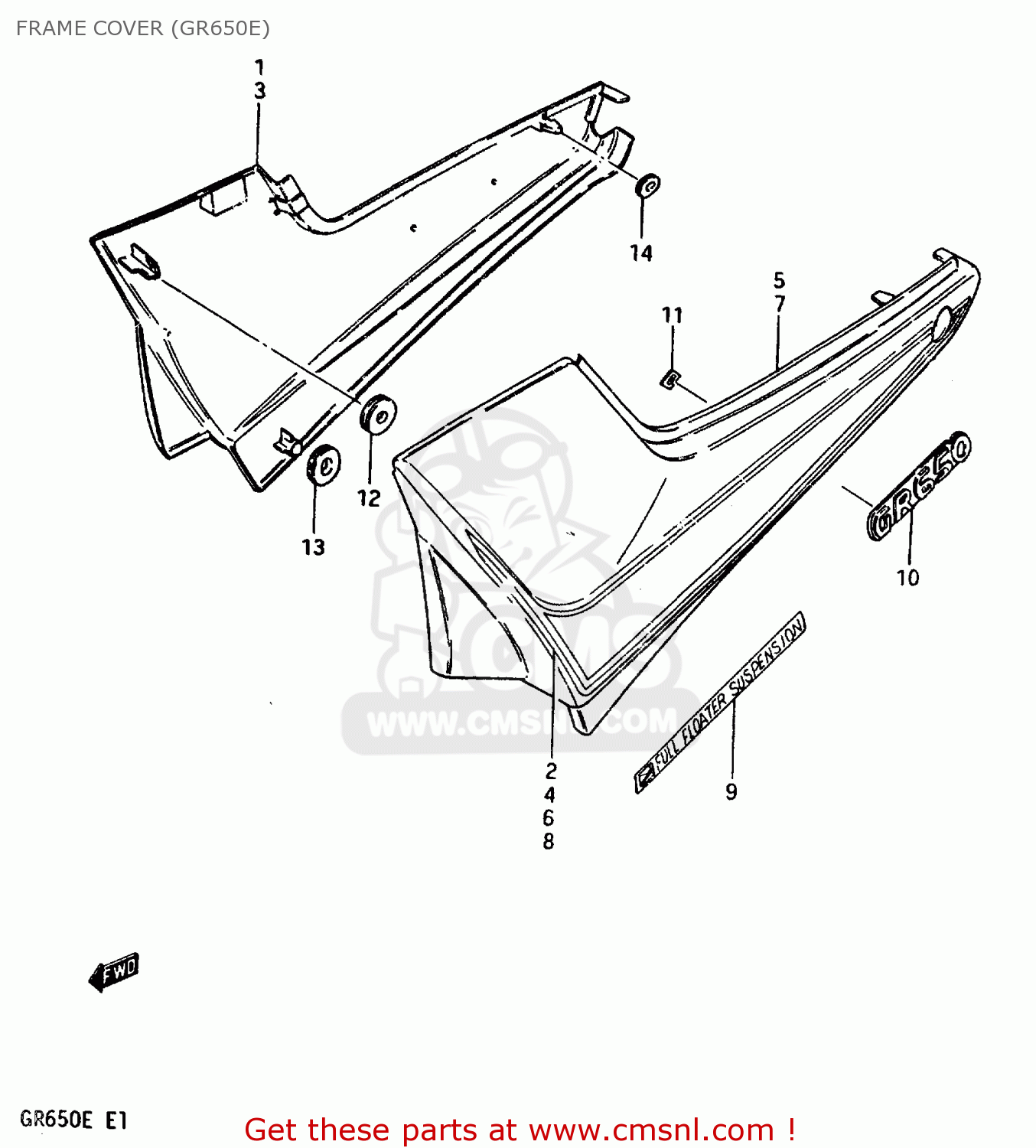

Frame cover (gr650e) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

471101552086M
ref: 1

COVER, FRAME RH

€ 82.00

681301552082S
ref: 2

TAPE, RH

€ 0.00

471101552099A
ref: 3

COVER, FRAME RH

€ 82.00

681301552099C
ref: 4

TAPE, RH

€ 0.00

472101552086M
ref: 5

COVER, FRAME LH

€ 104.50

681401552082S
ref: 6

TAPE, LH

€ 0.00

472101552099A
ref: 7

COVER, FRAME LH

€ 104.50

681401552099C
ref: 8

TAPE, LH

€ 0.00

682350470093W
ref: 9

EMBLEM

€ 0.00

6813115500
ref: 10

EMBLEM,FRAME COVER

€ 17.50

0914803002
ref: 11

NUT

€ 3.00

0932008018
ref: 12

CUSHION

€ 4.00

0932003005
ref: 13

CUSHION

€ 2.00

0932908003
ref: 14

CUSHION

€ 3.50
