WIRING HARNESS

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

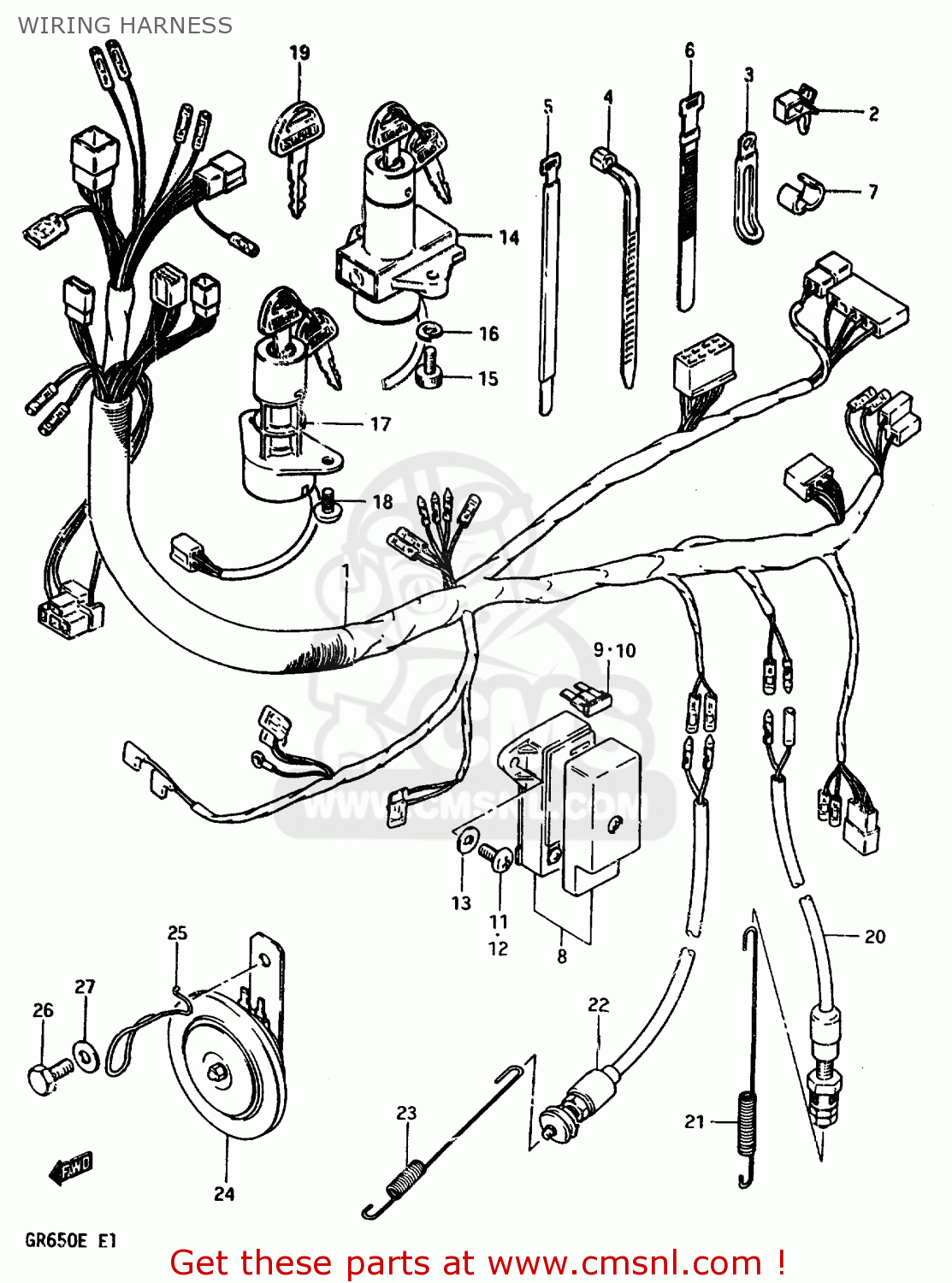

Wiring harness diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

WIRING HARNESS GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
WIRING HARNESS GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
WIRING HARNESS GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3661015500
ref: 1-1
MODEL D
HARNESS,WIRING
3661015500
€ 172.50
1-2
3661015510
ref: 1-2
MODEL E
WIRING HARNESS
€ 168.00
2
0940305305
ref: 2
CLIP
0940305305
€ 3.00
3-1
0940406412
ref: 3-1
CLAMP
0940406412
€ 2.50
3-2
0940406415
ref: 3-2
CLAMP
€ 3.00
4-1
0940714403
ref: 4-1
CLAMP(L:125)
0940714403
€ 2.50
4-2
0940718402
ref: 4-2
CLAMP(L:165)
0940718402
€ 2.50
4-3
0940725401
ref: 4-3
CLAMP(L:235)
0940725401
€ 4.00
5
0940735301
ref: 5
CLAMP
€ 6.50
6
0940712402
ref: 6
CLAMP(L:120)
0940712402
€ 3.00
7
0940800002
ref: 7
CLIP
0940800002
€ 2.00
8
3674049401
ref: 8
FROM 36740-49400
BOX ASSEMBLY,FUSE
3674049401
€ 69.50
9
0948110101
ref: 9
FUSE(10A)
0948110101
€ 2.50
10
0948115101
ref: 10
FUSE(15A)
0948115101
€ 1.50
11
0211206126
ref: 11
SCREW
0211206126
€ 1.50
12
0211206166
ref: 12
SCREW
€ 2.00
13
0832221066
ref: 13
WASHER, LOWER
0832221066
€ 2.00
14
3710049201
ref: 14
SWITCH ASSY,IGNITION
3710049201
€ 141.00
15
3715247011
ref: 15
FROM 37152-47010
BOLT
€ 3.00
16
0832121068
ref: 16
LOCK WASHER
0832121068
€ 2.50
17
3711011500
ref: 17
E15,E17,E22,E26
SWITCH ASSEMBLY,IGNITION
3711011500
€ 86.00
18
0214206125
ref: 18
SCREW 6X12
0214206125
€ 2.00
19
3714647010
ref: 19
OPT
KEY,BLANK
3714647010
€ 15.00
20
3774004572
ref: 20
SWITCH ASSEMBLY,STOP LAMP
3774004572
€ 22.00
21
0944306027
ref: 21
SPRING
0944306027
€ 4.50
22
3784015500
ref: 22
SWITCH ASSEMBLY,SIDE STAND
€ 25.00
23
0944306048
ref: 23
SPRING
€ 5.00
24-1
3850015500
ref: 24-1
HORN ASSEMBLY
€ 77.00
24-2
3850015510
ref: 24-2
E4,E18,E34,E39
HORN ASSY
€ 77.00
25
3859515500
ref: 25
PROTECTOR, HORN
€ 0.00
26
0110708165
ref: 26
BOLT
€ 2.00
27
0832211085
ref: 27
WASHER,8.5X16X
€ 1.50
