REAR SWINGING ARM

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

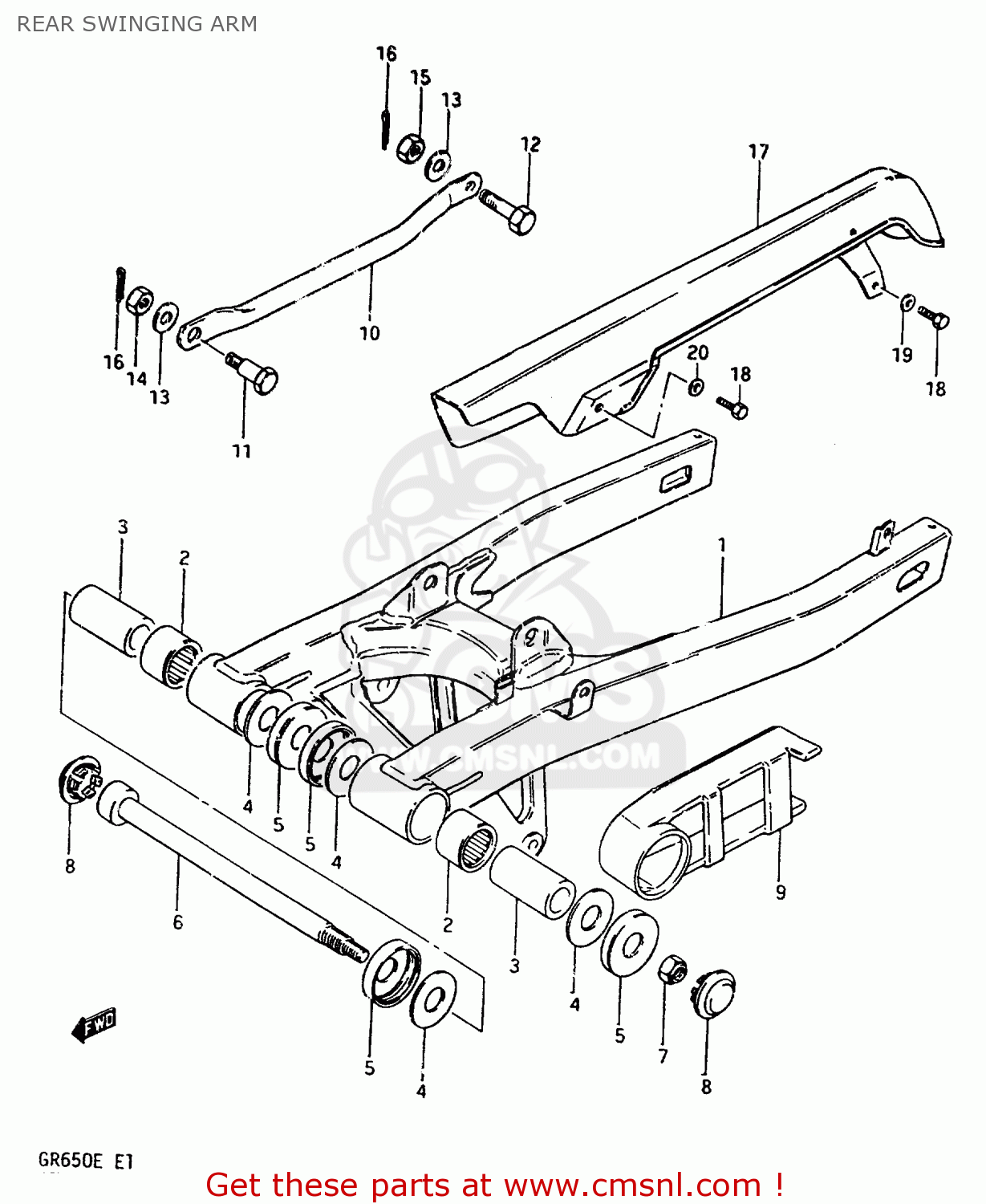

Rear swinging arm diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

REAR SWINGING ARM GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

REAR SWINGING ARM GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6100015500019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 215.00

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

6125131300
ref: 3

SPACER,RR SWGARM PIVOT

€ 21.00

4

0821116381
ref: 4

WASHER

€ 2.50

5

6126249000
ref: 5

COVER,RR SWGARM DUST SEAL

€ 17.50

6

6121115510
ref: 6

SHAFT,REAR SWING ARM

€ 26.00

7

0831931128
ref: 7

NUT 12MM

€ 4.00

8

6122215510
ref: 8

CAP,REAR SWING ARM PIVOT

€ 6.50

9

6127315501
ref: 9

BUFFER,DEFENSE

€ 31.00

10

6431147400019
ref: 10

LINK,REAR TORQUE

€ 13.50

11

0911110010
ref: 11

BOLT(10X24.5)

€ 5.50

12

0910110003
ref: 12

BOLT(10X31)

€ 4.00

13

0832121108
ref: 13

LOCK WASHER

€ 2.00

14

0831022108
ref: 14

NUT

€ 2.50

15

0831011108
ref: 15

NUT

€ 2.50

16

0411120208
ref: 16

PIN 20X20

€ 1.50

17

6131015500291
ref: 17

CASE,CHAIN

€ 55.50

18

0910006092
ref: 18

BOLT 6X8

€ 2.50

19

0832221064
ref: 19

WASHER

€ 2.00

20

0916906034
ref: 20

WASHER

€ 2.50
