REAR COMBINATION LAMP (E16,E18,E25,E26,E39)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

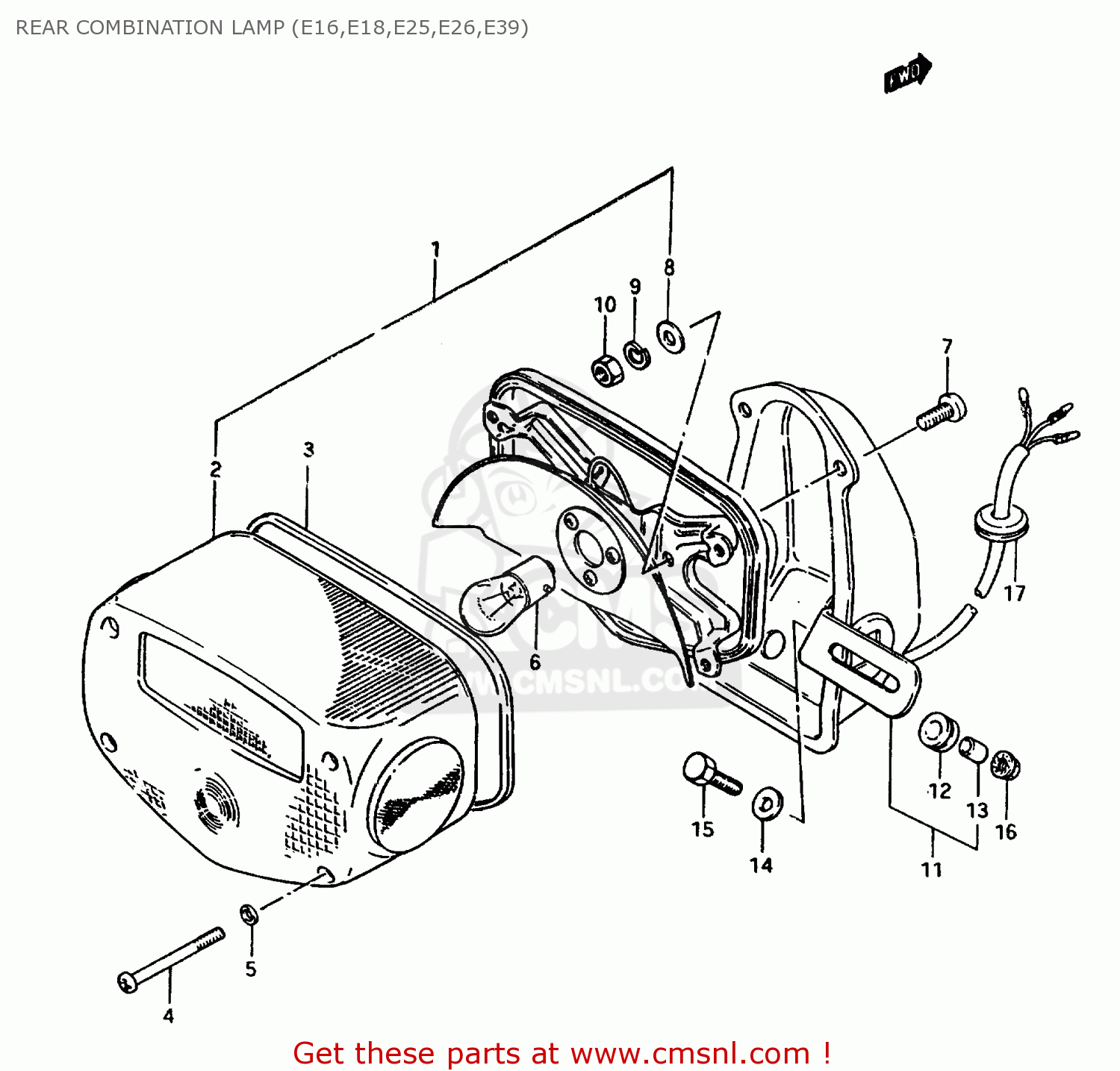

Rear combination lamp (e16,e18,e25,e26,e39) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

REAR COMBINATION LAMP (E16,E18,E25,E26,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
REAR COMBINATION LAMP (E16,E18,E25,E26,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
REAR COMBINATION LAMP (E16,E18,E25,E26,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
3572015580
ref: 1
LAMP UNIT, REAR COMBINATION
€ 155.50
2
3571245613
ref: 2
LENS
3571245613
€ 68.00
3
3571345010
ref: 3
GASKET (NAS)
3571345010
€ 9.00
4
0912504002
ref: 4
SCREW (4X55)
0912504002
€ 1.50
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
0947112046
ref: 6
EXECUTED LOCALLY
BULB(12V21/5W)
0947112046
€ 1.50
7
0211206128
ref: 7
SCREW 6X12
0211206128
€ 2.00
8
0832221068
ref: 8
WASHER
0832221068
€ 2.00
9
0832121068
ref: 9
LOCK WASHER
0832121068
€ 2.50
10
0831011068
ref: 10
NUT
0831011068
€ 2.50
11
3573034480
ref: 11
BRACKET UNIT
€ 0.00
12
3576522210
ref: 12
CUSHION
3576522210
€ 4.00
13
3576637120
ref: 13
SPACER
3576637120
€ 2.50
14
0916006027
ref: 14
WASHER (6.5X20X1.2)
0916006027
€ 2.00
15
0110706258
ref: 15
BOLT
€ 2.00
16
0831626068
ref: 16
NUT 6MM
0831626068
€ 2.00
17
0930809001
ref: 17
GROMMET
€ 0.00
