FRONT BRAKE HOSE

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

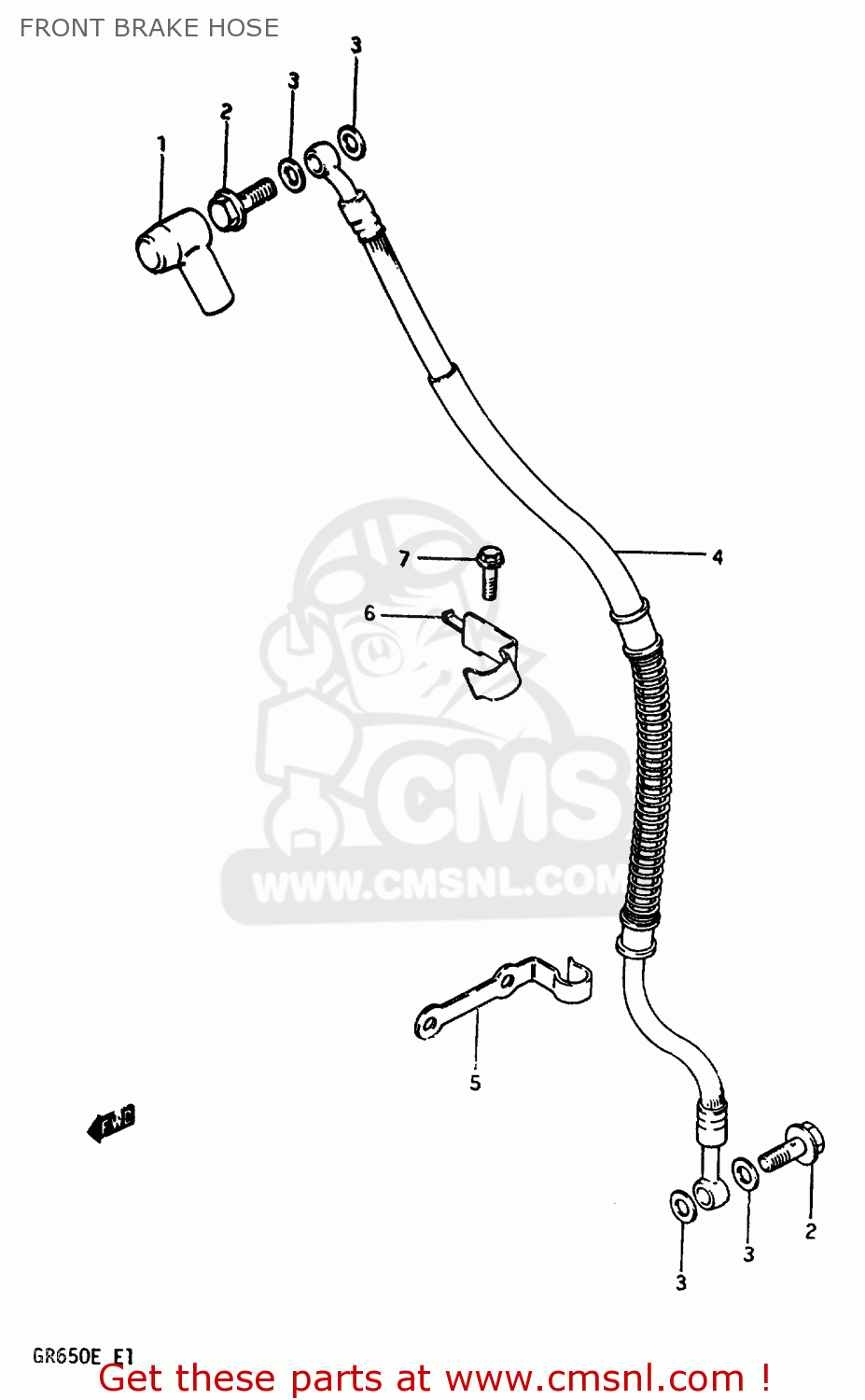

Front brake hose diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FRONT BRAKE HOSE GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FRONT BRAKE HOSE GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010009
ref: 2

BOLT UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4-1

5948015503
ref: 4-1
MODEL D

HOSE,FRONT BRAKE

€ 72.50

4-2

5948015504
ref: 4-2
MODEL E

HOSE,BRAKE

€ 72.50

5

5926849001
ref: 5

GUIDE,BRAKE HOSE NO.2

€ 7.00

6

5924615500
ref: 6

GUIDE

€ 0.00

7

0151706108
ref: 7

BOLT

€ 2.50

all assemblies
