REAR FENDER

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

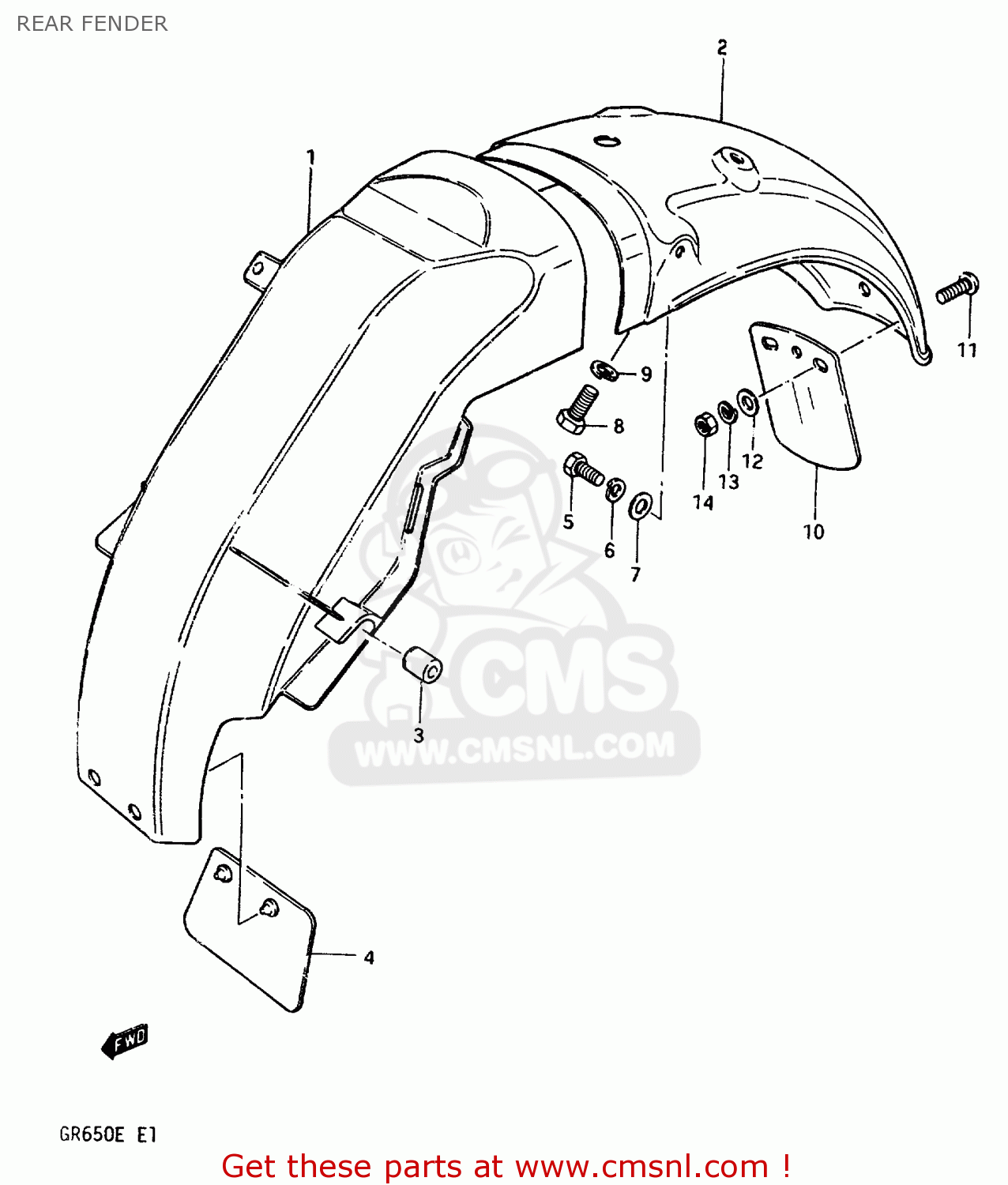

Rear fender diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

REAR FENDER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

REAR FENDER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

6311215500
ref: 1

BODY,REAR FENDER,FRONT

€ 66.50

2-1

6311015500
ref: 2-1

FENDER,REAR

€ 122.50

2-2

6311015510
ref: 2-2
E16,E24,E26,MODEL D

FENDER, REAR

€ 130.50

2-3

6311015520
ref: 2-3
E17,E22

FENDER, REAR

€ 111.00

2-4

6311015530
ref: 2-4
E15,MODEL D E18

FENDER, REAR

€ 0.00

3

0932905003
ref: 3

CUSHION

€ 4.50

4

6341131900
ref: 4

GUIDE,RR FENDER MUD

€ 8.00

5

0110706168
ref: 5

BOLT, UPPER

€ 3.00

6

0832121068
ref: 6

LOCK WASHER

€ 2.50

7

0832221068
ref: 7

WASHER

€ 2.00

8

0110708258
ref: 8

BOLT

€ 2.50

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

6333133601
ref: 10
E15 MODEL D E18

FLAP,RR FENDER MUD

€ 21.50

11

0214206167
ref: 11
E15, MODEL D E18

SCREW

€ 2.00

12

0916006007
ref: 12
E15,MODEL D E18

WASHER

€ 2.00

13

0832121068
ref: 13
E15,MODEL D E18

LOCK WASHER

€ 2.50

14

0831011068
ref: 14
E15, MODEL D E18

NUT

€ 2.50
