CRANKSHAFT

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

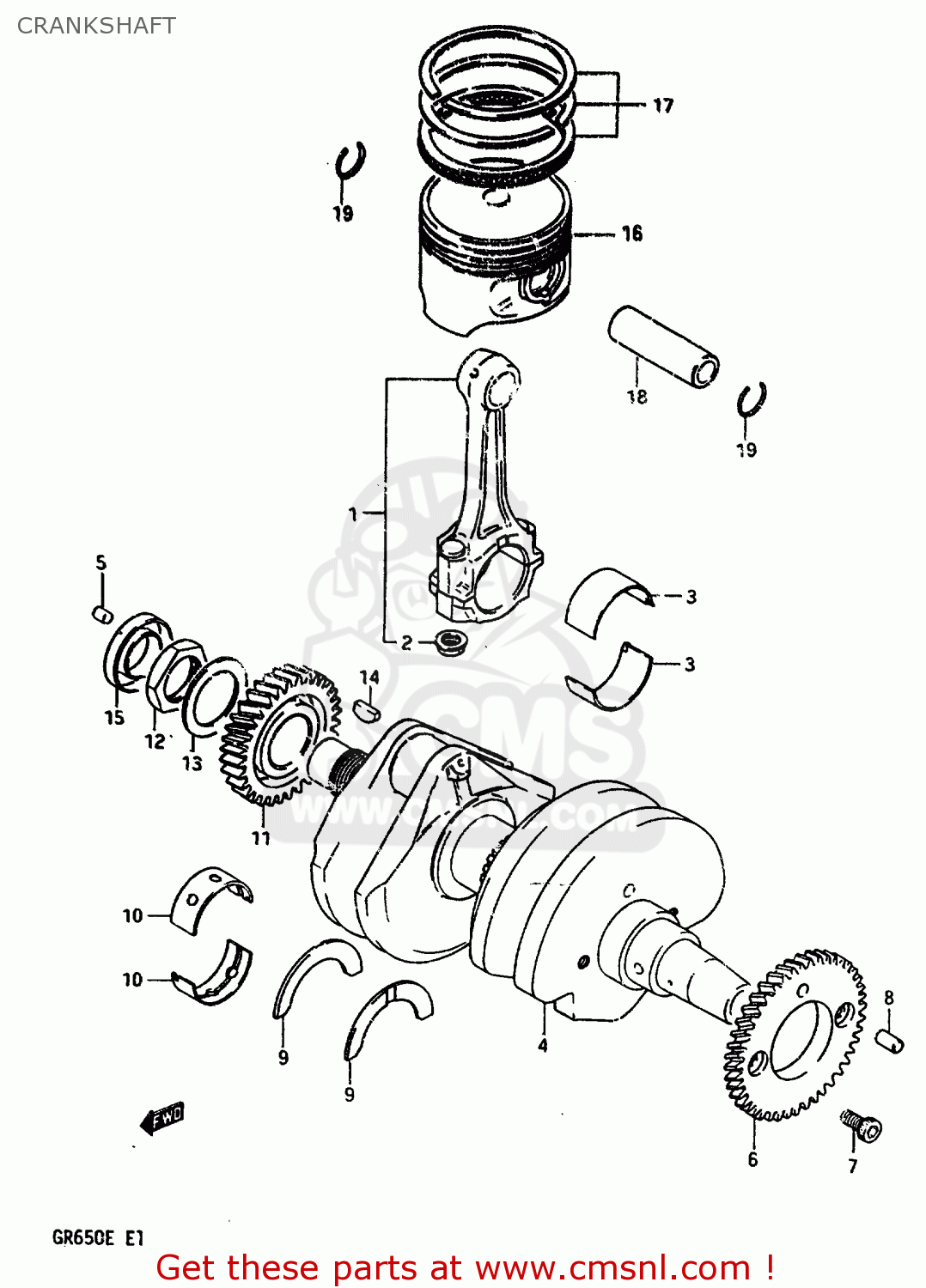

Crankshaft diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

CRANKSHAFT GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
CRANKSHAFT GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
CRANKSHAFT GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
1216015502
ref: 1
CONNECTING ROD ASSEMBLY
€ 105.00
2
0915909001
ref: 2
NUT
0915909001
€ 4.50
3-1
1216415510010
ref: 3-1
BEARING,CRANK PIN(GREEN)
1216415510010
€ 10.00
3-2
1216415510020
ref: 3-2
METAL CRANK PIN (BROWN)
1216415510020
€ 8.00
3-3
1216415510030
ref: 3-3
METAL CRANK PIN (BLACK)
€ 8.00
3-4
1216415510040
ref: 3-4
METAL CRANK PIN (GREEN)
€ 10.00
4
1222015502
ref: 4
CRANKSHAFT
€ 831.00
5
0920203016
ref: 5
PIN
0920203016
€ 1.50
6
1266115502
ref: 6
GEAR,CRANK BALANCER DRIVE
€ 96.00
7
0910606030
ref: 7
BOLT
€ 2.50
8
0422106129
ref: 8
PIN
€ 1.50
9-1
1222831301
ref: 9-1
PLATE,CRANK THRUST
1222831301
€ 6.00
9-2
1222831302
ref: 9-2
PLATE,CRANK THRUST
1222831302
€ 8.00
9-3
1222831303
ref: 9-3
PLATE,CRANK THRUST
1222831303
€ 8.50
9-4
1222831304
ref: 9-4
PLATE,CRANK THRUST
1222831304
€ 9.00
9-5
1222831305
ref: 9-5
PLATE,CRANK THRUST
1222831305
€ 7.00
9-6
1222831306
ref: 9-6
PLATE,CRANK THRUST
1222831306
€ 8.00
9-7
1222831307
ref: 9-7
PLATE,CRANK THRUST
€ 7.00
9-8
1222831308
ref: 9-8
PLATE,CRANK THRUST
1222831308
€ 7.50
10-1
1222915510010
ref: 10-1
METAL,CRANKSHAFT (GREEN)
1222915510010
€ 10.50
10-2
1222915510020
ref: 10-2
BEARING,CRANKSHAFT(BLACK)
1222915510020
€ 10.00
10-3
1222915510030
ref: 10-3
METAL CRANKSHAFT (BROWN)
1222915510030
€ 9.00
10-4
1222915510040
ref: 10-4
METAL,CRANKSHAFT (YELLOW)
€ 10.50
11
2111115501
ref: 11
GEAR,PRIMARY DRIVE
€ 0.00
12
0914024007
ref: 12
NUT
0914024007
€ 4.50
13
0916425001
ref: 13
WASHER
0916425001
€ 4.50
14
0834131059
ref: 14
KEY
0834131059
€ 3.00
15
0928322015
ref: 15
SEAL,OIL(22X40X8)
0928322015
€ 10.50
16-1
1211115504
ref: 16-1
PISTON (77.00MM)
1211115504
€ 118.00
16-2
1211115504050
ref: 16-2
OPT
PISTON (77.50MM)
1211115504050
€ 118.00
16-3
1211115504100
ref: 16-3
OPT
PISTON (78.00MM)
€ 84.00
17-1
1214015510
ref: 17-1
RING SET,PISTON
€ 73.50
17-2
1214015510050
ref: 17-2
OPT
RING SET,PISTON (OS:0.5)
€ 38.50
17-3
1214015510100
ref: 17-3
OPT
RING SET,PISTON (OS:1.0)
1214015510100
€ 62.00
18
1215115501A
ref: 18
PIN,PISTON
1215115501A
€ 15.00
19
0938118002A
ref: 19
CIRCLIP,PISTON PIN
0938118002A
€ 1.50
