SHOCK ABSORBER

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

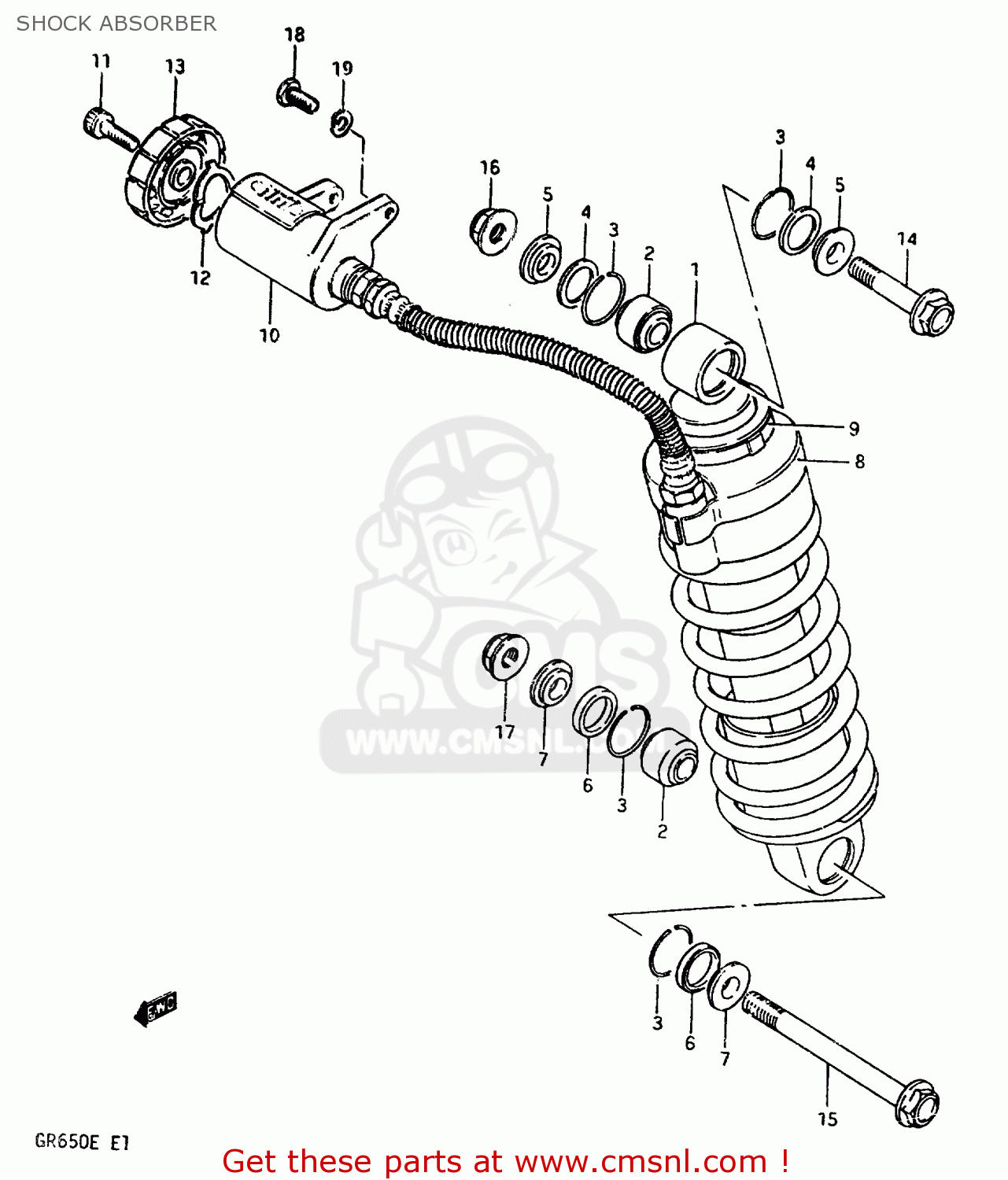

Shock absorber diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

SHOCK ABSORBER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
SHOCK ABSORBER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
SHOCK ABSORBER GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
6210015510
ref: 1
ABSORBER ASSEMBLY,REAR SHOCK
€ 874.00
2
0926910004
ref: 2
BEARING
0926910004
€ 66.00
3
6227720900
ref: 3
RING
€ 1.50
4
6222620900
ref: 4
DUST SEAL
6222620900
€ 8.00
5
6268420900
ref: 5
SPACER
6268420900
€ 8.00
6
6222631300
ref: 6
SEAL,DUST
€ 8.00
7
6268431300
ref: 7
COLLAR
6268431300
€ 8.00
8
6237831300
ref: 8
COVER
€ 12.50
9
6237909310
ref: 9
BAND
€ 0.00
10
6237015510
ref: 10
SPRING ADJUSTER
€ 0.00
11
6237631300
ref: 11
BOLT
€ 2.50
12
6237731300
ref: 12
PLATE SET
6237731300
€ 9.00
13
6237515510
ref: 13
LEVELING PLATE
6237515510
€ 69.50
14
0910310064
ref: 14
BOLT(10X50)
0910310064
€ 4.50
15
0910310052
ref: 15
BOLT(10X120)
€ 0.00
16
0831931108
ref: 16
NUT
0831931108
€ 3.00
17
0831931105
ref: 17
NUT 10MM
€ 3.00
18
0110706165
ref: 18
BOLT 6X16
0110706165
€ 2.00
19
0832121065
ref: 19
LOCK WASHER
€ 2.00
