FUEL COCK

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

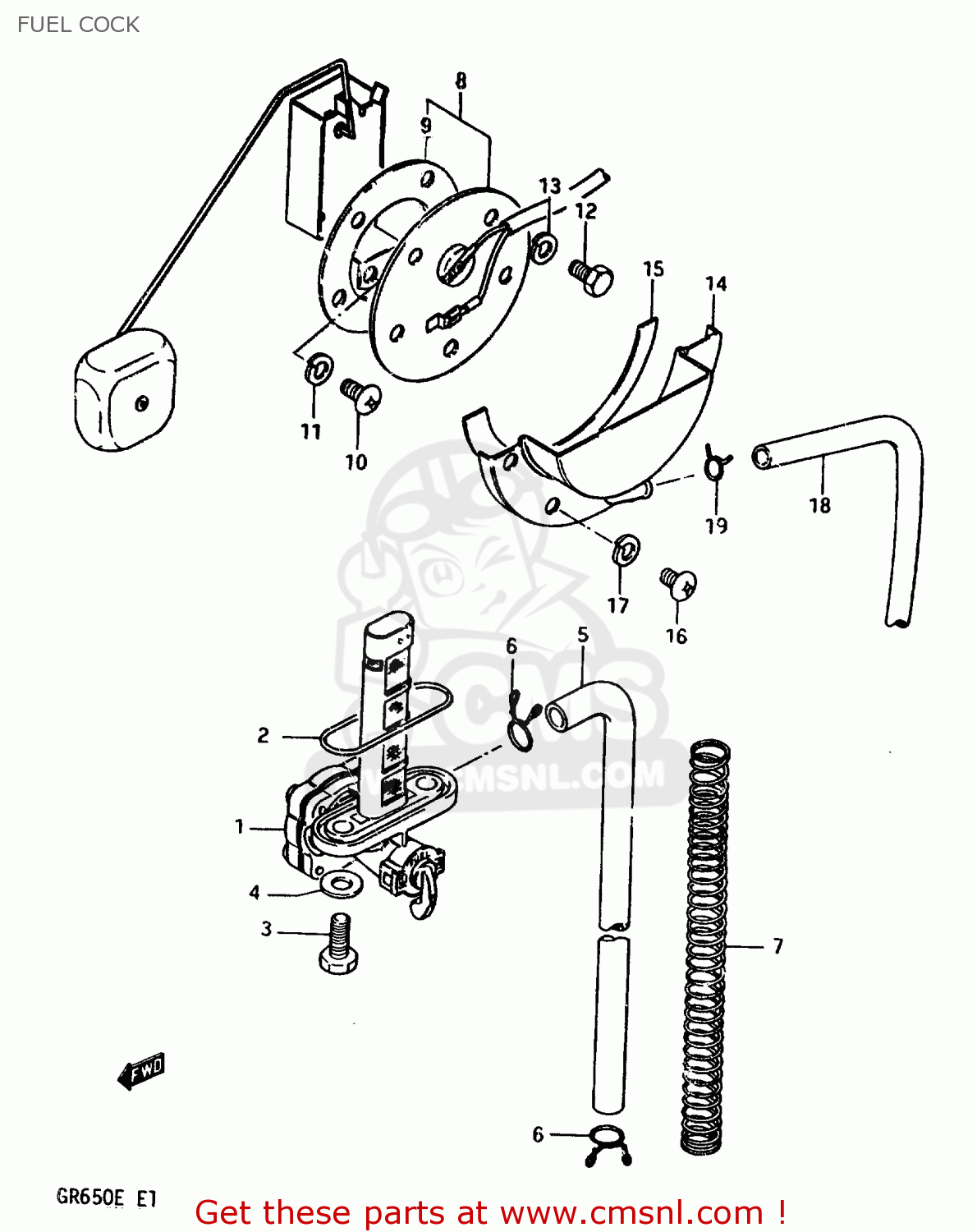

Fuel cock diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FUEL COCK GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FUEL COCK GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1-1

4430034470
ref: 1-1
MODEL D

COCK ASSEMBLY,FUEL

€ 104.50

1-2

4430015570
ref: 1-2
MODEL E

COCK ASSEMBLY,FUEL

€ 104.50

2

4434849170
ref: 2

O RING

€ 3.50

3

0912806006
ref: 3

BOLT(6X20)

€ 2.00

4

0916806010
ref: 4

GASKET

€ 2.00

5

0934307073
ref: 5

HOSE

€ 17.50

6

0940110403
ref: 6

CLIP

€ 7.00

7

0944013020
ref: 7

SPRING

€ 14.50

8

3481015501
ref: 8

GAUGE ASSEMBLY,FUEL LEVEL

€ 82.50

9

3482545100
ref: 9

GASKET,FUEL LEVEL GAUGE (NAS)

€ 7.00

10

0211205108
ref: 10

SCREW

€ 2.00

11

0832121056
ref: 11

LOCK WASHER

€ 3.00

12

0110705108
ref: 12

BOLT 5X10

€ 1.50

13

0832121056
ref: 13

LOCK WASHER

€ 3.00

14

3488534500
ref: 14

PLATE,FUEL DRAIN

€ 20.50

15

3488834500
ref: 15

GASKET (NAS)

€ 8.50

16

0211205086
ref: 16

SCREW

€ 2.00

17

0832121056
ref: 17

LOCK WASHER

€ 3.00

18

0934305165
ref: 18

HOSE,FUEL

€ 13.00

19

0940108402
ref: 19

CLIP

€ 1.50
