FRAME COVER (GR650D)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

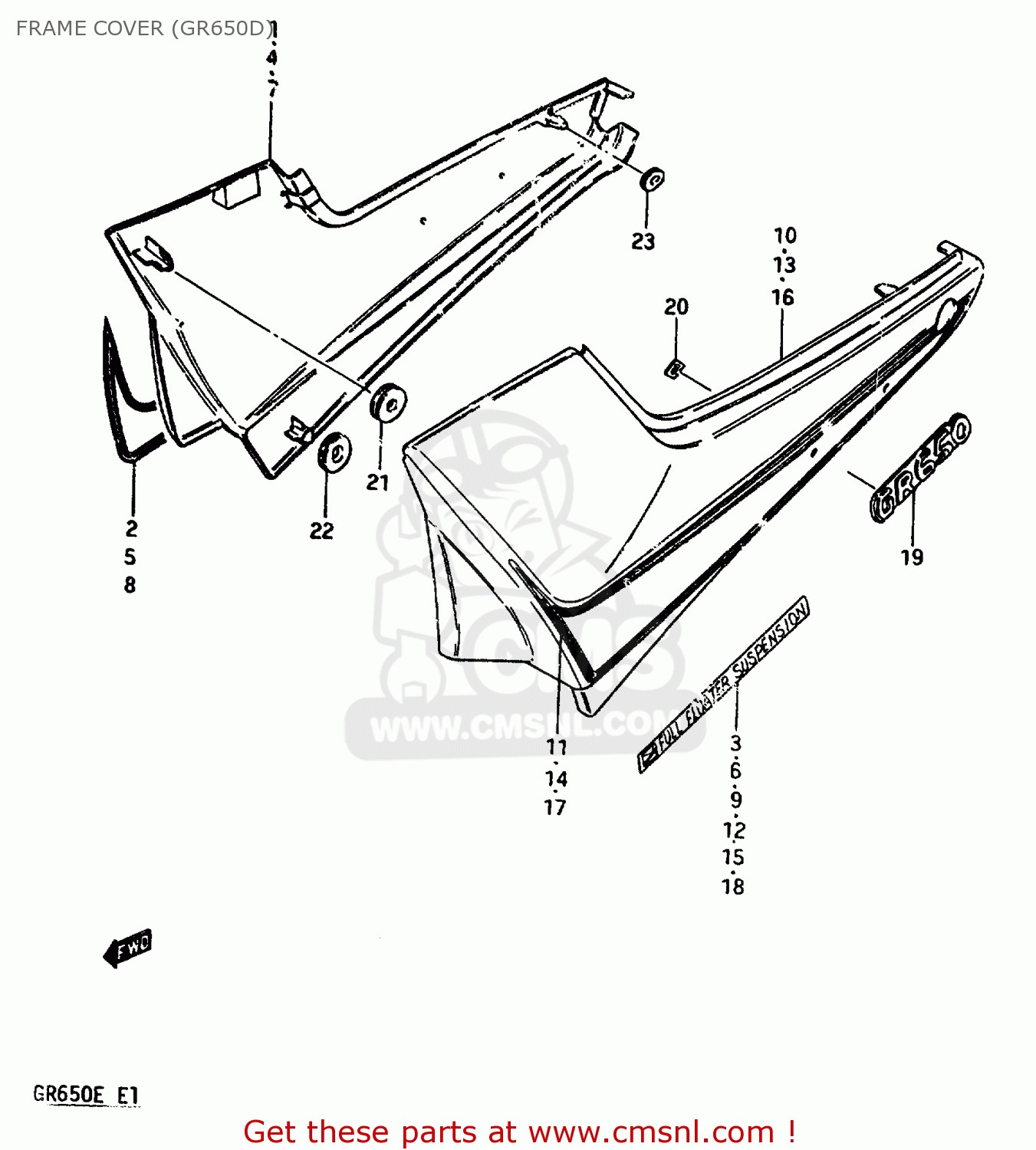

Frame cover (gr650d) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FRAME COVER (GR650D) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FRAME COVER (GR650D) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

1

471001584013L
ref: 1

COVER ASSEMBLY,FRAME,RIGHT

€ 82.00

2

681301550093C
ref: 2

TAPE SET,FRAME COVER,RIGHT

€ 0.00

3

682350470093W
ref: 3

EMBLEM

€ 0.00

4

471001585013L
ref: 4

COVER, FRAME RH (SILVER)

€ 82.00

5

681301550093D
ref: 5

TAPE, RH

€ 0.00

6

682350470093W
ref: 6

EMBLEM

€ 0.00

7

4711015500019
ref: 7

COVER, FRAME RH (BLACK)

€ 82.00

8

681301550082S
ref: 8

TAPE SET, FRAME COVER RH

€ 0.00

9

682350470093W
ref: 9

EMBLEM

€ 0.00

10

472001584013L
ref: 10

COVER ASSEMBLY,FRAME,LEFT

€ 104.50

11

681401550093C
ref: 11

TAPE, LH

€ 0.00

12

682350470093W
ref: 12

EMBLEM

€ 0.00

13

472001585013L
ref: 13

COVER, FRAME LH (SILVER)

€ 104.50

14

681401550093D
ref: 14

TAPE, LH

€ 0.00

15

682350470093W
ref: 15

EMBLEM

€ 0.00

16

4721015500019
ref: 16

COVER, FRAME LH (BLACK)

€ 104.50

17

681401550082S
ref: 17

TAPE SET, FRAME COVER LH

€ 0.00

18

682350470093W
ref: 18

EMBLEM

€ 0.00

19

6813115500
ref: 19

EMBLEM,FRAME COVER

€ 17.50

20

0914803002
ref: 20

NUT

€ 3.00

21

0932008018
ref: 21

CUSHION

€ 4.00

22

0932003005
ref: 22

CUSHION

€ 2.00

23

0932908003
ref: 23

CUSHION

€ 3.50
