GEAR SHIFTING

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

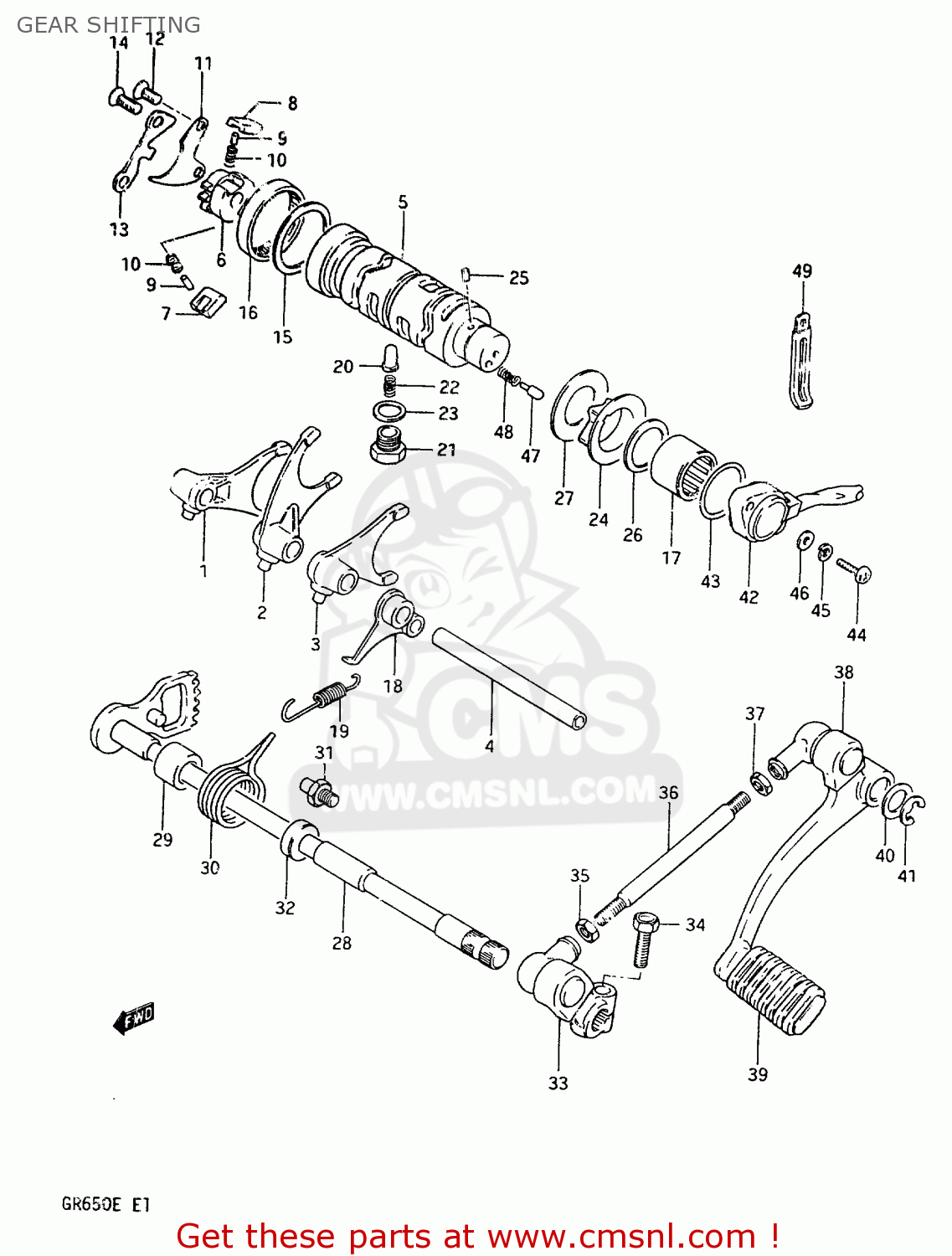

Gear shifting diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

GEAR SHIFTING GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
GEAR SHIFTING GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
GEAR SHIFTING GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
2521115500
ref: 1
FORK,GEAR SHIFT NO.1
€ 49.00
2
2522115500
ref: 2
FORK,GEAR SHIFT NO.2
€ 35.00
3
2523115500
ref: 3
FORK,GEAR SHIFT NO.3
€ 41.50
4
2541115501
ref: 4
SHAFT,GEAR SHIFT FORK
2541115501
€ 16.50
5
2531015500
ref: 5
CAM,GEAR SHIFT
€ 145.00
6
2532231300
ref: 6
RETAINER,GEAR SHIFT CAM
€ 14.50
7
2532334200
ref: 7
FROM 25323-11000
PAWL,GEAR SHIFT NO.1
€ 6.00
8
2532434200
ref: 8
FROM 25324-11000
PAWL,GEAR SHIFT NO.2
€ 6.00
9
0926105003
ref: 9
PIN(5X8)
0926105003
€ 1.50
10
0944004003
ref: 10
SPRING
0944004003
€ 1.50
11
2533115500
ref: 11
LIFTER,GEAR SHIFT PAWL
€ 3.00
12
0212206128
ref: 12
SCREW
0212206128
€ 3.00
13
2534109300
ref: 13
GUIDE,GEAR SHIFT CAM
€ 6.00
14
0212206168
ref: 14
SCREW
0212206168
€ 2.00
15
0916040006
ref: 15
WASHER (40X49X1)
0916040006
€ 1.50
16
0926343001
ref: 16
BEARING(43X49X12)
0926343001
€ 30.00
17
0926325018
ref: 17
BEARING(25X32X12)
0926325018
€ 17.50
18
2535015500
ref: 18
STOPPER,GEAR SHIFTING
€ 9.50
19
0944308034
ref: 19
SPRING
€ 3.00
20
2535131300
ref: 20
STOPPER,GEAR SHIFTING
2535131300
€ 6.50
21
2535430000
ref: 21
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
22
0944006027
ref: 22
SPRING
€ 3.00
23
0916814004
ref: 23
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
24
2538104700
ref: 24
PLATE,GEAR SHIFT CAM STOPPER
2538104700
€ 13.00
25
0621104063
ref: 25
PIN 4X6
0621104063
€ 2.00
26
0821125322
ref: 26
WASHER
€ 3.00
27
0916730007
ref: 27
WASHER,LOCK
€ 2.50
28
2551015500
ref: 28
SHAFT,GEAR SHIFT
2551015500
€ 62.00
29
0918012068
ref: 29
SPACER(12X20X15.3)
0918012068
€ 3.00
30
0944426017
ref: 30
SPRING
0944426017
€ 5.00
31
2567101000
ref: 31
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
32
0928512002
ref: 32
OIL SEAL
0928512002
€ 7.00
33
2552015501
ref: 33
ARM,GEAR SHIFT
€ 64.00
34
0110706208
ref: 34
BOLT
0110706208
€ 2.00
35
0831011068
ref: 35
NUT
0831011068
€ 2.50
36
2552534300
ref: 36
ROD,GEAR SHIFT LINK
2552534300
€ 12.00
37
0914006011
ref: 37
NUT
0914006011
€ 1.50
38
2560015501
ref: 38
LEVER ASSEMBLY,GEAR SHIFTING
2560015501
€ 57.50
39
2565249300
ref: 39
RUBBER,PEDAL
2565249300
€ 5.50
40
0916012011
ref: 40
WASHER(12.5X20X1)
0916012011
€ 1.50
41
0833131128
ref: 41
CIRCLIP
0833131128
€ 2.00
42
3772033200
ref: 42
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
3772033200
€ 92.50
43
0928026003
ref: 43
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
44
0211205208
ref: 44
SCREW 5X20
0211205208
€ 3.00
45
0832121058
ref: 45
LOCK WASHER
0832121058
€ 2.00
46
0832221058
ref: 46
WASHER
€ 2.50
47
0920905011
ref: 47
PIN(5X15.5)
0920905011
€ 2.00
48
0944004010
ref: 48
SPRING
0944004010
€ 1.50
49
0940406412
ref: 49
CLAMP
0940406412
€ 2.50
