TURN SIGNAL LAMP (E16,E18,E25,E26.E39)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

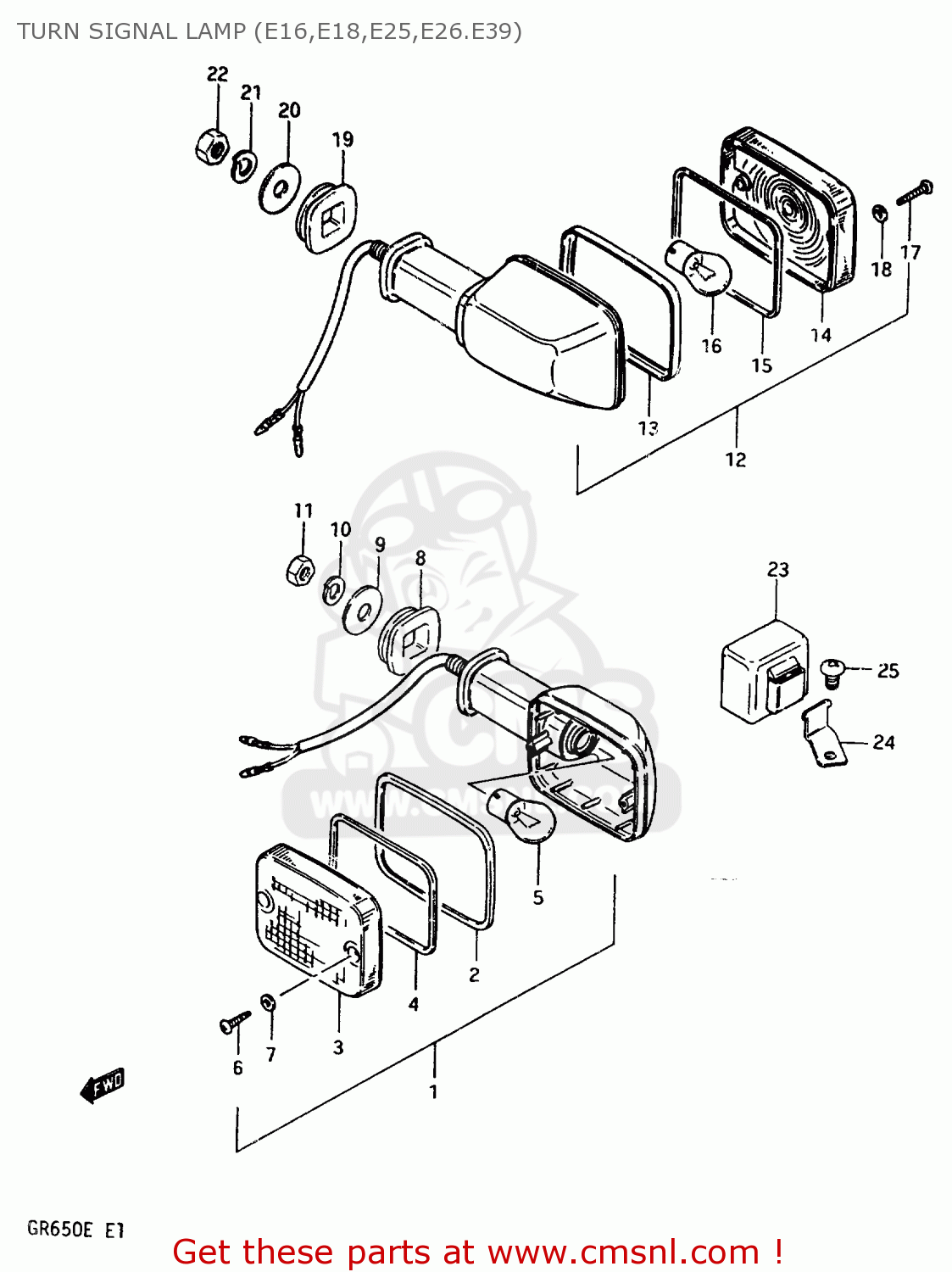

Turn signal lamp (e16,e18,e25,e26.e39) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

3560145180
ref: 1

LAMP ASSY, FRONT TURN SIGNAL

€ 86.50

3561149230
ref: 2

RIM

€ 11.00

3561249231
ref: 3

LENS

€ 13.00

3561349230
ref: 4

GASKET (NAS)

€ 5.00

0947112045
ref: 5
EXECUTEF LOCALLY

BULB(12V21W)

€ 5.00

0321104208
ref: 6

SCREW

€ 1.50

3562743010
ref: 7

GASKET (NAS)

€ 2.00

0932015005
ref: 8

CUSHION

€ 5.00

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

0832121108
ref: 10

LOCK WASHER

€ 2.00

0831012108
ref: 11

NUT

€ 2.50

3560334480
ref: 12

LAMP, REAR TURN SIGNAL

€ 88.50

3561149230
ref: 13

RIM

€ 11.00

3565244182
ref: 14

LENS

€ 13.00

3561349230
ref: 15

GASKET (NAS)

€ 5.00

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

0321104208
ref: 17

SCREW

€ 1.50

3562743010
ref: 18

GASKET (NAS)

€ 2.00

0932015004
ref: 19

CUSHION

€ 5.00

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

0832121108
ref: 21

LOCK WASHER

€ 2.00

0831012108
ref: 22

NUT

€ 2.50

23-1

3861045031
ref: 23-1
MODEL D

RELAY,TURN SIGNAL

€ 54.50

23-2

3861031310
ref: 23-2
MODEL E

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

3862115500
ref: 24

BRACKET,TURN SIGNAL RELAY

€ 0.00

0214206105
ref: 25

SCREW

€ 2.00
