HEADLAMP (E15,E16,E17,E18,E21,E22,E25,E26,E34,E39)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

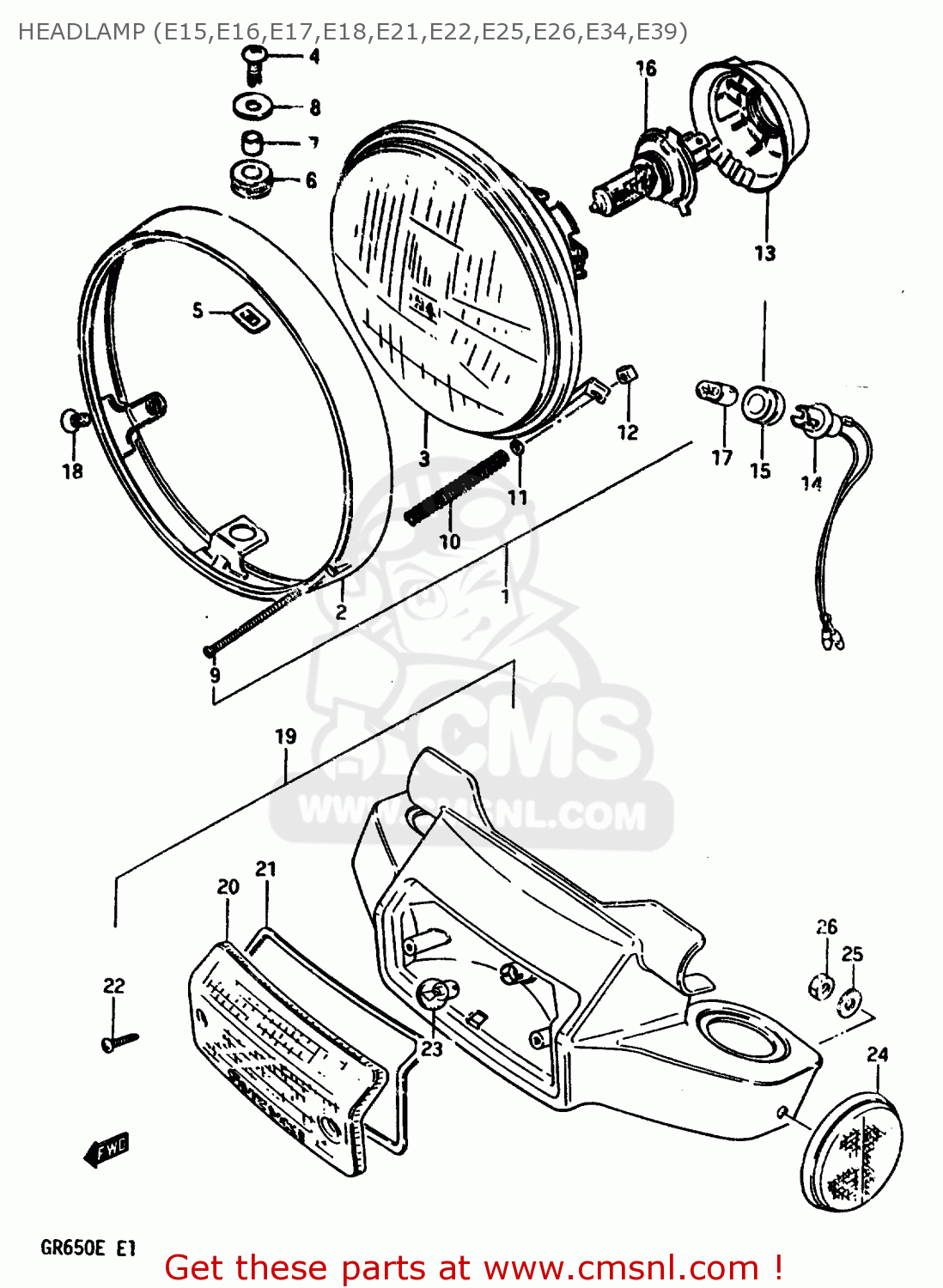

Headlamp (e15,e16,e17,e18,e21,e22,e25,e26,e34,e39) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

HEADLAMP (E15,E16,E17,E18,E21,E22,E25,E26,E34,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
HEADLAMP (E15,E16,E17,E18,E21,E22,E25,E26,E34,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
HEADLAMP (E15,E16,E17,E18,E21,E22,E25,E26,E34,E39) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1-1
3510015580999
ref: 1-1
GR650D/E
HEADLAMP ASSY
€ 266.00
1-2
3510015550999
ref: 1-2
GR650XD/XE
HEADLAMP ASSY
€ 183.50
2
3511115530
ref: 2
RIM,HEAD LAMP
3511115530
€ 56.50
3-1
3512115540
ref: 3-1
GR650D/E
UNIT
3512115540
€ 95.50
3-2
3512115550
ref: 3-2
GR650XD/XE
LAMP UNIT
€ 141.50
4
0912505102
ref: 4
SCREW(5X14)
0912505102
€ 2.50
5
3515548510
ref: 5
NUT
3515548510
€ 2.00
6
3513945230
ref: 6
CUSHION
3513945230
€ 1.50
7
3513345230
ref: 7
SPACER
3513345230
€ 2.00
8
3513845230
ref: 8
WASHER
3513845230
€ 2.00
9
3515115510
ref: 9
SCREW,HEADLAMP ADJUST
€ 3.00
10
3515427630
ref: 10
SPRING,HEADLAMP ADJUST
3515427630
€ 3.50
11
3515727630
ref: 11
WASHER
3515727630
€ 2.50
12
3513545600
ref: 12
NUT
3513545600
€ 3.00
13
3517345200
ref: 13
COVER,SOCKET
3517345200
€ 14.00
14
3611830691
ref: 14
GR650XD/XE
SOCKET
3611830691
€ 12.00
15
3611622630
ref: 15
GR650XD/XE
JOINT,RUBBER
3611622630
€ 5.00
16
0947112060
ref: 16
EXECUTED LOCALLY
BULB(12V60/55W,H4)
0947112060
€ 8.00
17
0947112063
ref: 17
GR650XD/XE EXECUTED
BULB(12V4W)
0947112063
€ 6.00
18
0912705013
ref: 18
SCREW(5X12)
0912705013
€ 2.50
19-1
3611015520
ref: 19-1
MODEL D:E15,E17,E18,
LAMP ASSY, FRONT POSITION
€ 103.50
19-2
3611015560
ref: 19-2
MODEL E E15,E17,E21,
LAMP ASSY, FRONT POSITION
€ 103.50
19-3
3611015531999
ref: 19-3
MODEL D E16,E39
LAMP ASSEMBLY,FRONT POSITION
€ 130.00
19-4
3611015580
ref: 19-4
MODEL E E16,E39
LAMP ASSY, FRONT POSITION
€ 130.00
19-5
3611015590
ref: 19-5
MODE D E22, TO 36110
LAMP ASSY, FRONT POSITION
€ 103.50
19-6
3611015570
ref: 19-6
MODEL E E22
LAMP ASSY, FRONT POSITION
3611015570
€ 103.50
20
3611215500
ref: 20
LENS
3611215500
€ 15.50
21
3611315500
ref: 21
GASKET,POSITION LAMP
€ 0.00
22
3611715500
ref: 22
SCREW,POSITION LENS
3611715500
€ 1.50
23
0947112063
ref: 23
EXECUTED LOCALLY
BULB(12V4W)
0947112063
€ 6.00
24
3595015530
ref: 24
E16, E19
REFLEX REFLECTOR ASSEMBLY
€ 14.50
25
0832221056
ref: 25
WASHER
€ 2.50
26
0831011056
ref: 26
NUT
€ 2.50
