BATTERY

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

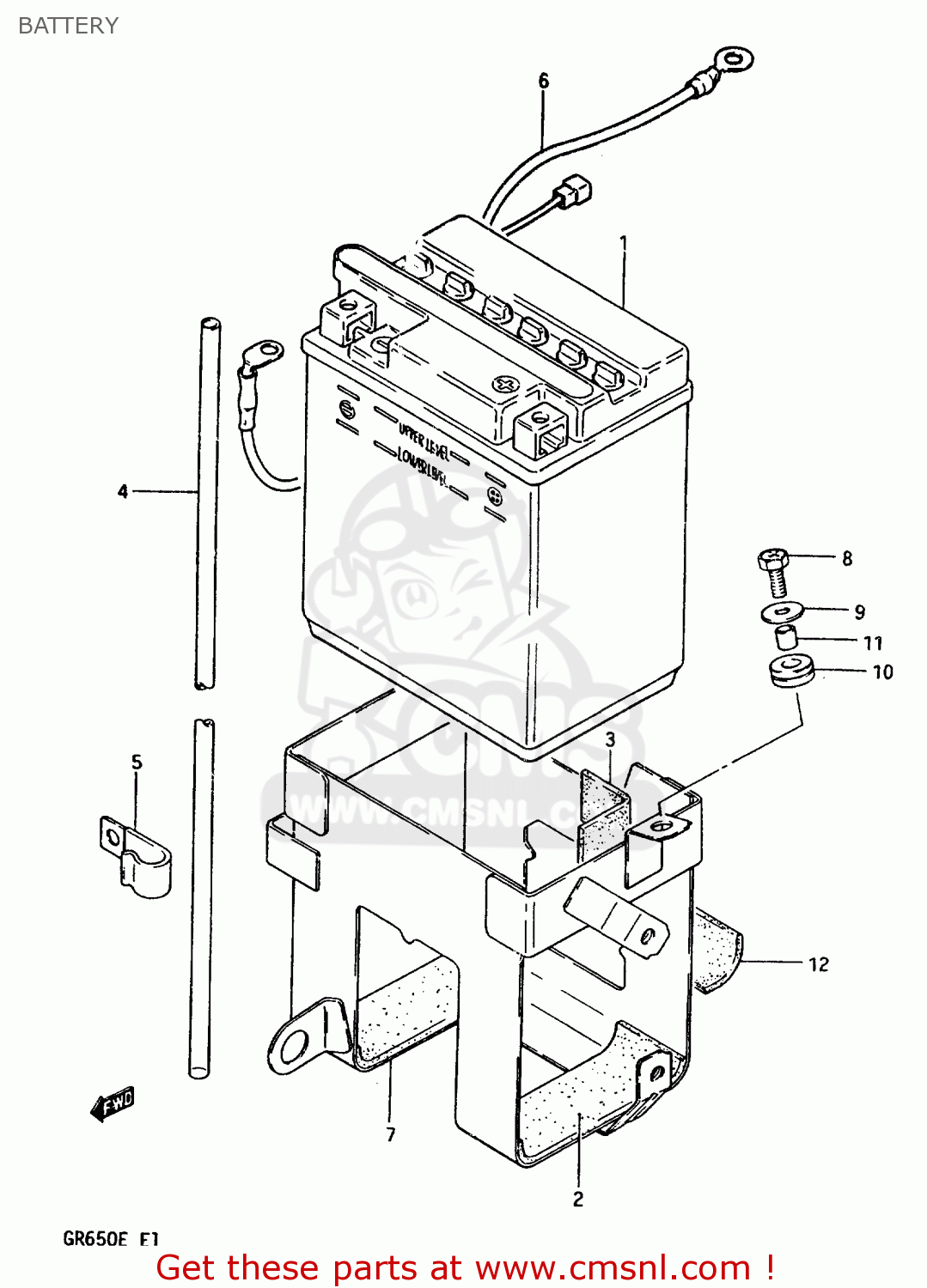

Battery diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

prices are in EUR

ref

part #

description

quantity

3361049210
ref: 1

BATTERY ASSY (12V)

€ 110.00

3365137000
ref: 2
CUT AS REQUIRED PROF

PROTECTOR(170X95X3.0)

€ 5.00

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

3368031003
ref: 4

HOSE,BATTERY EXHAUST

€ 4.50

0940309303
ref: 5

CLAMP

€ 5.50

3385015500
ref: 6

WIRE,STARTER MOTOR LEAD

€ 15.00

4154015500
ref: 7

HOLDER,BATTERY

€ 0.00

0912806039
ref: 8

SCREW

€ 2.00

0916006060
ref: 9

WASHER

€ 2.00

0932008007
ref: 10

CUSHION

€ 4.00

0918006038
ref: 11

SPACER(6.1X9X7.5)

€ 2.00

4154915500
ref: 12

CUSHION,BATTERY HOLDER

€ 0.00
