FUEL TANK (GR650D)

GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

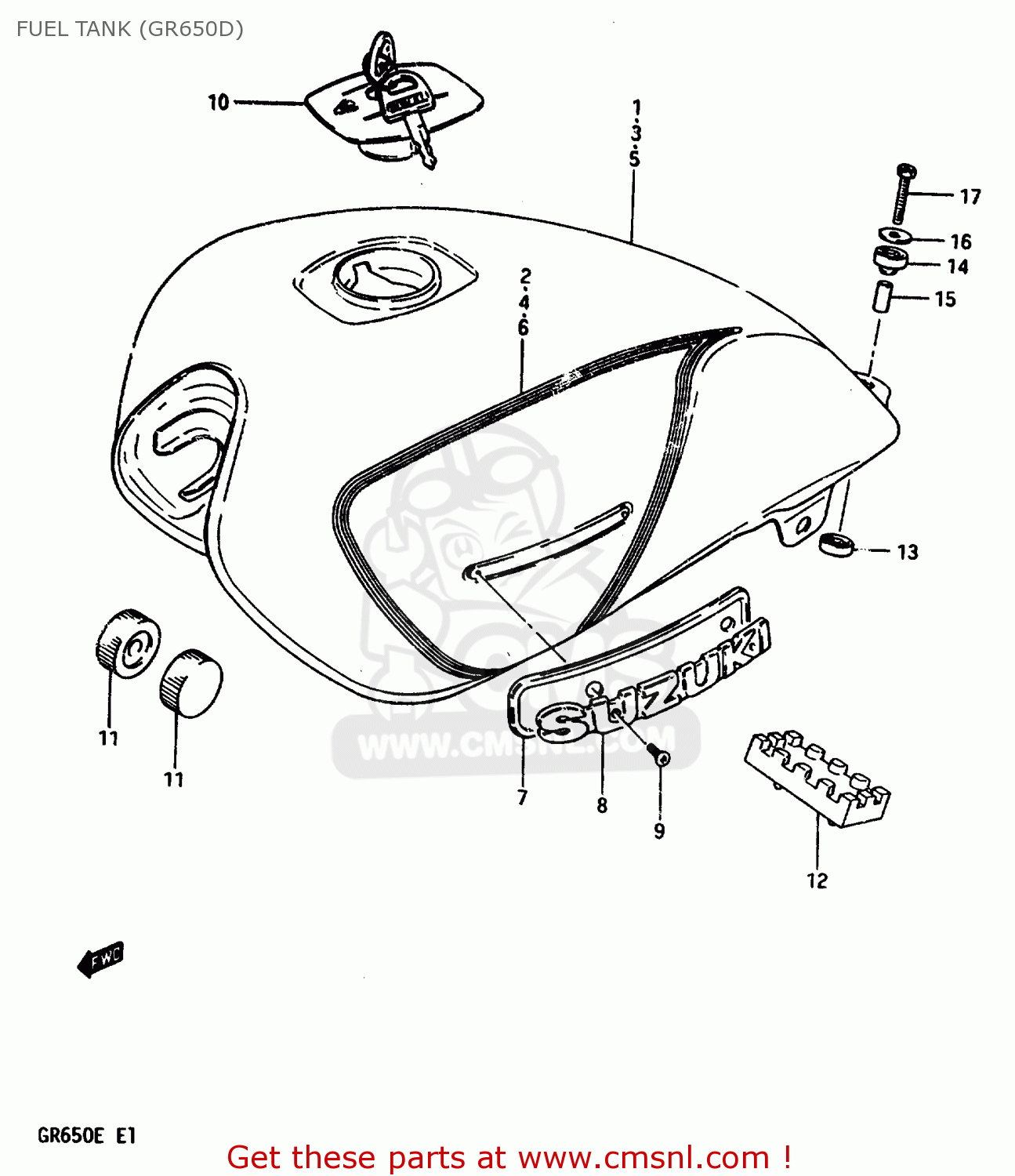

Fuel tank (gr650d) diagram GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

FUEL TANK (GR650D) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
FUEL TANK (GR650D) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
FUEL TANK (GR650D) GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)
prices are in EUR
ref
part #
description
quantity
1
441001550088F
ref: 1
TANK ASSEMBLY,FUEL
€ 364.50
2
681101550093C
ref: 2
TAPE SET,FUEL TANK
€ 0.00
3
441001550087B
ref: 3
TANK, FUEL
€ 364.50
4
681101550093D
ref: 4
TAPE SET
€ 0.00
5
441001550086M
ref: 5
TANK ASSY, FUEL
€ 364.50
6
681101550082S
ref: 6
TAPE SET, FUEL TANK
€ 0.00
7
4417544200
ref: 7
E22,E25
CUSHION
4417544200
€ 5.00
8
6811115500
ref: 8
EMBLEM,FUEL TANK
6811115500
€ 28.50
9
0213203065
ref: 9
SCREW 3X6
0213203065
€ 2.00
10
4420049017KEY
ref: 10
CAP SET,FUEL TANK
€ 121.00
11
0932910016
ref: 11
CUSHION
0932910016
€ 3.00
12
4454134500
ref: 12
CUSHION,FUEL TANK CTR
4454134500
€ 13.00
13
0932014013
ref: 13
CUSHION
0932014013
€ 3.00
14
0932010020
ref: 14
CUSHION
0932010020
€ 4.00
15
0918006118
ref: 15
SPACER
0918006118
€ 3.00
16
0916006004
ref: 16
WASHER (6.5X24X1.6)
0916006004
€ 1.50
17
0110706308
ref: 17
BOLT
0110706308
€ 2.50
