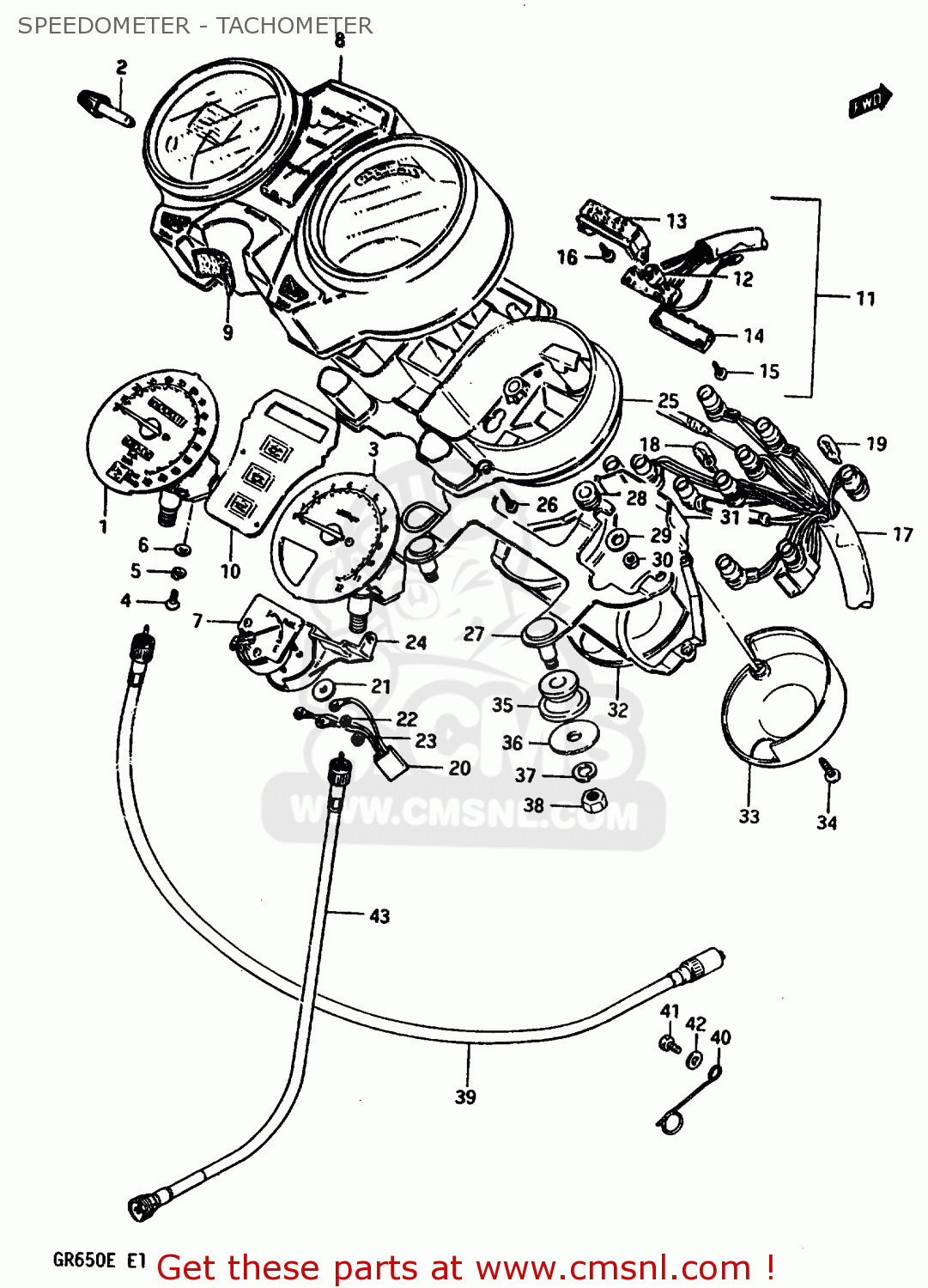

SPEEDOMETER - TACHOMETER - GR650X 1984 (E) GENERAL EXPORT GERMANY AUSTRALIA (E01 E22 E24)

ref

part #

description

quantity

1-1

3412015520
ref: 1-1

SPEEDOMETER

€ 0.00

1-2

3412015510
ref: 1-2

SPEEDOMETER (KILO)

€ 261.00

1-3

3412015540
ref: 1-3
E16,E18,E22,E26

SPEEDOMETER (KILO)

€ 261.00

2

3412449400
ref: 2

KNOB,TRIP

€ 4.50

3

3422015510
ref: 3

METER,TACHOMETER

€ 184.00

4

0211204108
ref: 4

SCREW 4X10

€ 2.00

5

0832121048
ref: 5

LOCK WASHER

€ 2.00

6

0832221048
ref: 6

WASHER

€ 2.00

7

3432015510
ref: 7

METER,FUEL

€ 73.00

8

3415015510
ref: 8

HOOD,METER

€ 105.00

9

3499347000
ref: 9

SEAL,IGNITION SWITCH

€ 3.00

10

3638615510
ref: 10

PLATE,PILOT BOX

€ 17.50

11

3645034561
ref: 11

INDICATOR ASSEMBLY,GEAR POSITION

€ 117.00

12

0947112071
ref: 12

BULB(14V1.12W)

€ 5.00

13

3645249401
ref: 13

CASE,GEAR INDICATOR

€ 12.50

14

3645445100
ref: 14

COVER,LWR

€ 7.00

15

3645645100
ref: 15

SCREW,GEAR INDICATOR

€ 2.00

16

3645633220
ref: 16

SCREW,INDICATOR

€ 1.50

17-1

3417315510
ref: 17-1

SOCKET,PILOT CASE

€ 0.00

17-2

3417315540
ref: 17-2
E16,E18,E22,E26

SOCKET

€ 0.00

18

0947112028
ref: 18

BULB(12V3.4W,T10)

€ 3.50

19

0947112077
ref: 19

BULB(12V1.7W,T10,WB121)

€ 1.00

20

3437815510
ref: 20

LEAD WIRE, FUELMETER

€ 14.50

21

3438433220
ref: 21

WASHER,FUEL METER

€ 2.00

22

0832121038
ref: 22

LOCK WASHER

€ 1.50

23

0831011038
ref: 23

NUT 3MM

€ 2.00

24

3495115510
ref: 24

BRACKET,FUEL METER

€ 7.50

25-1

3411115510
ref: 25-1

CASE,METER INNER

€ 88.00

25-2

3411115540
ref: 25-2
E16,E18,E22,E26

CASE,METER

€ 88.00

26

3645615510
ref: 26

SCREW,PILOT BOX

€ 1.50

27

3495015510
ref: 27

BRACKET,COMBINATION METER

€ 64.50

28

3418915510
ref: 28

CUSHION

€ 5.00

29

0916005017
ref: 29

WASHER (5.5X16X1.2)

€ 2.50

30

0831011058
ref: 30

NUT

€ 2.50

31

3638315510
ref: 31

COVER,LWR

€ 24.00

32

3419315510
ref: 32

COVER,METER,UNDER

€ 30.00

33

3429315510
ref: 33

COVER,METER UNDER

€ 36.00

34

3645615520
ref: 34

SCREW

€ 1.50

35

3495631001
ref: 35

CUSHION,METER BRACKET

€ 4.50

36

0916008057
ref: 36

WASHER (8.5X20X1.6)

€ 2.00

37

0832121085
ref: 37

LOCK WASHER

€ 2.50

38

0831011085
ref: 38

NUT

€ 1.50

39

3491015500
ref: 39

CABLE ASSY,SPEEDOMETER

€ 22.00

40

3493845100
ref: 40

CLAMP,SPEEDOMETER CABLE

€ 14.50

41

0110706168
ref: 41

BOLT, UPPER

€ 3.00

42

0832221068
ref: 42

WASHER

€ 2.00

43

3494045211
ref: 43

CABLE ASSEMBLY,TACHOMETER

€ 18.50
