AIR CLEANER

GS550D 1980 (T) (E02 E15 E22 E24 E25)

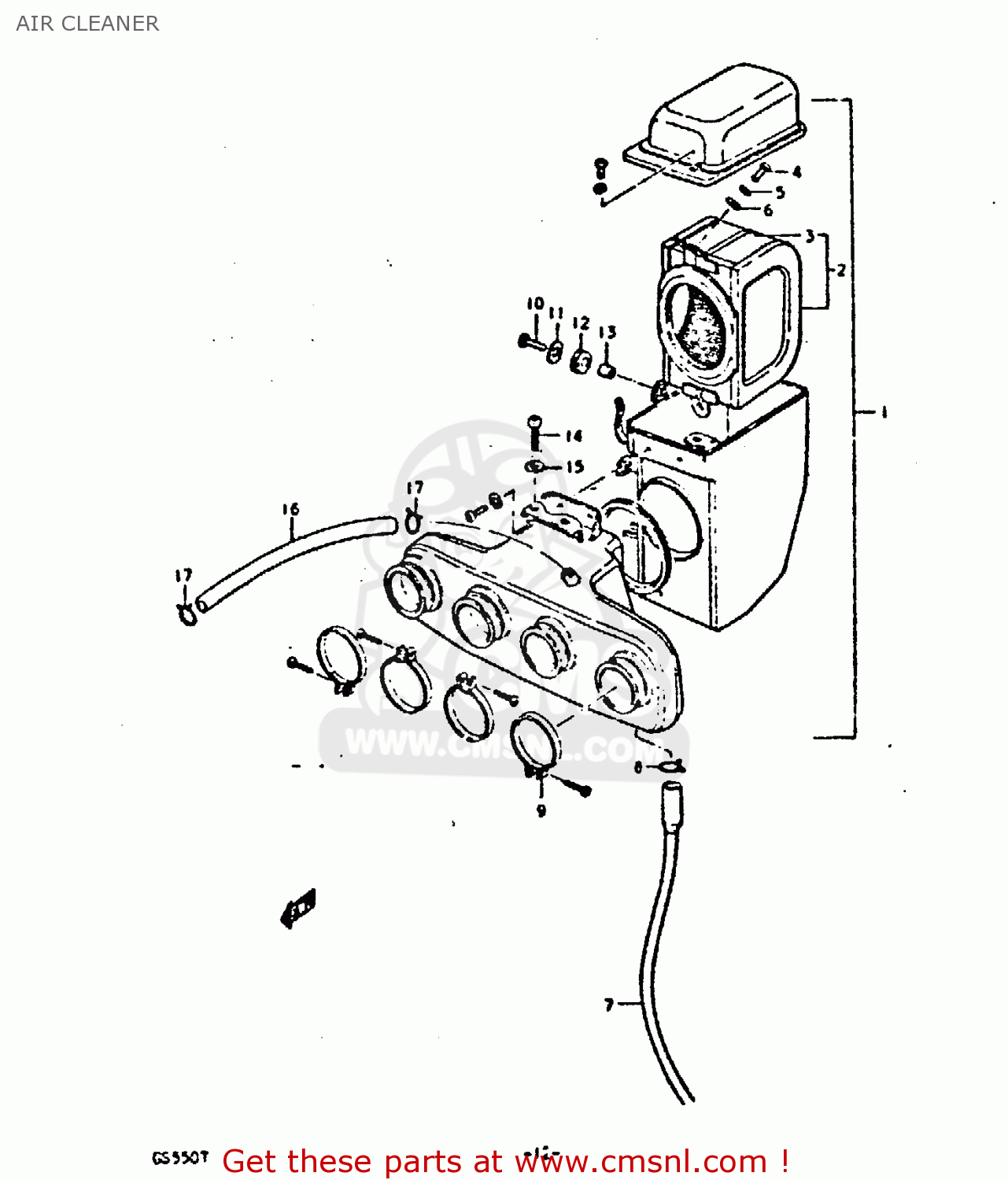

Air cleaner diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1370047040
ref: 1

CLEANER ASSY, AIR

€ 171.00

1378047040
ref: 2

FILTER ASSY

€ 57.00

1378147030
ref: 3

FILTER

€ 21.00

0211205108
ref: 4

SCREW

€ 2.00

0832121058
ref: 5

LOCK WASHER

€ 2.00

0832221058
ref: 6

WASHER

€ 2.50

1379044010
ref: 7

HOLDER,FILTER

€ 13.50

0940114301
ref: 8

CLIP

€ 2.00

0940260205
ref: 9

CLAMP

€ 4.50

0110706208
ref: 10

BOLT

€ 2.00

0916006007
ref: 11

WASHER

€ 2.00

0932008001
ref: 12

CUSHION

€ 3.50

0918006011
ref: 13

SPACER (6.1X9X9)

€ 2.00

0211206128
ref: 14

SCREW 6X12

€ 2.00

0832221068
ref: 15

WASHER

€ 2.00

0934311001
ref: 16

HOSE

€ 30.00

0940114301
ref: 17

CLIP

€ 2.00
