REAR WHEEL (CAST WHEELS)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

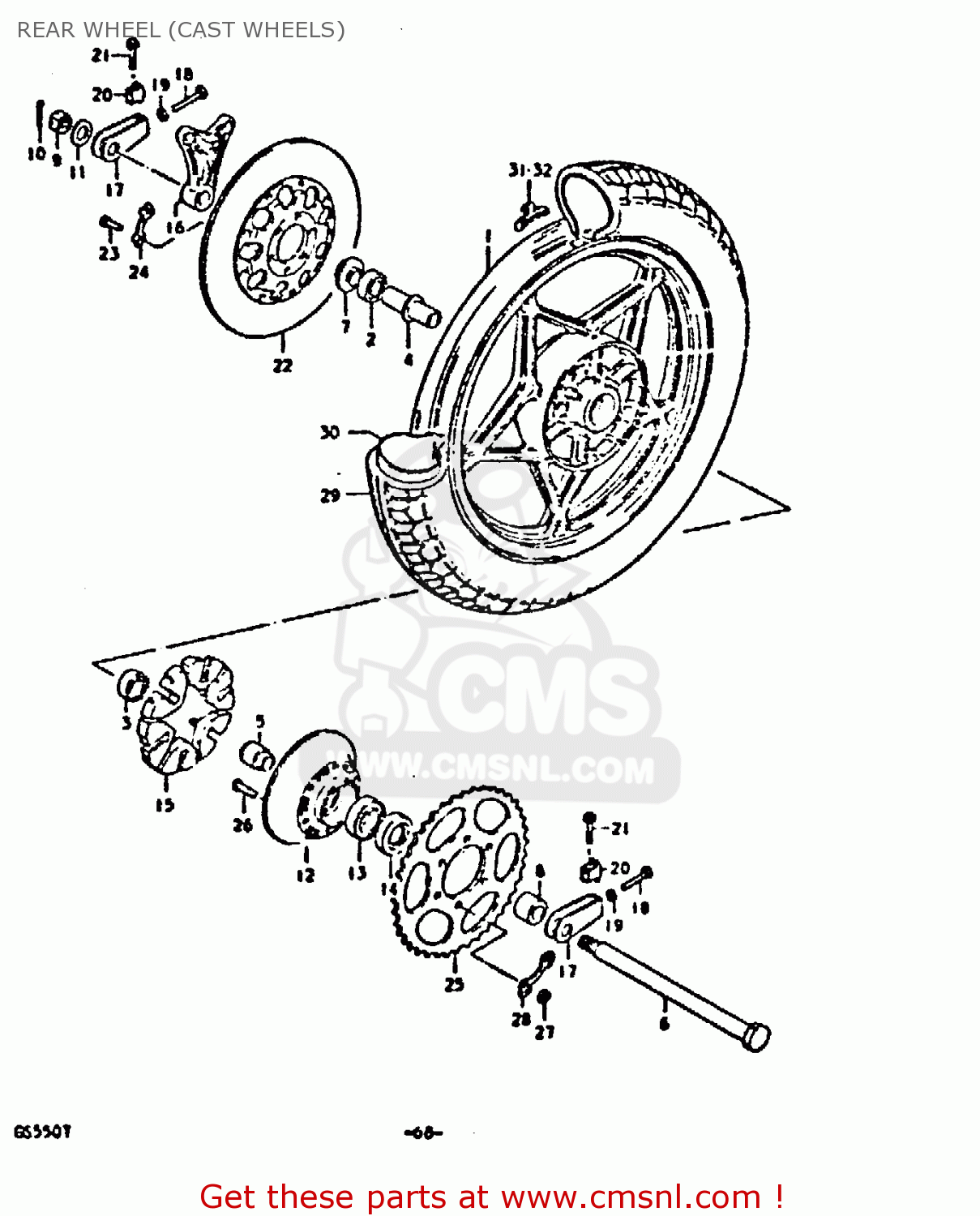

Rear wheel (cast wheels) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

REAR WHEEL (CAST WHEELS) GS550D 1980 (T) (E02 E15 E22 E24 E25)
REAR WHEEL (CAST WHEELS) GS550D 1980 (T) (E02 E15 E22 E24 E25)
REAR WHEEL (CAST WHEELS) GS550D 1980 (T) (E02 E15 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1
6411147602
ref: 1
WHEEL, REAR
€ 420.00
2
0813363037
ref: 2
BEARING
0813363037
€ 28.50
3
0815363037
ref: 3
BEARING
0815363037
€ 19.50
4
6473145000
ref: 4
SPACER,REAR HUB BEARING
6473145000
€ 18.50
5
6473347000
ref: 5
RETAINER,REAR SPROCKET D
€ 16.50
6
6471147000
ref: 6
AXLE,REAR
6471147000
€ 45.00
7
6474047001
ref: 7
SPACER,REAR AXLE
6474047001
€ 12.50
8
0918017048
ref: 8
SPACER (17X33X21.1)
0918017048
€ 7.50
9-1
0914116001
ref: 9-1
NUT
0914116001
€ 6.50
9-2
NOTUSED
ref: 9-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
10
0411140308
ref: 10
PIN,COTTER
0411140308
€ 1.50
11-1
0916017013
ref: 11-1
WASHER (17X30X3.2)
0916017013
€ 2.00
11-2
NOTUSED
ref: 11-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
12
6461131000
ref: 12
DRUM,REAR SPROCKET MOUNT
€ 140.00
13
0811363050
ref: 13
BEARING
0811363050
€ 21.50
14
0928533001
ref: 14
SEAL,OIL(33X62X7)
0928533001
€ 20.00
15
6465131000
ref: 15
ABSORBER,REAR HUB SHOCK
6465131000
€ 9.50
16
6972147001
ref: 16
BRACKET,RR,CALIPER
6972147001
€ 27.50
17
6141033000
ref: 17
ADJUSTER,CHAIN
6141033000
€ 58.00
18
0910408006
ref: 18
BOLT
0910408006
€ 3.00
19
0831012088
ref: 19
NUT
0831012088
€ 2.00
20
6143331000
ref: 20
SUPPORTER,CHAIN ADJUST
6143331000
€ 22.50
21
0151708506
ref: 21
BOLT
€ 2.50
22
5921018401
ref: 22
DISC,BRAKE
€ 208.50
23
0910008094
ref: 23
BOLT(8X30)
0910008094
€ 2.50
24
0916908016
ref: 24
WASHER
0916908016
€ 3.50
25
6451147600
ref: 25
SPROCKET,RR
6451147600
€ 57.00
26
0911910002
ref: 26
BOLT
0911910002
€ 3.50
27
0831012108
ref: 27
NUT
0831012108
€ 2.50
28
0916910007
ref: 28
WASHER
0916910007
€ 7.50
29-1
6510047036
ref: 29-1
TIRE
€ 79.50
29-2
6510047620
ref: 29-2
E2
TIRE (3.75H18)
€ 0.00
30-1
6520049015
ref: 30-1
TUBE,INNER
€ 39.00
30-2
6520047620
ref: 30-2
E2
TUBE ASSEMBLY,WHEEL,INNER
€ 0.00
31
5541147001
ref: 31
BALANCER,WHEEL
5541147001
€ 4.00
32
5541247001
ref: 32
BALANCER,WHEEL
5541247001
€ 3.50
