CYLINDER

GS550D 1980 (T) (E02 E15 E22 E24 E25)

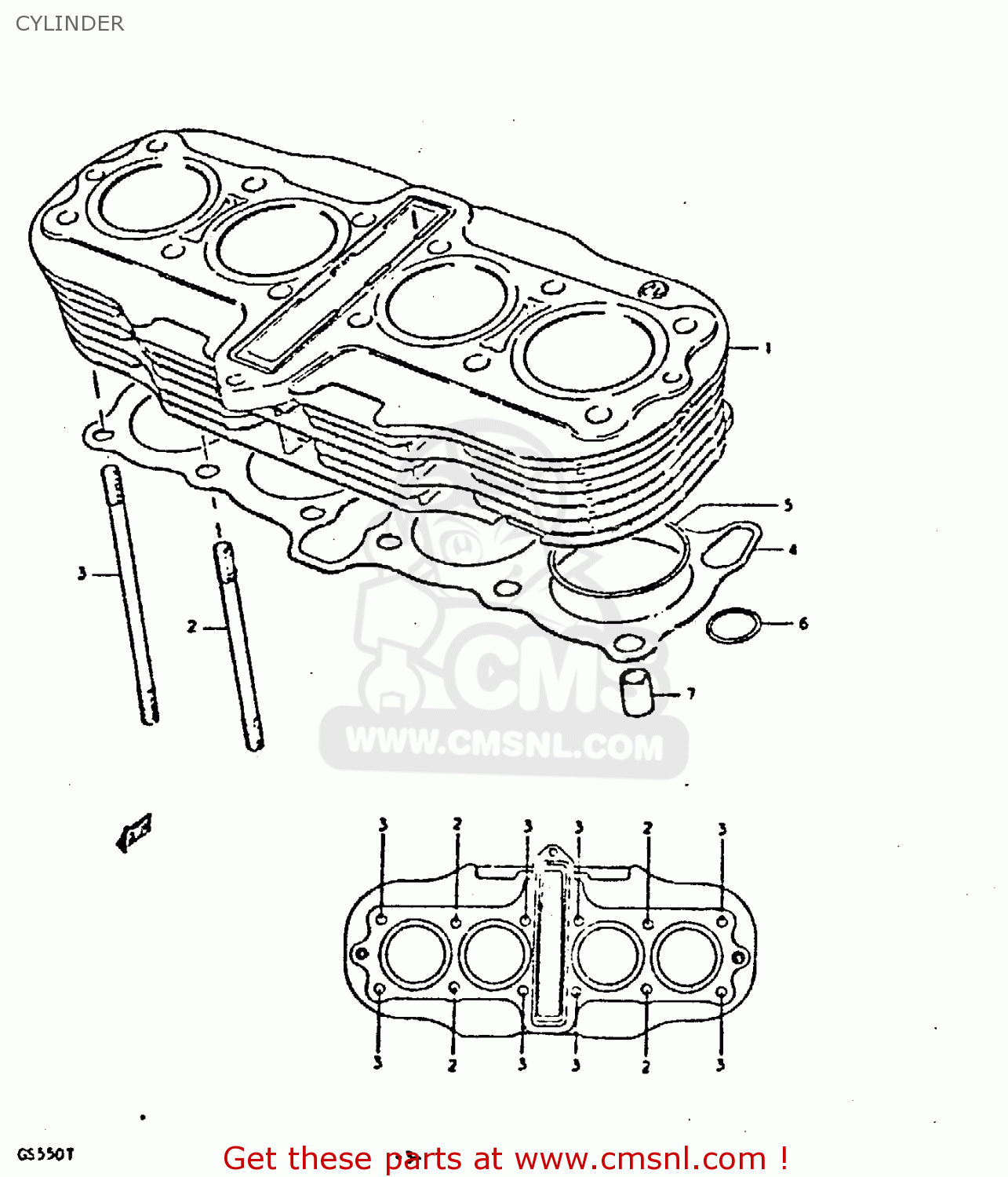

Cylinder diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

CYLINDER GS550D 1980 (T) (E02 E15 E22 E24 E25)

CYLINDER GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1121047003
ref: 1

CYLINDER

€ 945.00

2

0910808061
ref: 2

BOLT,STUD

€ 7.00

3

0910808062
ref: 3

BOLT,STUD

€ 4.50

4

1124147081
ref: 4

GASKET,CYLINDER (MCA)

€ 14.00

5

0928061001
ref: 5

O RING(D:2,ID:61)

€ 4.00

6

0928021005A
ref: 6

INVALID PARTNUMBER

€ 2.00

7

0920613001
ref: 7

PIN

€ 2.50
