REAR FENDER EXTENSION

GS550D 1980 (T) (E02 E15 E22 E24 E25)

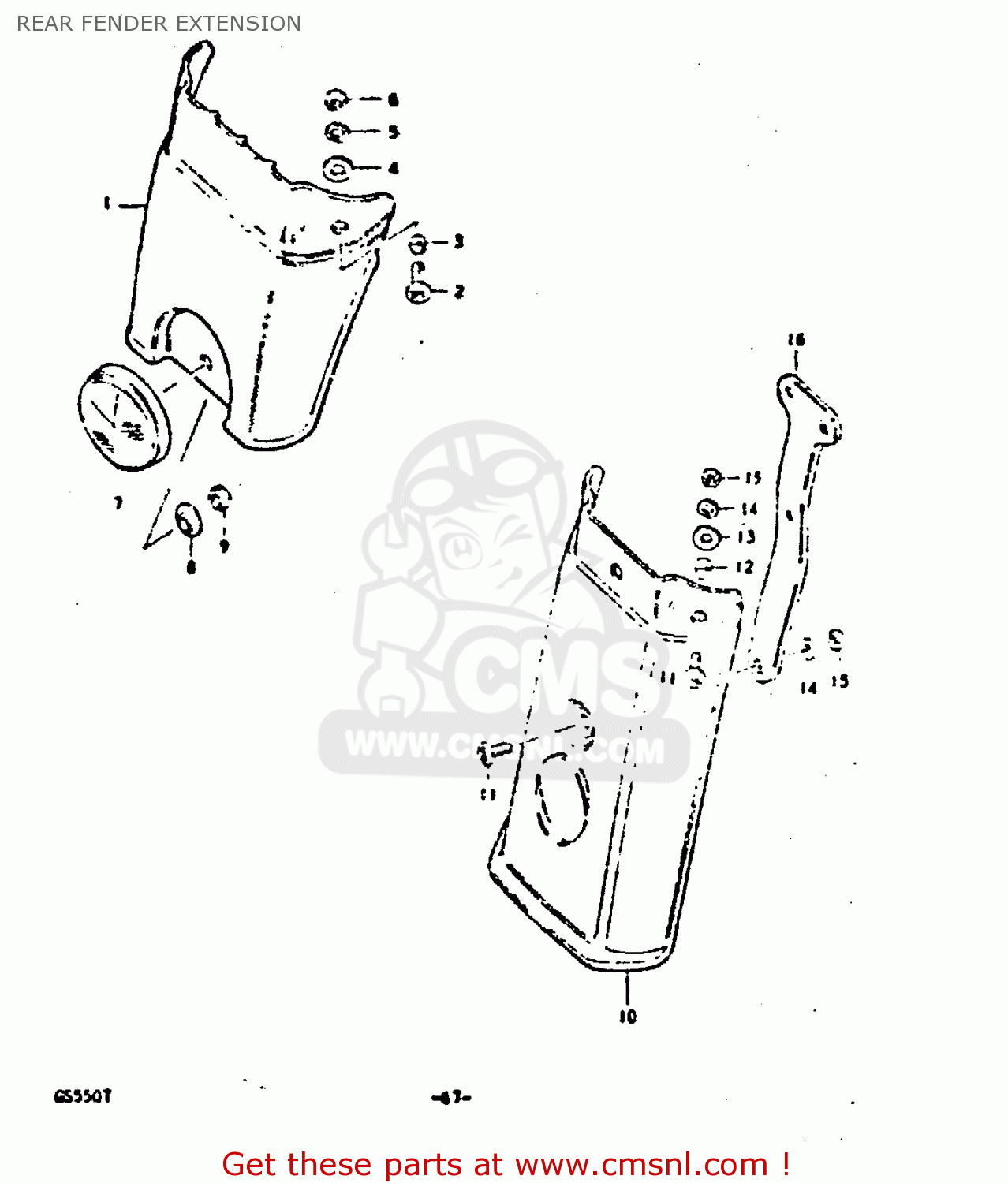

Rear fender extension diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

REAR FENDER EXTENSION GS550D 1980 (T) (E02 E15 E22 E24 E25)

REAR FENDER EXTENSION GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

6331145000
ref: 1
E22, E26

EXTENSION, REAR FENDER

€ 7.50

2

0912506009
ref: 2
E22, E26

SCREW (6X15)

€ 3.00

3

0918006001
ref: 3
E22, E26

SPACER(6.2X8.3X5.7)

€ 2.00

4

0916006028
ref: 4
E22, E26

WASHER(6.5X18X1)

€ 1.50

5

0832121068
ref: 5
E22, E26

LOCK WASHER

€ 2.50

6

0831011068
ref: 6
E22, E26

NUT

€ 2.50

7

3597045611
ref: 7
E22, E26

REFLECTOR,REFLEX

€ 47.50

8

0918006048
ref: 8
E22, E26

SPACER

€ 2.00

9

0831011058
ref: 9
E22, E26

NUT

€ 2.50

10

6331145610
ref: 10
E15, E18

EXTENSION, REAR FENDER

€ 0.00

11

0912506009
ref: 11
E15, E18

SCREW (6X15)

€ 3.00

12

0918006001
ref: 12
E15, E18

SPACER(6.2X8.3X5.7)

€ 2.00

13

0916006028
ref: 13
E15, E18

WASHER(6.5X18X1)

€ 1.50

14

0832121068
ref: 14
E15, E18

LOCK WASHER

€ 2.50

15

0831011068
ref: 15
E15, E18

NUT

€ 2.50

16

6331245000
ref: 16
E15, E18

BRACE, REAR FENDER EXTENSION

€ 3.50
