REAR COMBINATION LAMP (E18, E26)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

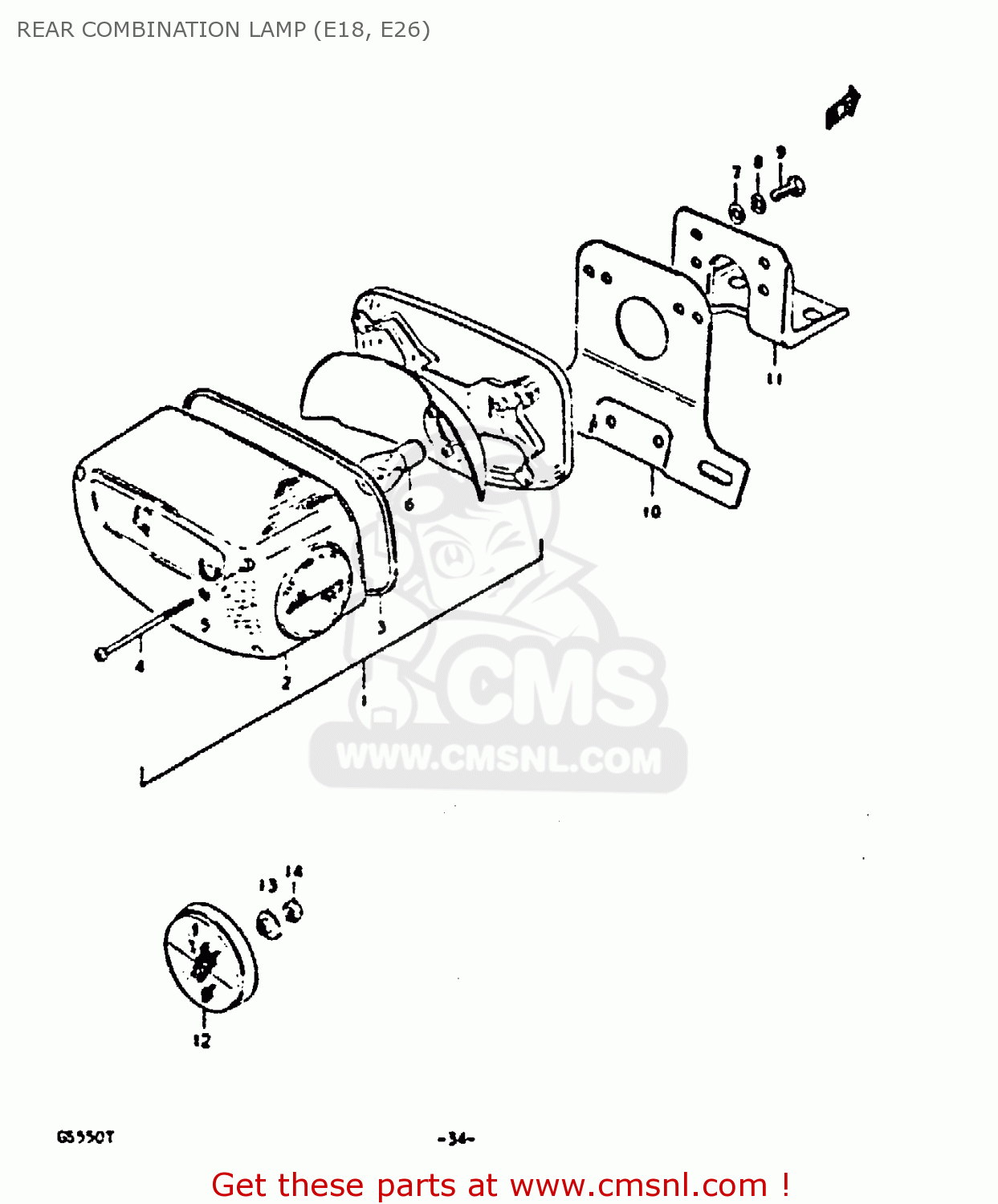

Rear combination lamp (e18, e26) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3571047600999
ref: 1

LAMP ASSY, REAR COMBINATION

€ 0.00

3571247601
ref: 2

LENS

€ 41.00

3571345010
ref: 3

GASKET (NAS)

€ 9.00

0211104558
ref: 4

SCREW

€ 1.50

3562743010
ref: 5

GASKET (NAS)

€ 2.00

0947112046
ref: 6
PHILIPS @wK15827

BULB(12V21/5W)

€ 1.50

0832221068
ref: 7

WASHER

€ 2.00

0832121068
ref: 8

LOCK WASHER

€ 2.50

0110706128
ref: 9

BOLT

€ 2.00

3592745604
ref: 10

PLATE, LICENCE

€ 14.00

3592845001
ref: 11

BRACKET,LICENSE PLATE

€ 8.50

3597045611
ref: 12
E26

REFLECTOR,REFLEX

€ 47.50

0918006048
ref: 13
E26

SPACER

€ 2.00

0831011058
ref: 14
E26

NUT

€ 2.50
