MASTER CYLINDER (SINGLE DISK)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

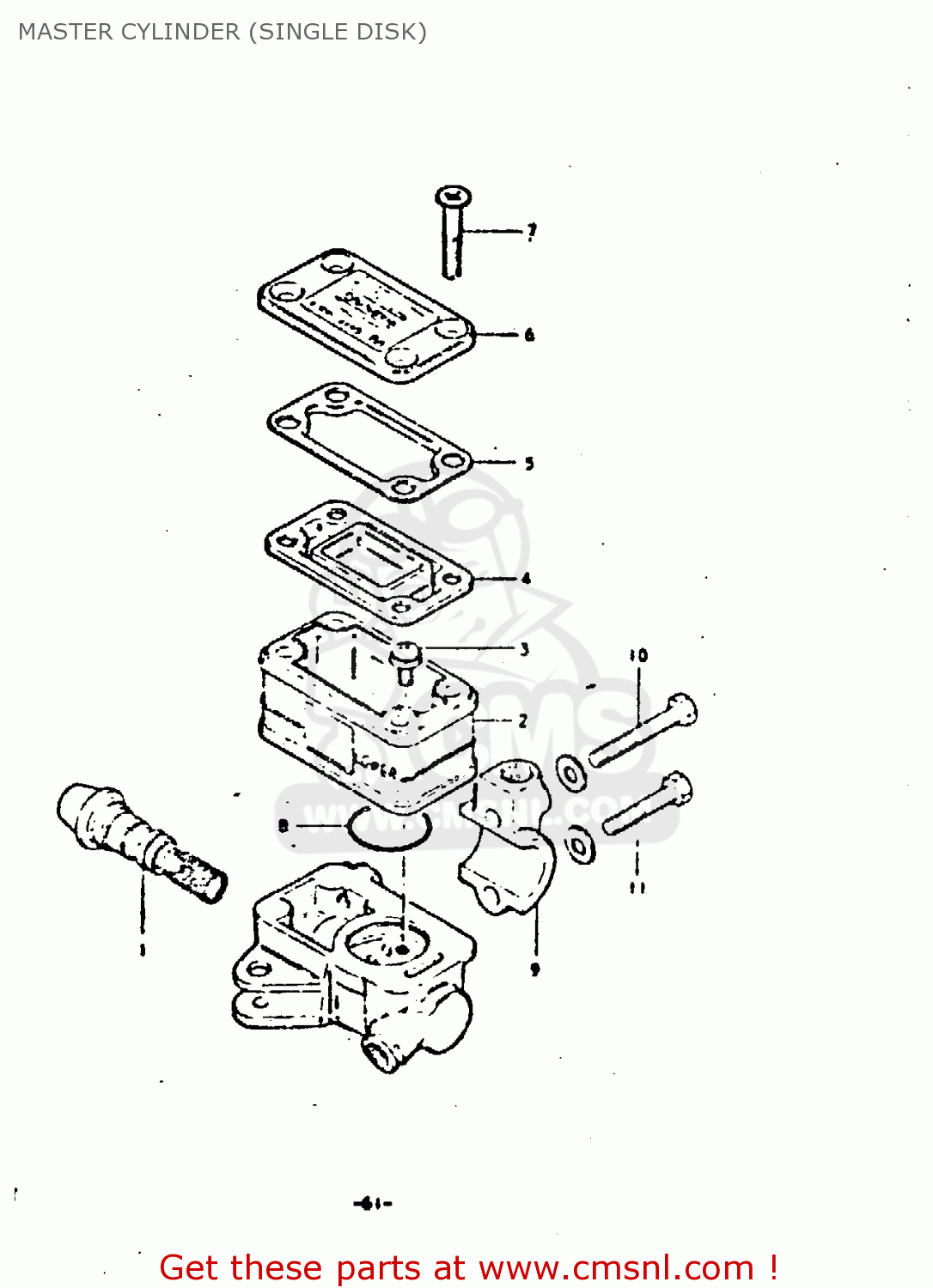

Master cylinder (single disk) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

5960049100
ref: 0

CYLINDER ASSY, MASTER

€ 176.50

5960049820
ref: 1

PISTON & CUP SET

€ 61.00

5968749000
ref: 2

RESERVOIR

€ 24.00

5968849000
ref: 3

SCREW,MASTER C

€ 1.00

5966749000
ref: 4

DIAPHRAGM

€ 19.50

5966849000
ref: 5

PLATE,DIAPHRAGM

€ 7.00

5966949000
ref: 6

CAP

€ 25.00

5969149000
ref: 7

SCREW

€ 4.50

5968649000
ref: 8

O RING

€ 6.50

5967149000
ref: 9

HOLDER

€ 22.50

5969449000
ref: 10

BOLT,MASTER CYLINDER H

€ 3.00

5969349000
ref: 11

BOLT,MASTER CYLINDER H

€ 4.00
