TURN SIGNAL LAMP (E2, E4, E34)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

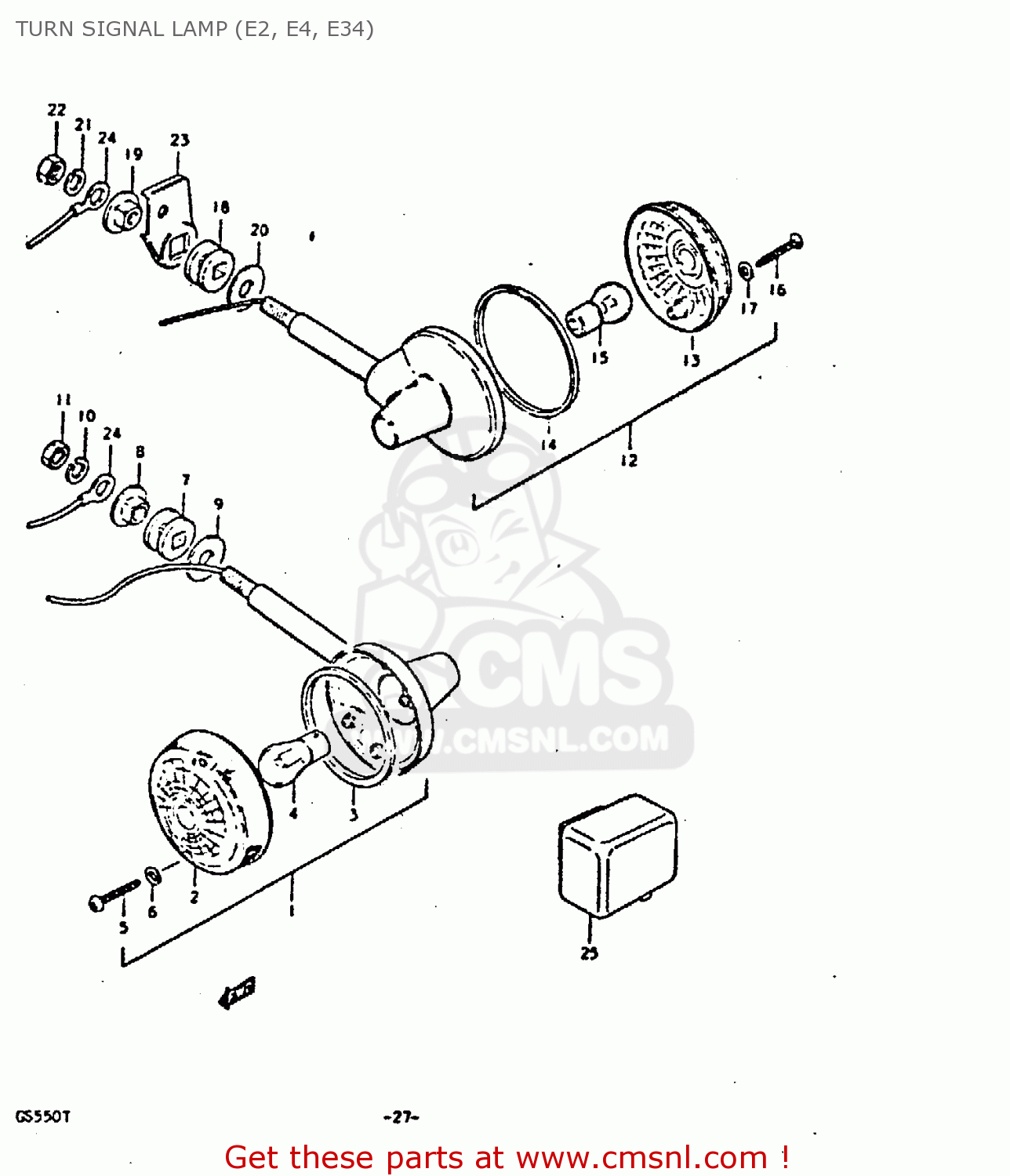

Turn signal lamp (e2, e4, e34) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

TURN SIGNAL LAMP (E2, E4, E34) GS550D 1980 (T) (E02 E15 E22 E24 E25)

TURN SIGNAL LAMP (E2, E4, E34) GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

3560144021
ref: 1

LAMP ASSY, FRONT TURN SIGNAL

€ 80.50

2

3561228620
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0947112056
ref: 4

BULB 12V 21W

€ 5.00

5

3562347610
ref: 5

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

3569032200
ref: 7

CUSHION

€ 38.50

8

3569532200
ref: 8

SPACER,RR TURNSIGNAL LAMP

€ 42.00

9

3562944000
ref: 9

WASHER

€ 4.50

10

0832121108
ref: 10

LOCK WASHER

€ 2.00

11

0831012108
ref: 11

NUT

€ 2.50

12

3560144021
ref: 12

LAMP ASSY, FRONT TURN SIGNAL

€ 80.50

13

3561228620
ref: 13

LENS

€ 10.50

14

3561328620
ref: 14

GASKET (NAS)

€ 7.00

15

0947112056
ref: 15

BULB 12V 21W

€ 5.00

16

3562347610
ref: 16

SCREW

€ 1.50

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

3569032200
ref: 18

CUSHION

€ 38.50

19

3569532200
ref: 19

SPACER,RR TURNSIGNAL LAMP

€ 42.00

20

3562944000
ref: 20

WASHER

€ 4.50

21

0832121108
ref: 21

LOCK WASHER

€ 2.00

22

0831012108
ref: 22

NUT

€ 2.50

23-1

4158045000019
ref: 23-1

BRACKET,RR TURNSIGNAL LAMP,R

€ 12.00

23-2

4159045000019
ref: 23-2

BRACKET,RR TURNSIGNAL LAMP,L

€ 16.50

24

3686245000
ref: 24

WIRE

€ 5.00

25

3861045031
ref: 25

RELAY,TURN SIGNAL

€ 54.50
