GENERATOR

GS550D 1980 (T) (E02 E15 E22 E24 E25)

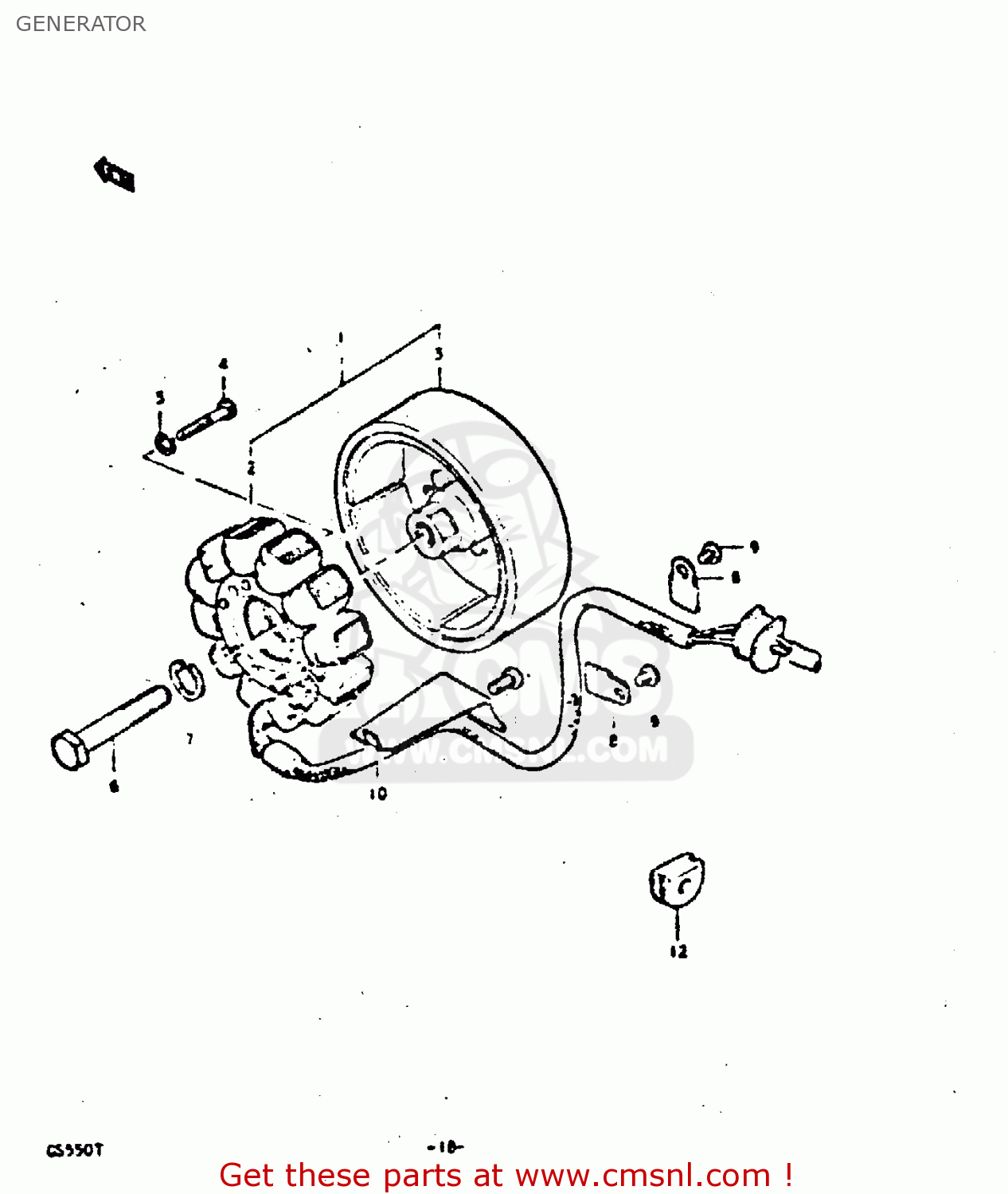

Generator diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3140045020
ref: 1

GENERATOR ASSEMBLY

€ 719.50

3140145020
ref: 2

STATOR ASSEMBLY

€ 334.50

3140245020
ref: 3

ROTOR ASSEMBLY

€ 385.00

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0110712458
ref: 6

BOLT 12X45

€ 5.50

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

3149745000
ref: 8

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205088
ref: 9

SCREW

€ 2.00

3149845000
ref: 10

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 11

SCREW

€ 1.50

3148247000
ref: 12

GROMMET,STARTER CABLE

€ 2.00
