STEERING STEM
GS550D 1980 (T) (E02 E15 E22 E24 E25)

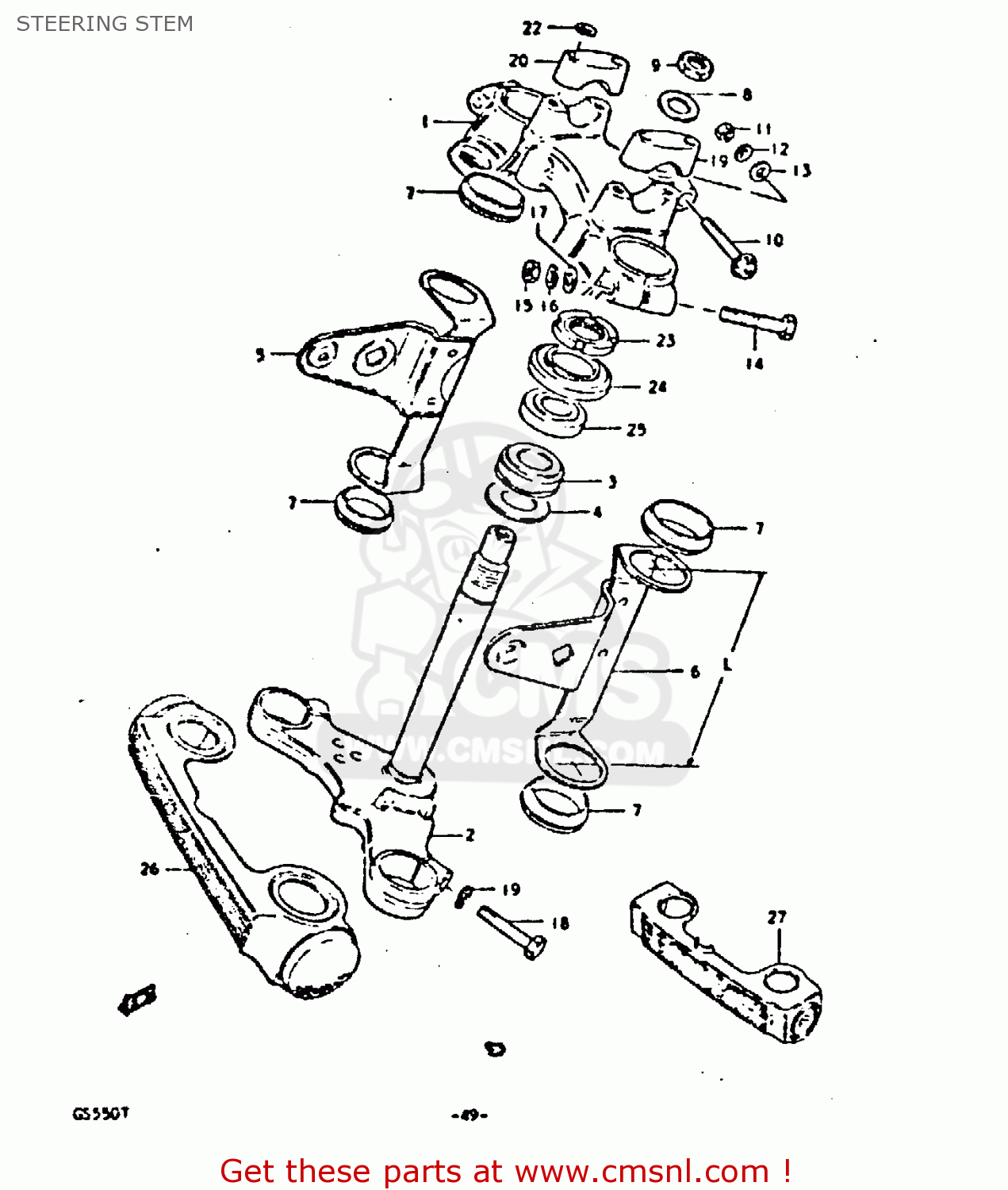

Steering stem diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)
STEERING STEM GS550D 1980 (T) (E02 E15 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
5131147000291
ref: 1
HEAD,STEERING STEM
€ 111.50
2
5140045811
ref: 2
STEM,STEERING
€ 178.50
3
0926530005
ref: 3
BEARING
€ 49.50
4
0821130402
ref: 4
WASHER,THRUST
€ 4.00
5
5153047001291
ref: 5
BRACKET,HEADLAMP,RIGHT
€ 58.00
6
5154047001291
ref: 6
BRACKET,HEADLAMP,LEFT
€ 34.00
7
5155347000
ref: 7
CUSHION,HEADLAMP BRACKET
€ 3.50
8
5135631700
ref: 8
WASHER
€ 9.50
9
5135345000
ref: 9
NUT,FR FORK UPR BRACKET
€ 10.50
10
0151708508
ref: 10
BOLT
€ 3.50
11
0831012088
ref: 11
NUT
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
€ 2.00
13
0832211088
ref: 13
WASHER
€ 2.00
14
0110710558
ref: 14
BOLT 10X55
€ 3.50
15
0831011108
ref: 15
NUT
€ 2.50
16
0832131108
ref: 16
LOCK WASHER
€ 2.00
17
0832211108
ref: 17
WASHER
€ 2.50
18
0110710408
ref: 18
BOLT 10X40
€ 3.00
19
0832121108
ref: 19
LOCK WASHER
€ 2.00
20
5621127200291
ref: 20
HOLDER,HANDLE UPR
€ 13.50
21
0120408357
ref: 21
BOLT
€ 3.50
22
0832121088
ref: 22
LOCK WASHER
€ 2.00
23
5163128000
ref: 23
NUT,STEERING STEM(25X44X10)
€ 12.50
24
5164349001
ref: 24
DUST SEAL,STEERING,UPPER
€ 7.50
25
0926525008
ref: 25
TAPER,ROLLER BEARING
€ 48.50
26
5187047000
ref: 26
COVER,FR FORK
€ 42.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
