GS550D 1980 (T) (E02 E15 E22 E24 E25)

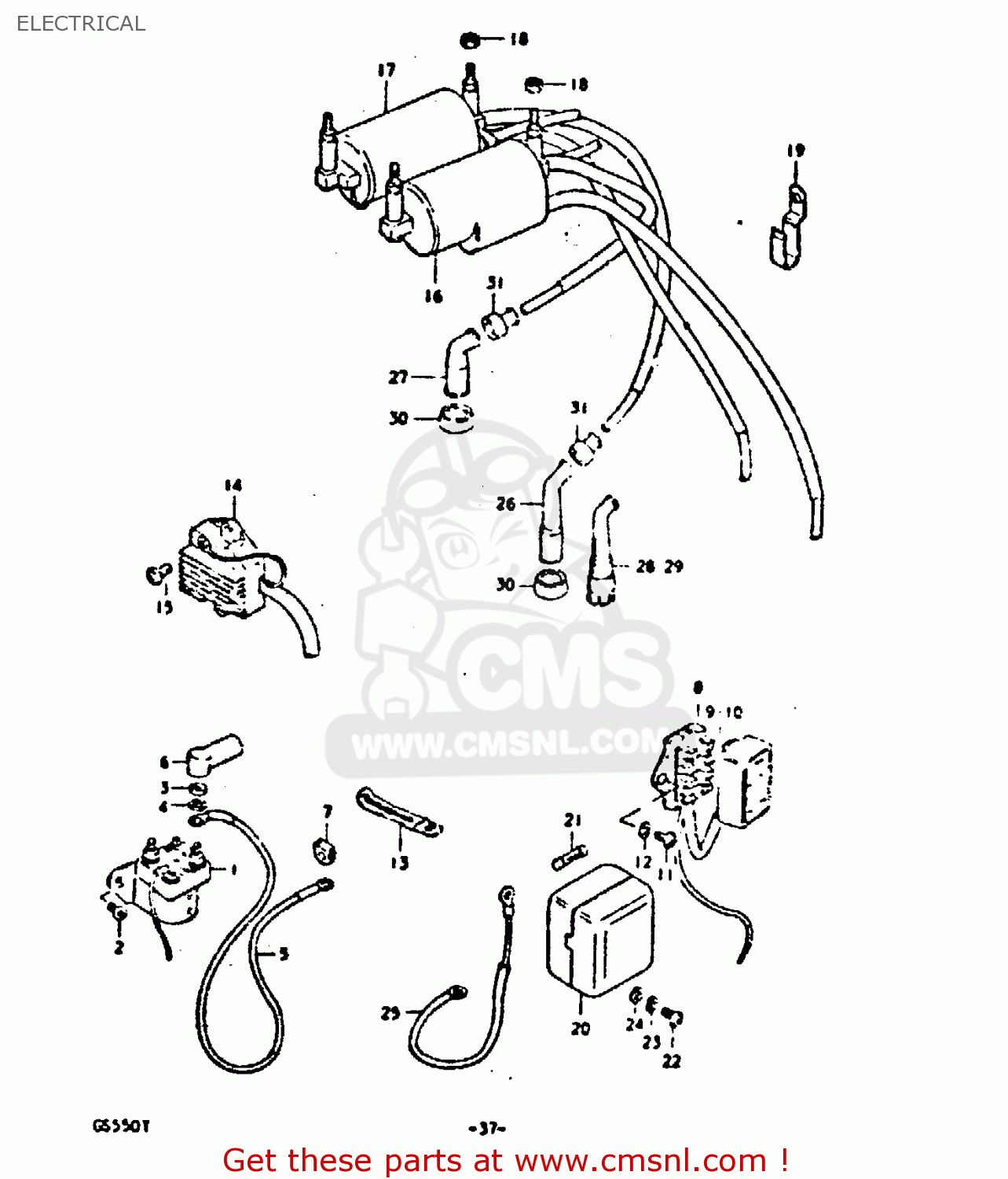

Electrical diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)
ELECTRICAL GS550D 1980 (T) (E02 E15 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3180037020
ref: 1
RELAY ASSY,STARTING MOTOR
€ 105.00
2
0211206088
ref: 2
SCREW
€ 2.00
3
0831022068
ref: 3
NUT 6MM
€ 2.50
4
0832121068
ref: 4
LOCK WASHER
€ 2.50
5
3385047020
ref: 5
WIRE,STARTER MOTOR LEAD
€ 50.00
6
3186135100
ref: 6
CAP,STARTER RELAY
€ 4.50
7
3148247000
ref: 7
GROMMET,STARTER CABLE
€ 2.00
8
3674049001
ref: 8
BOX ASSEMBLY,FUSE
€ 81.50
9
0948115001
ref: 9
FUSE(15A)
€ 3.00
10
0948110001
ref: 10
FUSE(10A)
€ 2.00
11
0211206128
ref: 11
SCREW 6X12
€ 2.00
12
0832221068
ref: 12
WASHER
€ 2.00
13
0940406404
ref: 13
CLAMP
€ 3.00
14
3280044040
ref: 14
RECTIFIER ASSEMBLY
€ 248.00
15
0211206168
ref: 15
SCREW
€ 2.50
16
3341045020
ref: 16
COIL ASSEMBLY,IGNITION
€ 235.00
17
3342045020
ref: 17
COIL ASSEMBLY,IGNITION
€ 235.00
18
0831011068
ref: 18
NUT
€ 2.50
19
0940306307
ref: 19
CLAMP
€ 4.50
20
3885047000
ref: 20
TERMINAL ASSEMBLY,POWER SO
€ 94.00
21
0948110001
ref: 21
FUSE(10A)
€ 2.00
22
0211206168
ref: 22
SCREW
€ 2.50
23
0832121068
ref: 23
LOCK WASHER
€ 2.50
24
0832221068
ref: 24
WASHER
€ 2.00
25
3685147000
ref: 25
WIRE,POWER SOURCE LEAD
€ 8.50
26
NOTUSED
ref: 26
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
27
NOTUSED
ref: 27
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
28
3351045600
ref: 28
E2, E4, E15, E18, E2
CAP,SPARK PLUG
€ 47.00
29
3351044600
ref: 29
E2, E4, E15, E18, E2
CAP, SPARK PLUG (S)
€ 40.00
30
3354169010
ref: 30
SEAL,SPARK PLUG
€ 5.00
31
3354298000
ref: 31
SEAL,SPARK PLU
€ 4.50
