CYLINDER HEAD

GS550D 1980 (T) (E02 E15 E22 E24 E25)

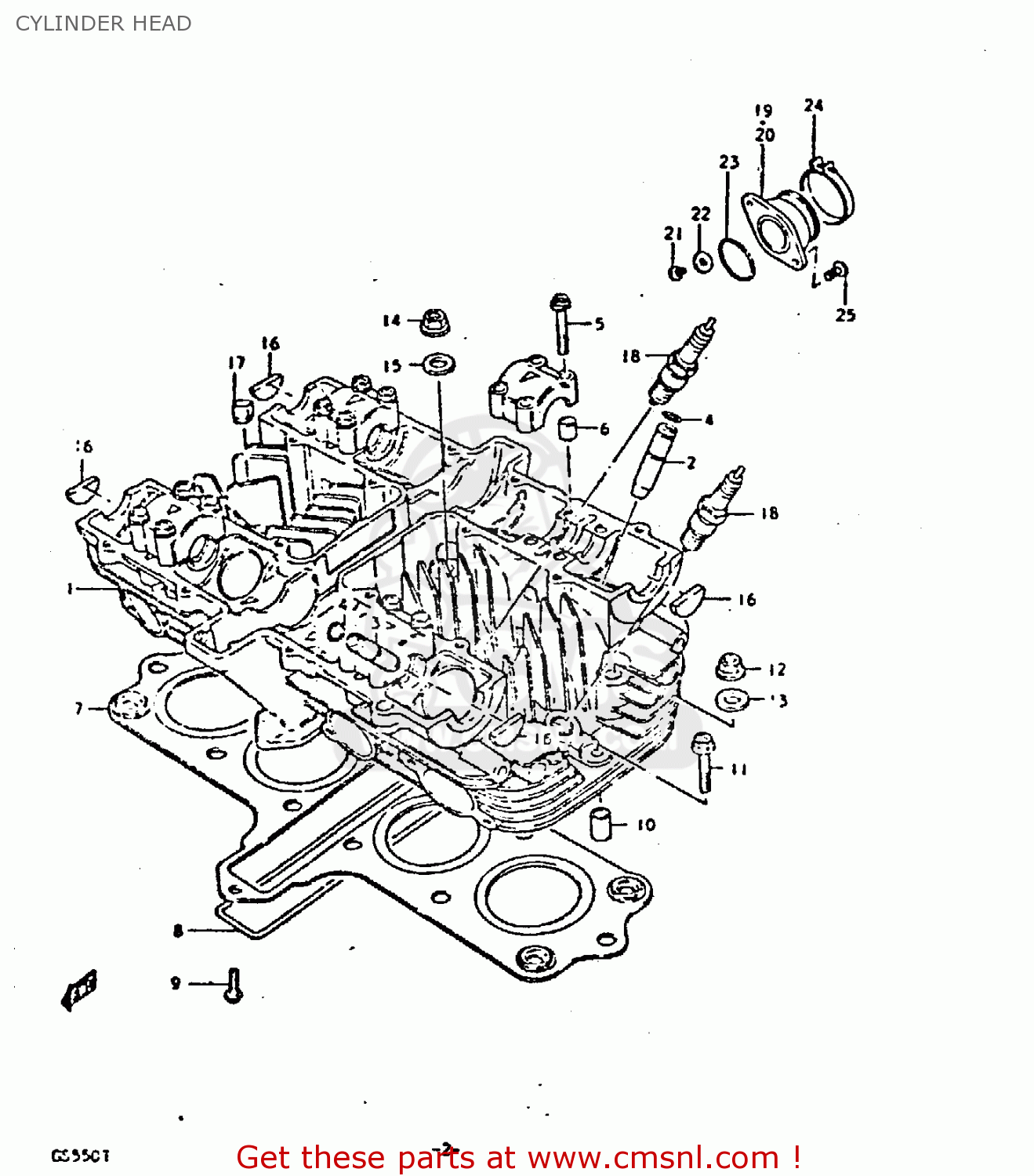

Cylinder head diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

CYLINDER HEAD GS550D 1980 (T) (E02 E15 E22 E24 E25)

CYLINDER HEAD GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1110047870
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 458.00

2

1111547730
ref: 2

GUIDE,VALVE

€ 18.50

3

1111647730
ref: 3

GUIDE,VALVE

€ 17.50

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114147084
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 118.00

8

0928099003
ref: 8

O RING(D:3,ID:26X157)

€ 34.00

9

0151706308
ref: 9

BOLT

€ 2.00

10

0421111189
ref: 10

PIN

€ 2.00

11

0151706458
ref: 11

BOLT,UNDER

€ 2.50

12

0915908029
ref: 12

NUT

€ 6.00

13

0916808009
ref: 13

GASKET (NAS)

€ 4.50

14

0915908031
ref: 14

NUT

€ 2.00

15

0916008039
ref: 15

WASHER(8.5X19X2.3)

€ 2.00

16

0924123002
ref: 16

PLUG

€ 8.50

17

1115245000
ref: 17

PAD

€ 3.50

18-1

0948200225
ref: 18-1

SPARK PLUG

€ 3.00

18-2

0948200195
ref: 18-2

SPARK PLUG (ND, W24ES-U)

€ 5.00

19

1311047010
ref: 19

PIPE,INTAKE,R

€ 40.00

20

1312047010
ref: 20

PIPE,INTAKE,L

€ 38.00

21

0910605006
ref: 21

BOLT

€ 2.00

22

0832221058
ref: 22

WASHER

€ 2.50

23

0928038003
ref: 23

O-RING

€ 4.50

24

0940250306
ref: 24

CLAMP

€ 6.00

25

0211206168
ref: 25

SCREW

€ 2.50
