REAR MASTER CYLINDER

GS550D 1980 (T) (E02 E15 E22 E24 E25)

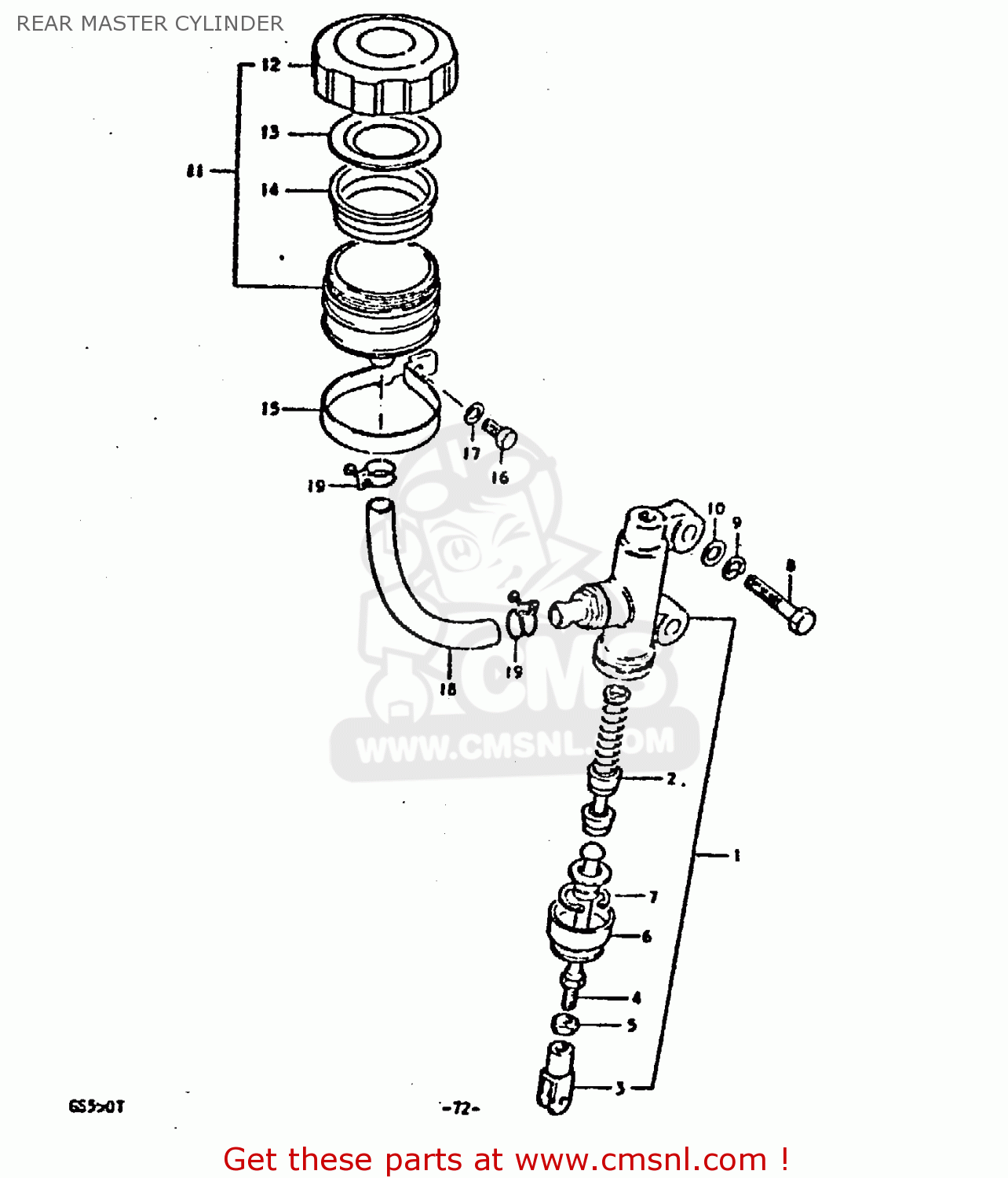

Rear master cylinder diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

REAR MASTER CYLINDER GS550D 1980 (T) (E02 E15 E22 E24 E25)

REAR MASTER CYLINDER GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

6960047001
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3

YOKE

€ 11.00

4

6967045000
ref: 4

ROD,PUSH

€ 18.50

5

0831012088
ref: 5

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0110708308
ref: 8

BOLT (8X30)

€ 2.50

9

0832121088
ref: 9

LOCK WASHER

€ 2.00

10

0832211088
ref: 10

WASHER

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966918605
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251001
ref: 15

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973147000
ref: 18

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19

CLAMP

€ 4.50
