CONTACT BREAKER
GS550D 1980 (T) (E02 E15 E22 E24 E25)

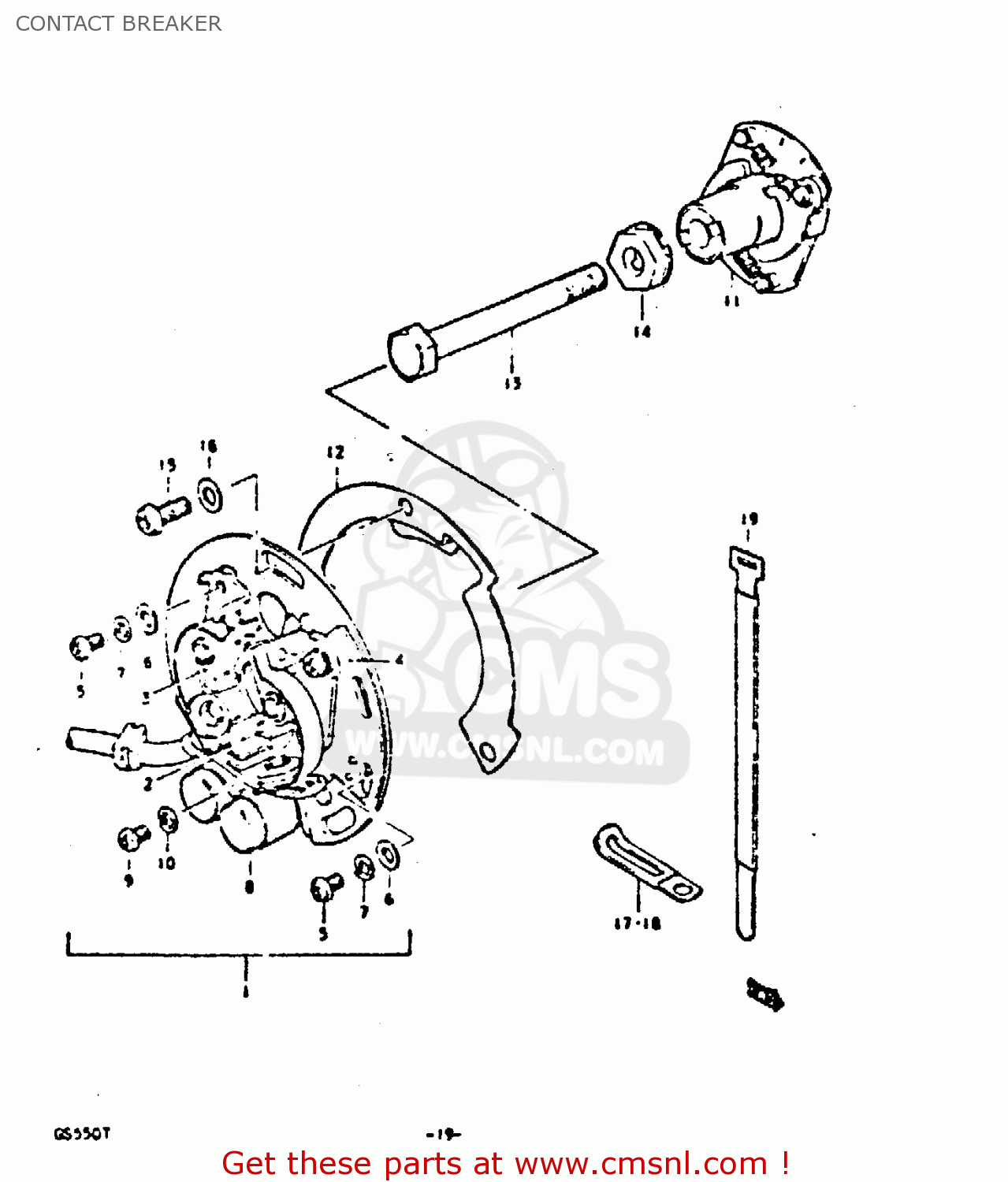

Contact breaker diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)
CONTACT BREAKER GS550D 1980 (T) (E02 E15 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
3311045020
ref: 1
BREAKER ASSEMBLY,CONTACT
€ 568.50
2
3314045020
ref: 2
POINT ASSEMBLY,CONTACT
€ 35.50
3
3316045020
ref: 3
POINT ASSEMBLY,CONTACT
€ 83.00
4
3314345020
ref: 4
PLATE,CONTACT POINT
€ 12.50
5
0211204068
ref: 5
SCREW 4X6
€ 2.00
6
0832221048
ref: 6
WASHER
€ 2.00
7
0832121048
ref: 7
LOCK WASHER
€ 2.00
8
3326145020
ref: 8
CONDENSER
€ 106.00
9
0211204068
ref: 9
SCREW 4X6
€ 2.00
10
0832121048
ref: 10
LOCK WASHER
€ 2.00
11
3312045021
ref: 11
GOVERNOR ASSEMBLY
€ 168.00
12
3337145001
ref: 12
PLATE,IGNITION TIMING
€ 6.50
13
0110708658
ref: 13
BOLT
€ 3.00
14
3346547000
ref: 14
WASHER
€ 19.00
15
0912505024
ref: 15
SCREW(5X12)
€ 2.00
16
0916005027
ref: 16
WASHER
€ 2.50
17
0940406401
ref: 17
CLAMP L:35
€ 2.50
18
0940408401
ref: 18
CLAMP
€ 3.50
19
0940718501
ref: 19
CLAMP
€ 0.00
