FRONT BRAKE HOSE (DOUBLE DISK)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

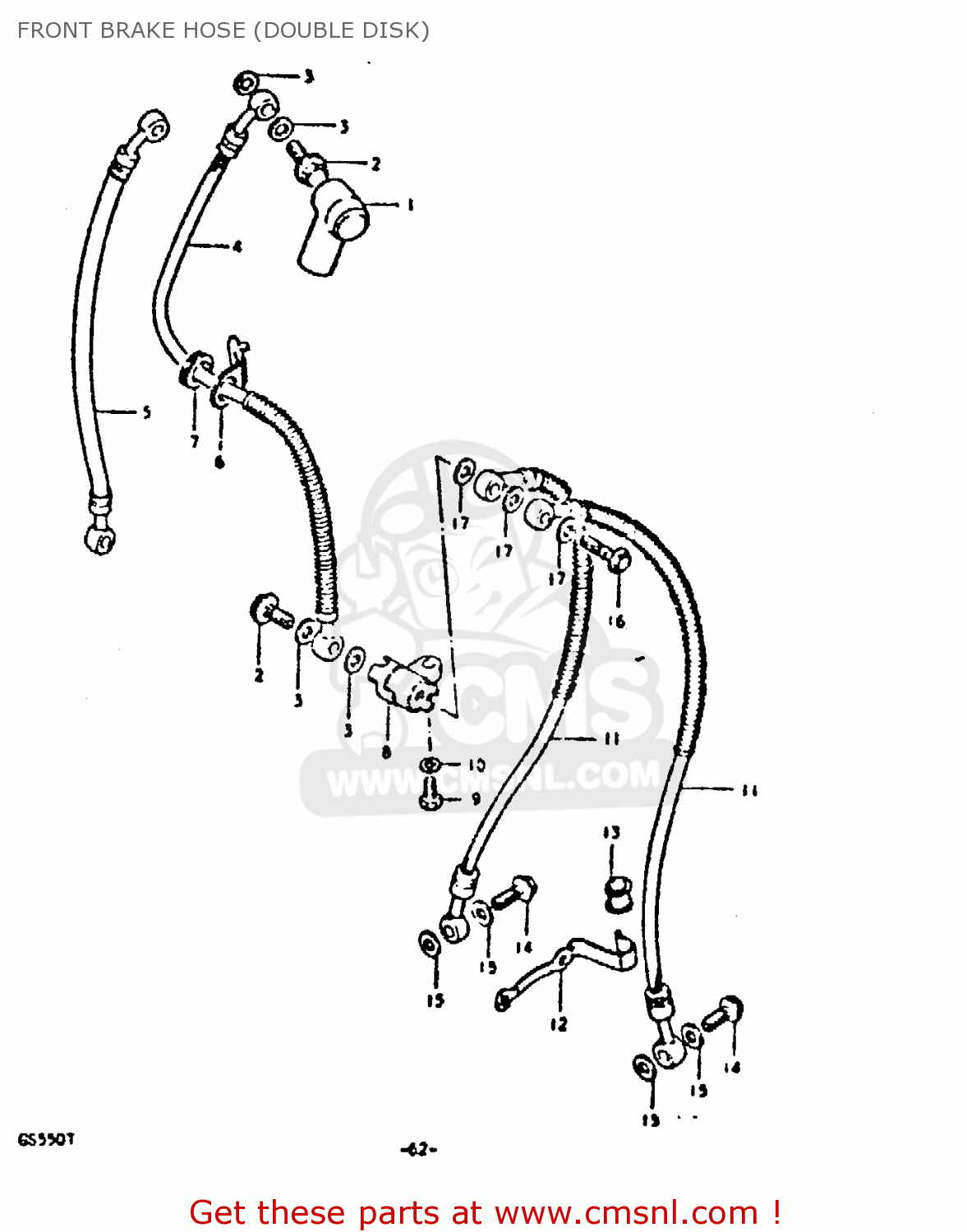

Front brake hose (double disk) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

FRONT BRAKE HOSE (DOUBLE DISK) GS550D 1980 (T) (E02 E15 E22 E24 E25)

FRONT BRAKE HOSE (DOUBLE DISK) GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

5971149001
ref: 1

BOOT,MASTER CYLINDER

€ 8.50

2

0936010007
ref: 2

BOLT,UNION

€ 6.50

3

0916110005
ref: 3

WASHER

€ 2.00

4

5948037013
ref: 4

HOSE,BRAKE NO.1

€ 52.00

5

5948045621
ref: 5

HOSE,FRONT BRAKE

€ 56.50

6-1

5924331000
ref: 6-1

GUIDE,BRAKE HOSE

€ 11.50

6-2

5924331010
ref: 6-2

GUIDE,BRAKE HOSE NO.1

€ 3.00

7

0930814007
ref: 7

GROMMET

€ 4.00

8

5949145000
ref: 8

JOINT,BRAKE HOSE

€ 29.00

9

0110706208
ref: 9

BOLT

€ 2.00

10

0832121068
ref: 10

LOCK WASHER

€ 2.50

11

5924044001
ref: 11

HOSE,BRAKE NO.2

€ 64.50

12

5926849001
ref: 12

GUIDE,BRAKE HOSE NO.2

€ 7.00

13

5924449000
ref: 13

BUSH,BRAKE HOSE GUIDE,NO.2

€ 4.50

14

0936010007
ref: 14

BOLT,UNION

€ 6.50

15

0916110005
ref: 15

WASHER

€ 2.00

16

0936010008
ref: 16

BOLT,UNION

€ 7.00

17

0916110005
ref: 17

WASHER

€ 2.00
