CRANKSHAFT

GS550D 1980 (T) (E02 E15 E22 E24 E25)

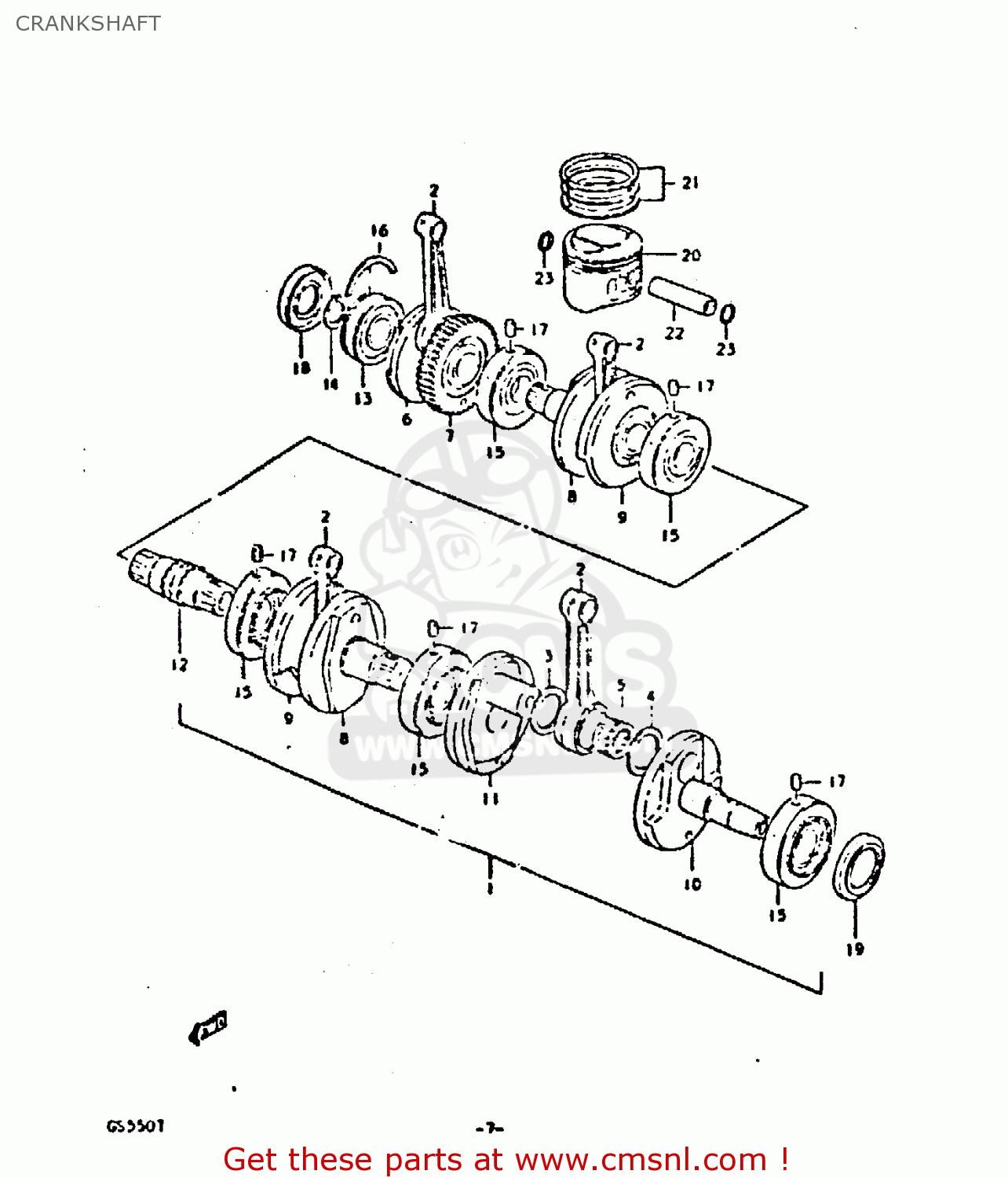

Crankshaft diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

CRANKSHAFT GS550D 1980 (T) (E02 E15 E22 E24 E25)

CRANKSHAFT GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1220047011
ref: 1

CRANKSHAFT ASSEMBLY

€ 1,265.50

2

1216147001
ref: 2

ROD,CONNECTING

€ 65.50

3

0916028009
ref: 3

WASHER (28X48X2)

€ 5.50

4

0916028010
ref: 4

WASHER(28X48X1)

€ 6.00

5

0926328006
ref: 5

ROLLER BEARING (28X38X16.8)

€ 22.00

6

1222047001
ref: 6

CRANKSHAFT

€ 99.50

7

1223047011
ref: 7

WEB,CRANK

€ 80.00

8

1224147002
ref: 8

CRANKSHAFT

€ 72.50

9

1225047001
ref: 9

WEB,CRANK,MIDDLE

€ 113.50

10

1226147001
ref: 10

CRANKSHAFT,LEFT

€ 113.50

11

1229047001
ref: 11

WEB,CRANK,LEFT

€ 148.50

12

1228147001
ref: 12

SHAFT,TIMING CHAIN DRIVE

€ 75.50

13

0926230033
ref: 13

BEARING(30X72X19)

€ 47.00

14

0833111308
ref: 14

CIRCLIP,30MM

€ 3.00

15

0926432002
ref: 15

BEARING

€ 138.00

16

0939072004
ref: 16

C RING

€ 3.00

17

0422107129
ref: 17

PIN

€ 1.50

18

0928330021
ref: 18

SEAL,OIL(30X72X11)

€ 22.00

19

0928948001
ref: 19

OIL SEAL

€ 12.00

20-1

1211147001
ref: 20-1

PISTON

€ 47.50

20-2

1211147001050
ref: 20-2

PISTON

€ 84.00

20-3

1211147001100
ref: 20-3

PISTON

€ 99.50

21-1

1214047031
ref: 21-1

RING SET,PISTON

€ 61.50

21-2

1214047031050
ref: 21-2

RING SET,PISTON (OS:0.5)

€ 41.50

21-3

1214047031100
ref: 21-3

RING SET,PISTON (OS:1.0)

€ 44.50

22

1215108001
ref: 22

PIN,PISTON 16MM

€ 10.00

23

0938116002
ref: 23

CIRCLIP

€ 1.50
