BATTERY

GS550D 1980 (T) (E02 E15 E22 E24 E25)

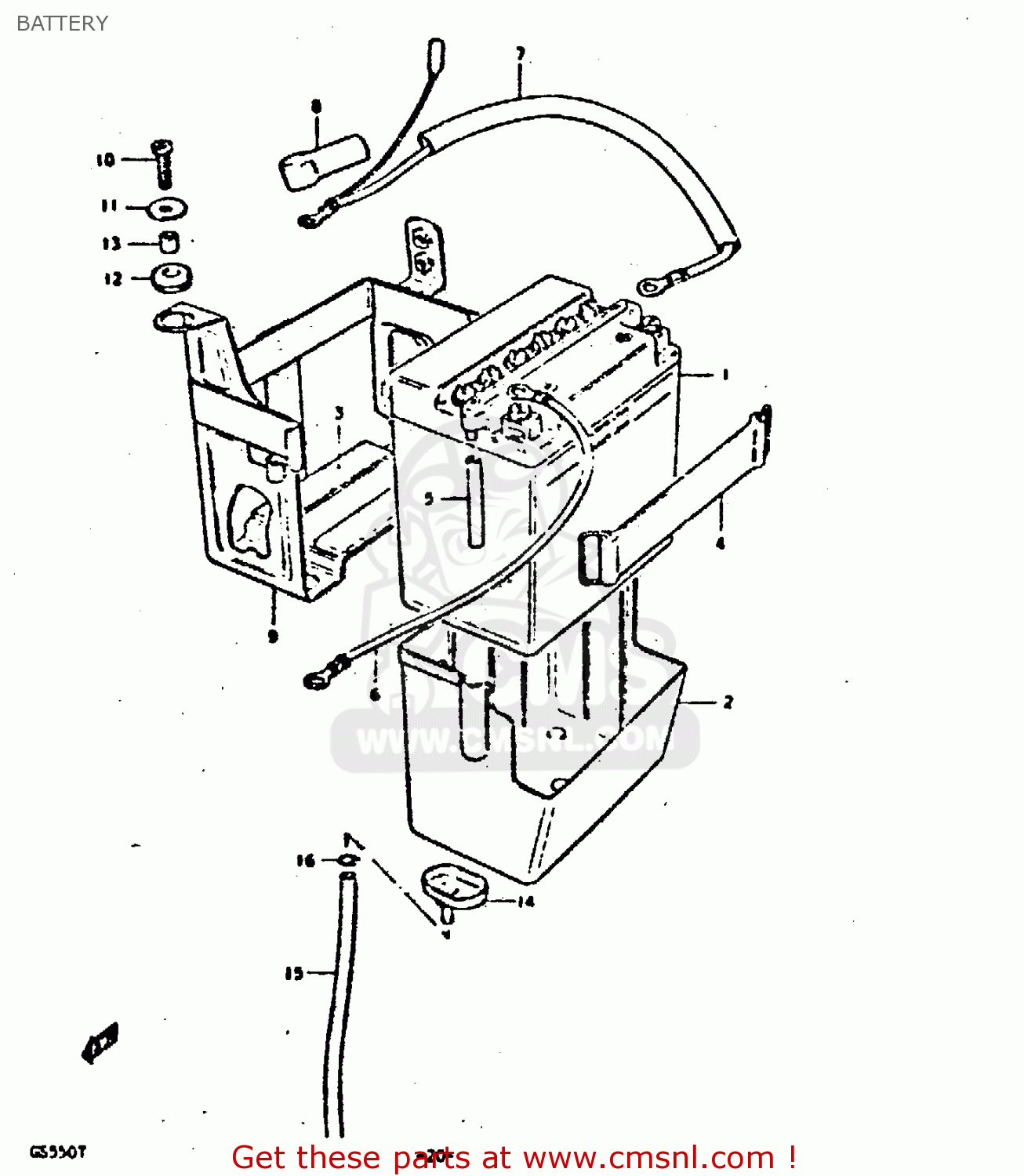

Battery diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

3361044010
ref: 1

BATTERY ASSY (12V)

€ 74.50

3366147000
ref: 2

CASE,BATTERY

€ 12.50

3365229100
ref: 3

PROTECTOR,20X9

€ 5.00

0946200043
ref: 4

BAND

€ 4.50

3368147000
ref: 5

HOSE, EXHAUST (L:45)

€ 4.50

3385047000
ref: 6

WIRE,STARTER MOTOR LEAD

€ 8.50

3382047002
ref: 7

WIRE,BATTERY PLUS

€ 14.50

3362445000
ref: 8

CAP,TERMINAL

€ 5.50

4154047010
ref: 9

HOLDER,BATTERY

€ 41.00

0912806006
ref: 10

BOLT(6X20)

€ 2.00

0916006020
ref: 11

WASHER

€ 2.00

0932008007
ref: 12

CUSHION

€ 4.00

0918006038
ref: 13

SPACER(6.1X9X7.5)

€ 2.00

3366247000
ref: 14

FUNNEL,BATTERY EXHAUST

€ 3.50

3368047001
ref: 15

HOSE,BATTERY EXHAUST

€ 4.50

0940108301
ref: 16

CLIP

€ 1.50
