CAM CHAIN

GS550D 1980 (T) (E02 E15 E22 E24 E25)

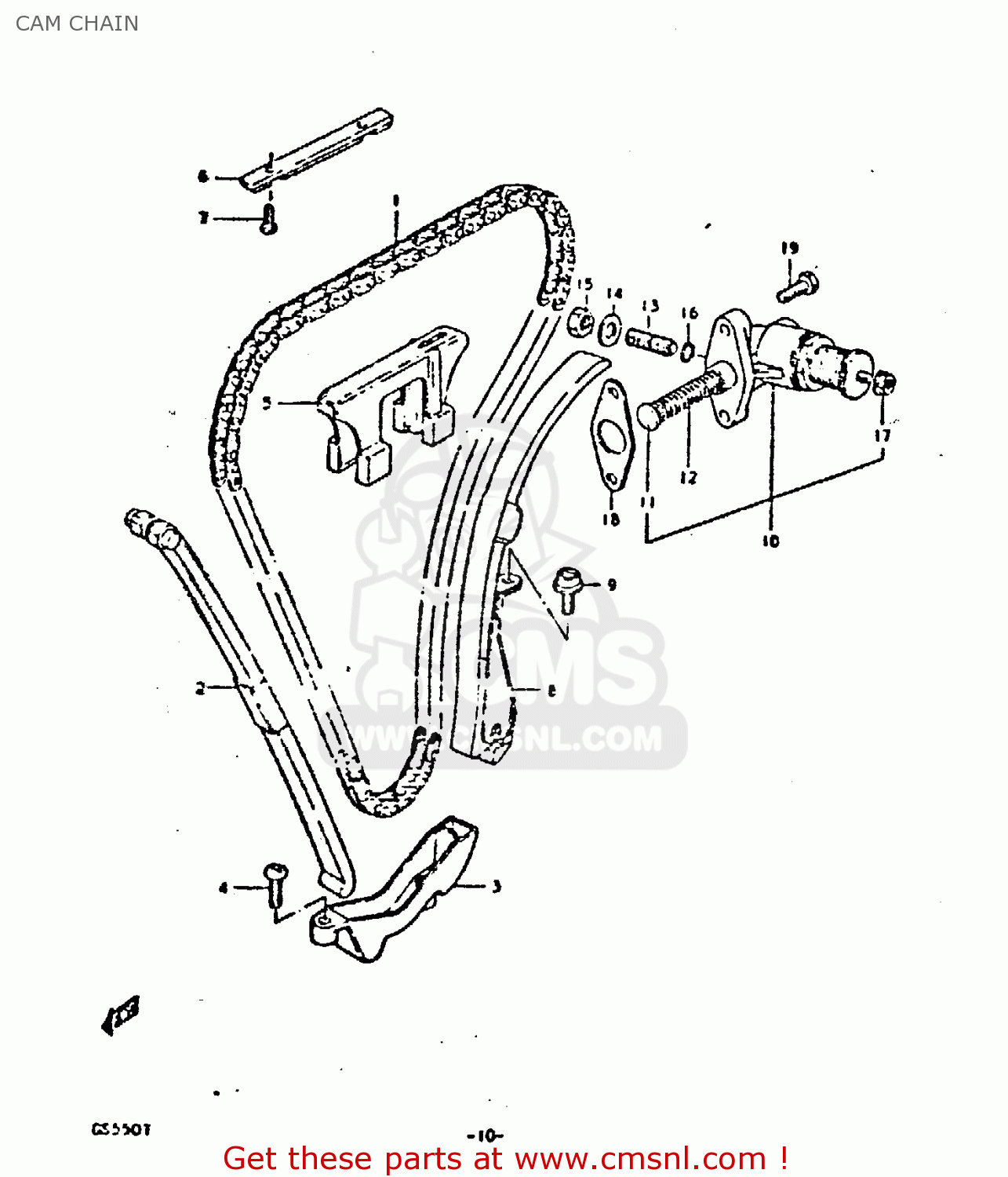

Cam chain diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

CAM CHAIN GS550D 1980 (T) (E02 E15 E22 E24 E25)

CAM CHAIN GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

1

1276047040
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 125.50

2

1277147040
ref: 2

GUIDE,CAM CHAIN NO.1

€ 215.50

3

1277647000
ref: 3

HOLDER,CAM CHAIN GUIDE

€ 12.00

4

0211206208
ref: 4

SCREW

€ 2.00

5

1278147042
ref: 5

GUIDE,CAM CHAIN NO.2

€ 136.50

6

1278247040
ref: 6

GUIDE,CAM CHAIN NO.3

€ 89.50

7

0211205128
ref: 7

SCREW

€ 2.50

8

1281047040
ref: 8

TENSIONER,CAM CHAIN

€ 161.50

9

0151708168
ref: 9

BOLT

€ 3.00

10

1283047001
ref: 10

ADJUSTER ASSEMBLY,TENSIONER

€ 167.00

11

1283347001
ref: 11

ROD,PUSH

€ 25.00

12

0944012017
ref: 12

SPRING

€ 2.50

13

1283845001
ref: 13

SCREW

€ 6.00

14

0832211088
ref: 14

WASHER

€ 2.00

15

0831012088
ref: 15

NUT

€ 2.00

16

0928006003
ref: 16

O-RING

€ 2.50

17

0915906017
ref: 17

NUT

€ 2.50

18

1283747000
ref: 18

GASKET,TENSIONER ADJUSTER (MCA)

€ 7.50

19

0912806024
ref: 19

SCREW (6X25)

€ 2.50
