Buy Suzuki GS Parts Online


FRAME

GS550D 1980 (T) (E02 E15 E22 E24 E25)

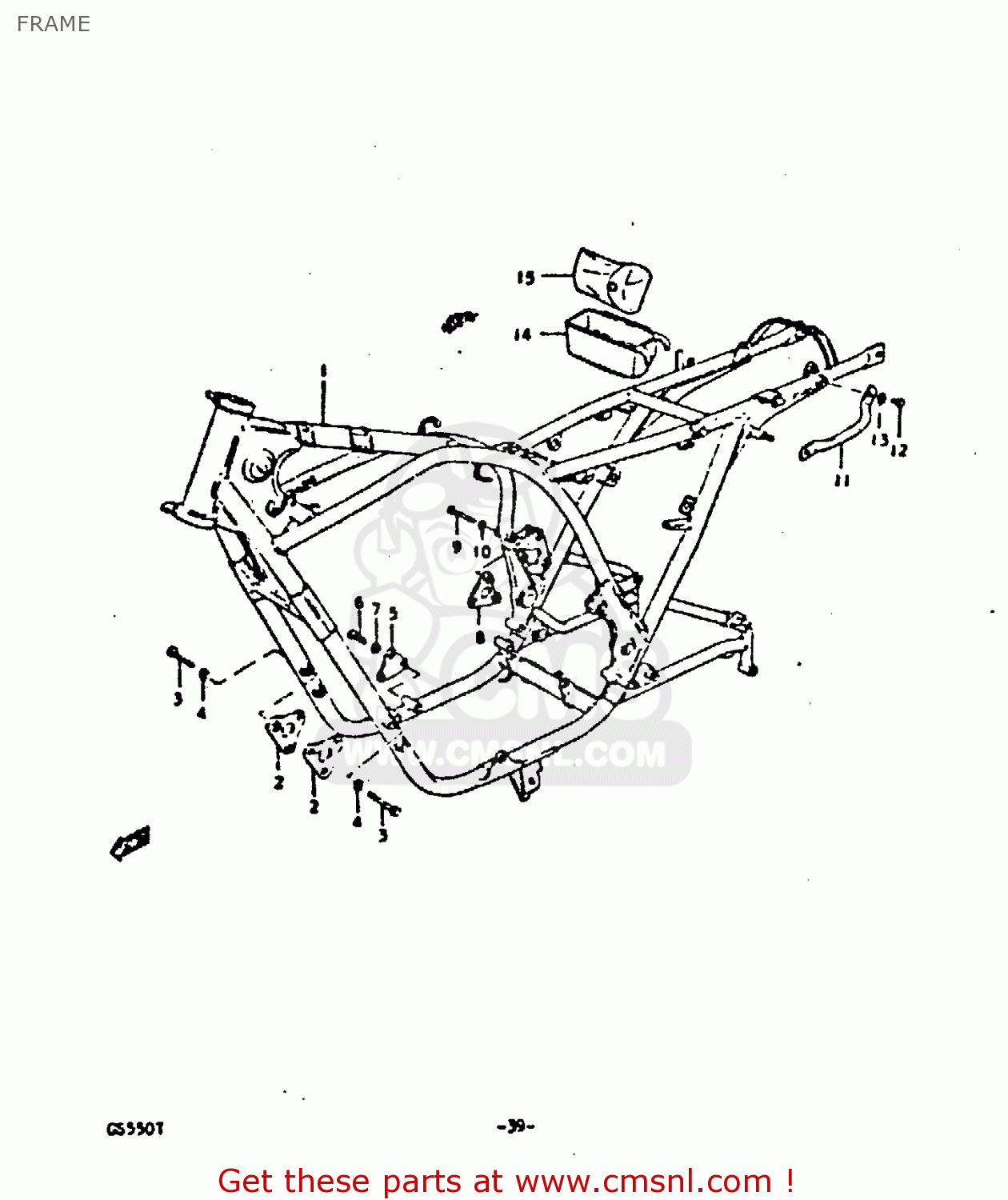

Frame diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

FRAME GS550D 1980 (T) (E02 E15 E22 E24 E25)
FRAME GS550D 1980 (T) (E02 E15 E22 E24 E25)
FRAME GS550D 1980 (T) (E02 E15 E22 E24 E25)
prices are in EUR
ref
part #
description
quantity
1-1
4110047031019
ref: 1-1
FRAME
€ 0.00
1-2
NOTUSED
ref: 1-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-3
NOTUSED
ref: 1-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-4
NOTUSED
ref: 1-4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
1-5
NOTUSED
ref: 1-5
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
2
4191047000019
ref: 2
PLATE,ENGINE MOUNTING
4191047000019
€ 8.50
3
0110708608
ref: 3
BOLT
€ 2.50
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
4199347000019
ref: 5
PLATE,ENGINE MOUNTING
4199347000019
€ 7.50
6
0110708168
ref: 6
BOLT
€ 2.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
4199047000019
ref: 8
PLATE,ENGINE MOUNTING
€ 8.00
9
0110708558
ref: 9
BOLT 8X55
€ 3.00
10
0832121088
ref: 10
LOCK WASHER
0832121088
€ 2.00
11
4141139000
ref: 11
GRIP,FRAME HANDLE
€ 56.50
12
0110708168
ref: 12
BOLT
€ 2.00
13
0832211088
ref: 13
WASHER
0832211088
€ 2.00
14
4155147000
ref: 14
HOLDER,TOOL
€ 0.00
15
0980000193
ref: 15
TOOL SET
€ 52.00
