FOOTREST
GS550D 1980 (T) (E02 E15 E22 E24 E25)

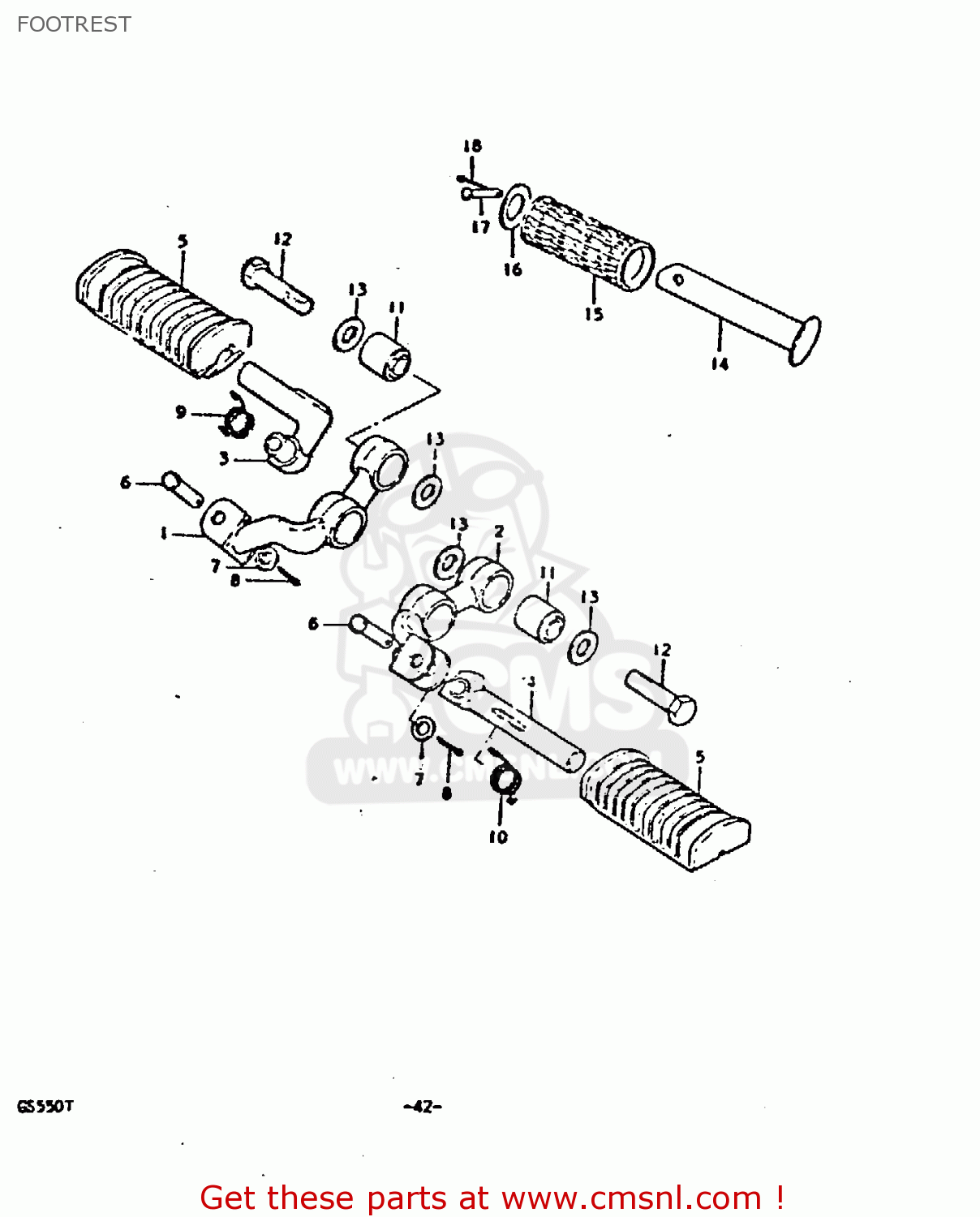

Footrest diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)
FOOTREST GS550D 1980 (T) (E02 E15 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
4351047010019
ref: 1
BAR,FRONT FOOTREST,RIGHT
€ 28.00
2
4352047010019
ref: 2
BAR,FRONT FOOTREST,LEFT
€ 24.50
3
4351645010
ref: 3
BAR,FRONT FOOTREST,RIGHT NO
€ 17.00
4
4352645010
ref: 4
BAR,FRONT FOOTREST,LEFT NO
€ 19.00
5
4355145010
ref: 5
RUBBER,FR FOOTREST
€ 41.50
6
0920008029
ref: 6
PIN
€ 3.50
7
0832211088
ref: 7
WASHER
€ 2.00
8
0411120158
ref: 8
PIN
€ 1.50
9
0944819010
ref: 9
SPRING
€ 3.00
10
0944819011
ref: 10
SPRING
€ 2.50
11
0931910008
ref: 11
BUSH
€ 8.00
12
0910410007
ref: 12
BOLT
€ 3.50
13
0916010013
ref: 13
WASHER (10.1X21X2.3)
€ 2.00
14
4361044000
ref: 14
BAR,PILLION FOOTREST
€ 14.50
15
4361247000
ref: 15
RUBBER,REAR FOOTREST
€ 4.50
16
0916019006
ref: 16
WASHER (19.5X32X2)
€ 2.00
17
0920006010
ref: 17
PIN
€ 2.50
18
0411120158
ref: 18
PIN
€ 1.50
