REAR CARIPERS

GS550D 1980 (T) (E02 E15 E22 E24 E25)

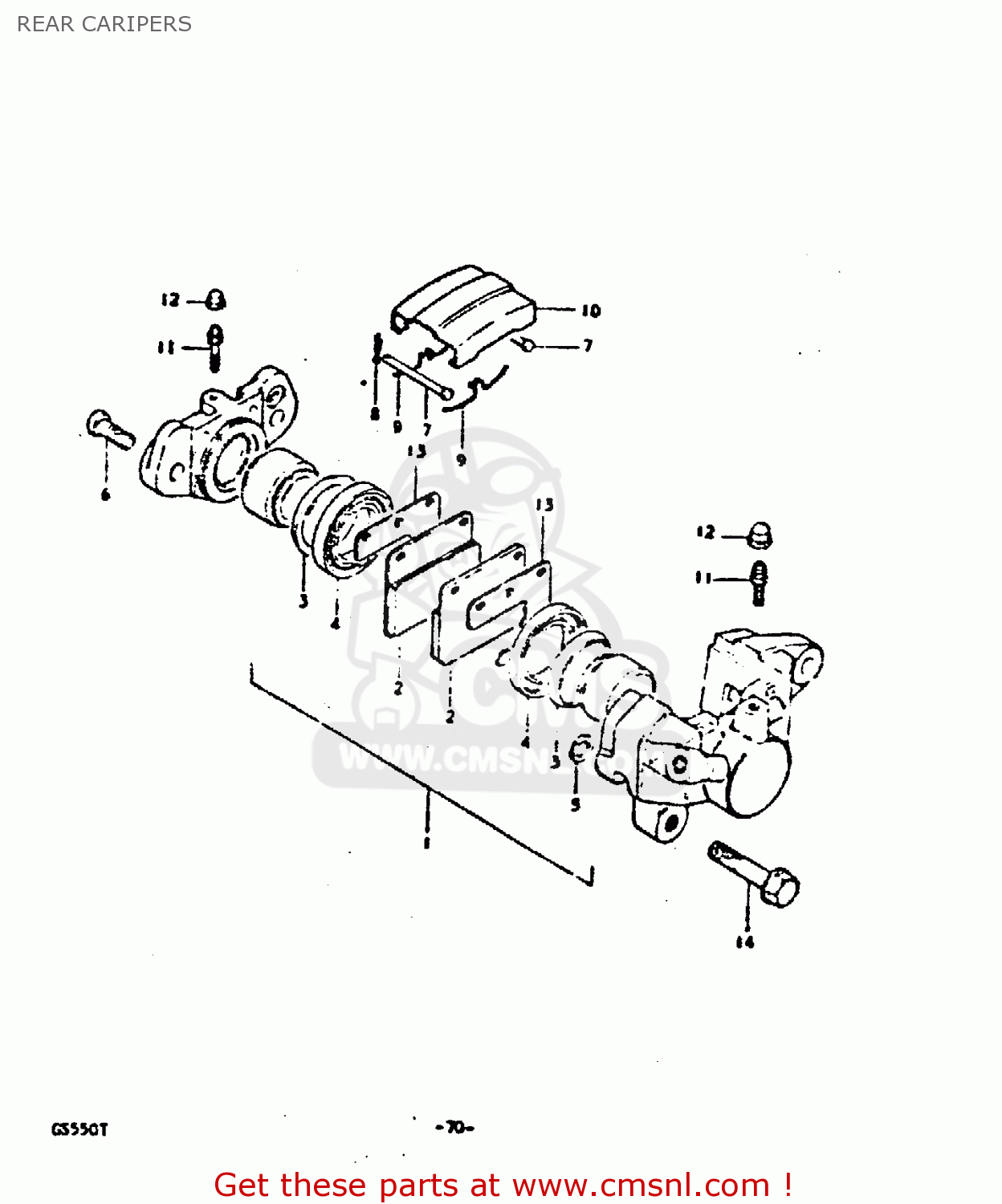

Rear caripers diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

6910045020
ref: 0

CALIPER ASSEMBLY,REAR

€ 843.50

6910045850
ref: 1

PISTON SET

€ 241.00

6913045020
ref: 2

PAD,BRAKE

€ 66.50

5910718410
ref: 3

SEAL,PISTON

€ 17.00

6910845000
ref: 4

BOOT,PISTON

€ 10.00

6910745000
ref: 5

SEAL,PISTON

€ 15.50

6914545000
ref: 6

BOLT,HOUSING

€ 7.00

6914145000
ref: 7

PIN,PAD

€ 6.50

6914245000
ref: 8

CLIP,PAD PIN

€ 4.50

6914345001
ref: 9

SPRING

€ 8.00

6915145000
ref: 10

COVER,DUST

€ 26.50

5912118410
ref: 11

BLEEDER

€ 8.00

5912218410
ref: 12

CAP,BREATHER

€ 6.00

6915245001
ref: 13

SHIM,RR CALIPER

€ 9.50

0152710308
ref: 14

BOLT

€ 3.50
