HEADLAMP (E15, E18, E21, E22, E25, E26, E34)

GS550D 1980 (T) (E02 E15 E22 E24 E25)

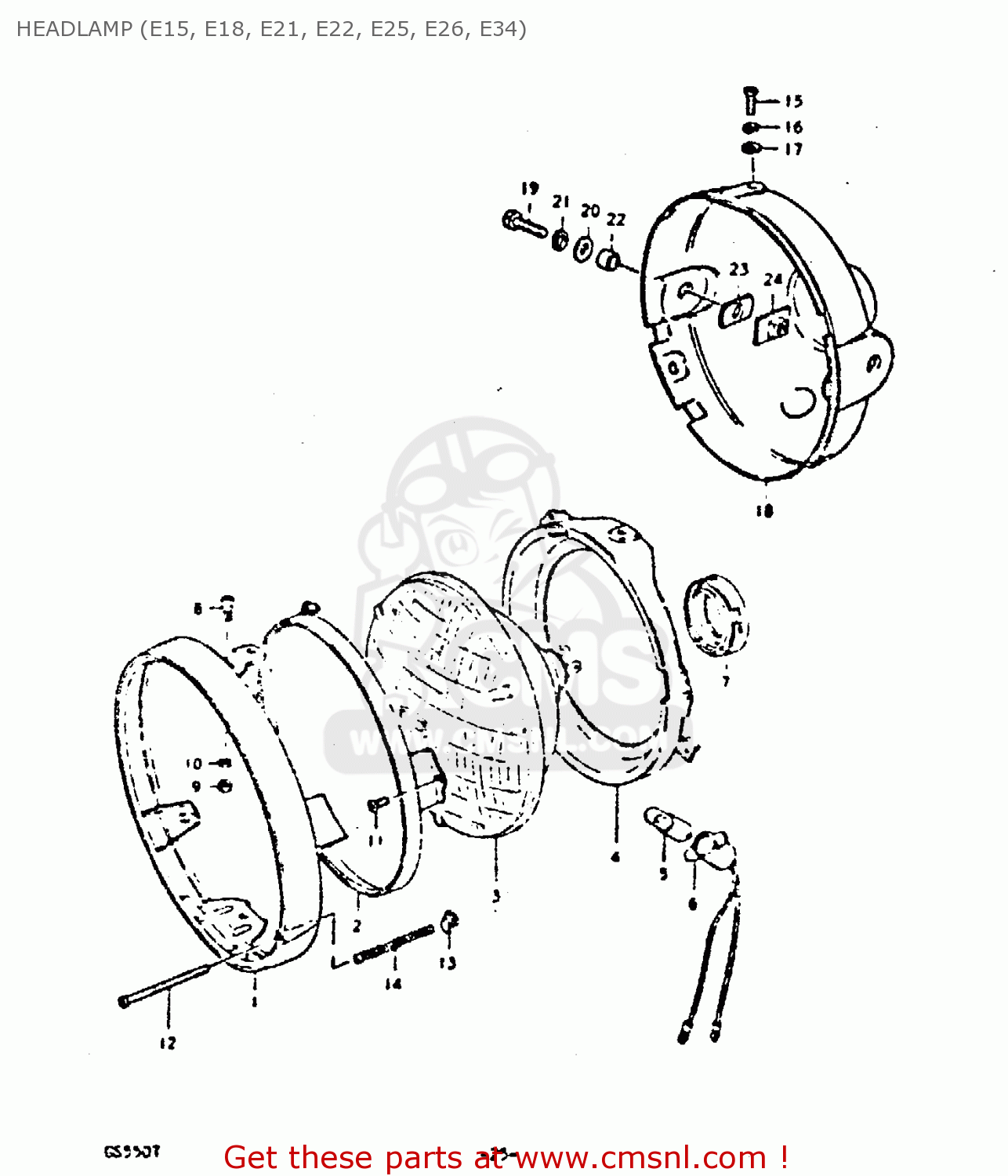

Headlamp (e15, e18, e21, e22, e25, e26, e34) diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)

HEADLAMP (E15, E18, E21, E22, E25, E26, E34) GS550D 1980 (T) (E02 E15 E22 E24 E25)

HEADLAMP (E15, E18, E21, E22, E25, E26, E34) GS550D 1980 (T) (E02 E15 E22 E24 E25)

prices are in EUR

ref

part #

description

quantity

0

3510045620
ref: 0

HEADLAMP ASSY

€ 189.00

1

3511145030
ref: 1

RIM

€ 53.50

2

3512745030
ref: 2

RETAINING RING

€ 19.50

3

3512034641
ref: 3

UNIT

€ 111.50

4

3513045030
ref: 4

RING

€ 29.50

5

094711206
ref: 5
PHILIPS NO.12929

BULB (EXECUTED LOCALLY 12V, 4W)

€ 0.00

6

3611828660
ref: 6

SOCKET

€ 11.50

7

3513634670
ref: 7

SETTER,BULB

€ 4.00

8

3518115611
ref: 8

H/LAMP LENS UNIT FITING SCRE

€ 3.00

9

0831011048
ref: 9

NUT

€ 2.00

10

0832121058
ref: 10

LOCK WASHER

€ 2.00

11

0211204088
ref: 11

SCREW

€ 1.50

12

3515145030
ref: 12

SCREW,HEADLAMP ADJUST

€ 4.00

13

3515215611
ref: 13

NUT

€ 3.50

14

3515431900
ref: 14

SPRING,ADJUSTING

€ 3.50

15

0912505022
ref: 15

SCREW

€ 3.50

16

0916205003
ref: 16

WASHER,LOCK

€ 2.00

17

0916906021
ref: 17

WASHER

€ 2.50

18

5181145002291
ref: 18

HOUSING,HEADLAMP(BLACK)

€ 69.50

19

0120408257
ref: 19

BOLT

€ 2.00

20

0832211088
ref: 20

WASHER

€ 2.00

21

0832121088
ref: 21

LOCK WASHER

€ 2.00

22

0918008030
ref: 22

SPACER (8.8X12X7)

€ 3.50

23

0932912002
ref: 23

CUSHION

€ 3.00

24

5186045000
ref: 24

PLATE,HEADLAMP HOUSING

€ 2.00
