TRANSMISSION
GS550D 1980 (T) (E02 E15 E22 E24 E25)

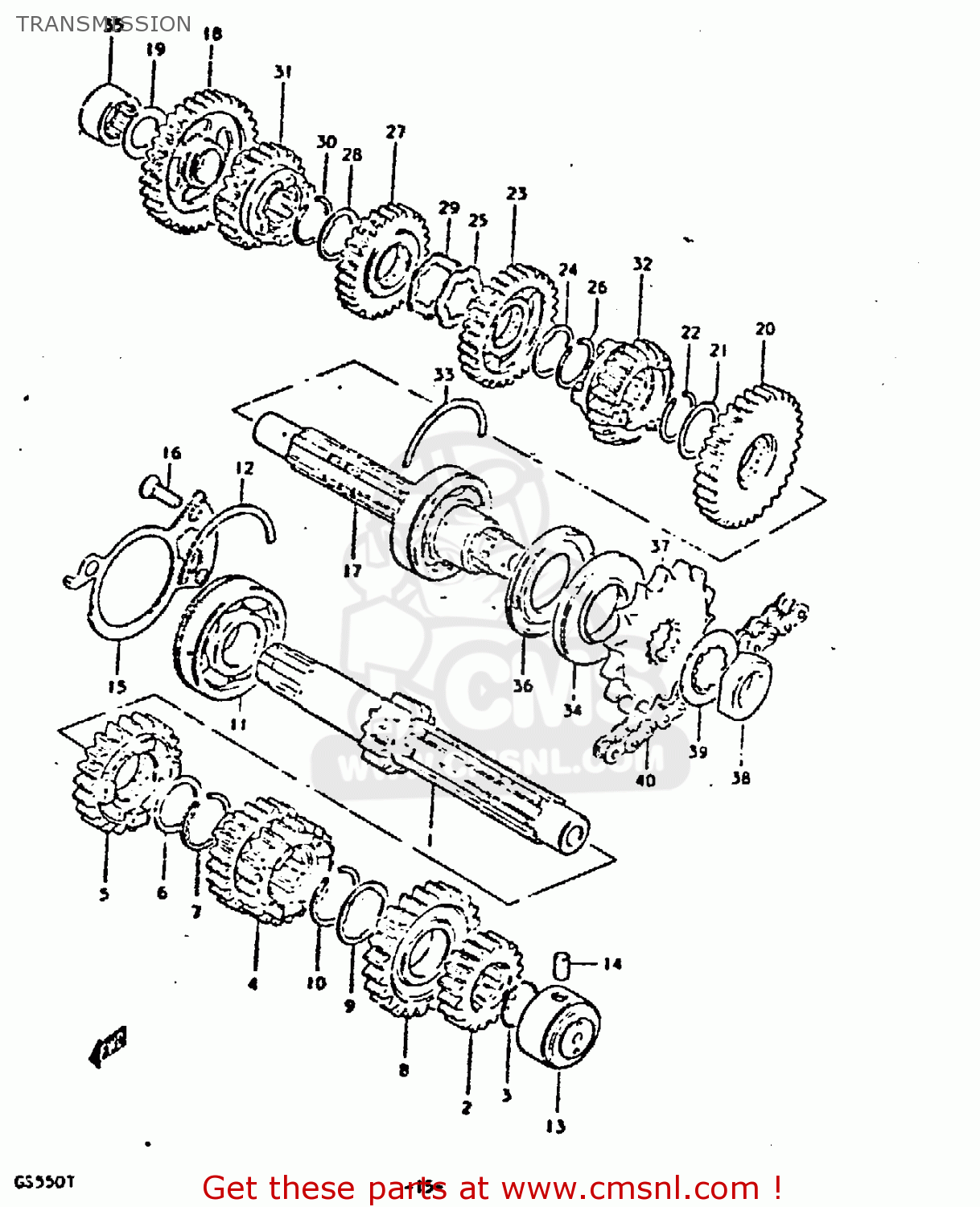

Transmission diagram GS550D 1980 (T) (E02 E15 E22 E24 E25)
TRANSMISSION GS550D 1980 (T) (E02 E15 E22 E24 E25)
×
prices are in EUR
ref
part #
description
quantity
1
2412147001
ref: 1
SHAFT,COUNTER
€ 114.50
2
2422147000
ref: 2
GEAR,SECOND DRIVE
€ 54.00
3
0938025006
ref: 3
RING,SNAP
€ 2.00
4
2423147000
ref: 4
GEAR,THIRD DRIVE
€ 108.00
5
2425047000
ref: 5
GEAR,FIFTH DRIVE
€ 87.00
6
0821125341
ref: 6
WASHER
€ 3.50
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8
2426147000
ref: 8
GEAR,SIXTH DRIVE
€ 80.50
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10
0938025010
ref: 10
CIRCLIP
€ 3.00
11
0926225051
ref: 11
BEARING(25X62X17)
€ 59.50
12
0939062006
ref: 12
C-RING
€ 5.00
13
0926320029
ref: 13
BEARING
€ 38.00
14
0422107129
ref: 14
PIN
€ 1.50
15
2474144000
ref: 15
PLATE,COUNTERSHAFT BEARING
€ 9.50
16
0212206168
ref: 16
SCREW
€ 2.00
17
2410044810
ref: 17
SHAFT,DRIVE
€ 125.00
18
2431047000
ref: 18
GEAR,FIRST DRIVEN
€ 82.50
19
0821120341
ref: 19
WASHER
€ 2.00
20
2432044002
ref: 20
GEAR,SECOND DRIVEN
€ 79.50
21
0821125321
ref: 21
WASHER
€ 3.00
22
0938025010
ref: 22
CIRCLIP
€ 3.00
23
2433047000
ref: 23
GEAR,THIRD DRIVEN
€ 62.00
24
0916725012
ref: 24
WASHER,LOCK
€ 3.50
25
0916725013
ref: 25
WASHER,LOCK
€ 2.50
26
0938025010
ref: 26
CIRCLIP
€ 3.00
27
2434047000
ref: 27
GEAR,FOURTH DRIVEN
€ 72.50
28
0916725012
ref: 28
WASHER,LOCK
€ 3.50
29
0916925001
ref: 29
WASHER
€ 2.00
30
0938025010
ref: 30
CIRCLIP
€ 3.00
31
2435147001
ref: 31
GEAR,FIFTH DRIVEN
€ 88.50
32
2436147000
ref: 32
GEAR,SIXTH DRIVEN
€ 107.00
33
0939062005
ref: 33
C-RING
€ 5.00
34
0928332014
ref: 34
OIL SEAL
€ 15.50
35
0926320028
ref: 35
ROLLER BEARING (20X34X1
€ 34.00
36
0928232002
ref: 36
SEAL,OIL(32X62X5.5)
€ 11.50
37
2751147000
ref: 37
SPROCKET,ENGINE
€ 27.50
38
0914020009
ref: 38
NUT
€ 9.00
39
0916725011
ref: 39
WASHER
€ 2.50
40
2760047010
ref: 40
CHAIN ASSEMBLY,DRIVE
€ 277.50
